Vacon NXP series User Manual

3
vacon • 36 Descriptions of VACON® option boards
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
Usage: Closed Loop Vector Control, positioning applications. The OPTA7 encoder board is mainly
used in demanding system applications, e.g. when measuring the motor speed with two encoders.
24V
15V
24V
15V

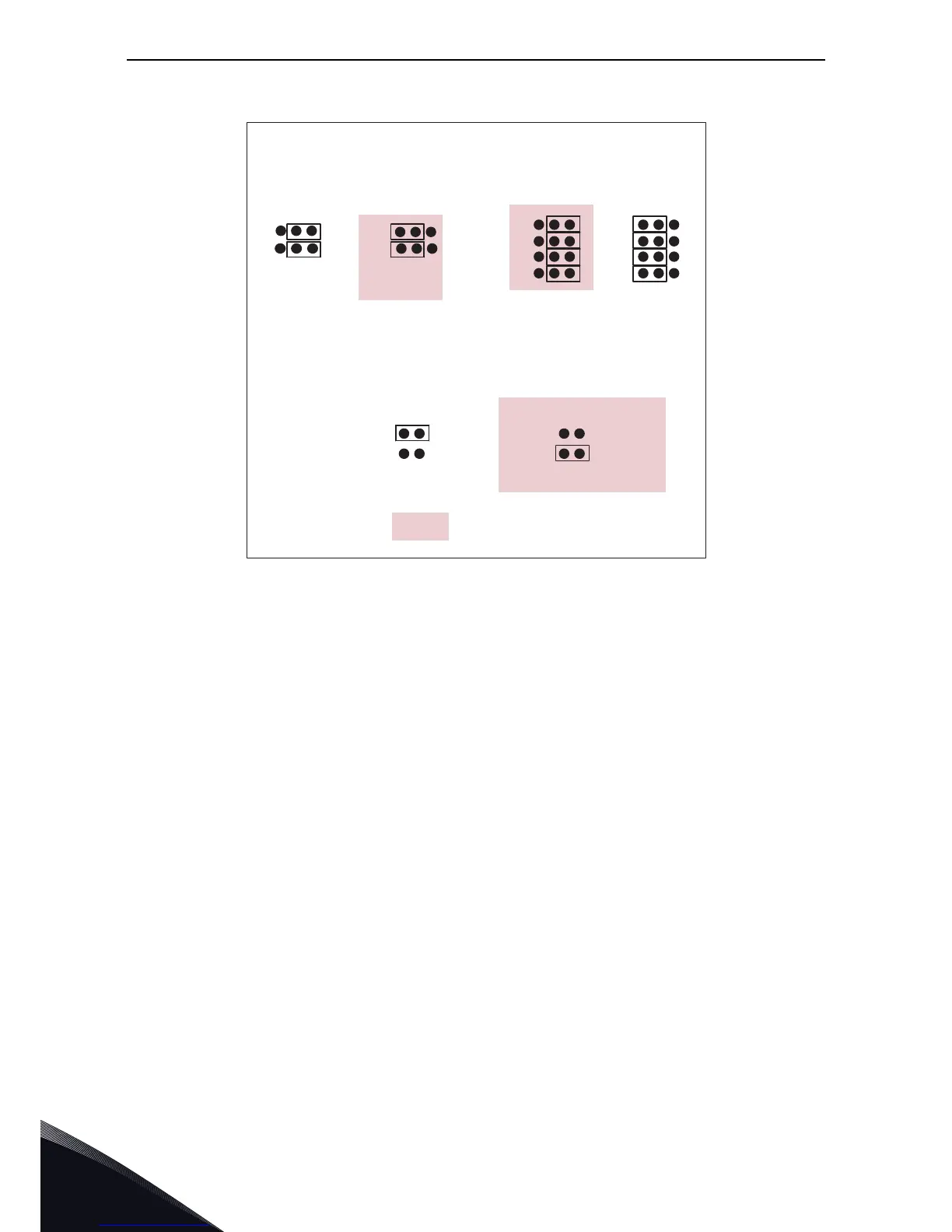

Jumper block X4:
Auxiliary voltage level
Auxiliary voltage +24V Auxiliary voltage +15V
= Factory default
Jumper block X5:
Encoder channel
Channel DIC
selected
Channel DID
selected
Master function
selected
Slave function
selected
Jumper blocks
X15 and X16:
Master/Slave
function
7259A_uk
X5 X5
X16X15 X16X15

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
