Vacon NXP series User Manual

Descriptions of VACON® option boards vacon • 55
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
Jumper selections
On the OPTB1 board, there are two jumper blocks. The jumper block X2 is used to define the
bidirectional terminal as either input or output. The other jumper block, X4, is used to connect the
common terminals to GND. The factory default and other available jumper selections are presented
below.

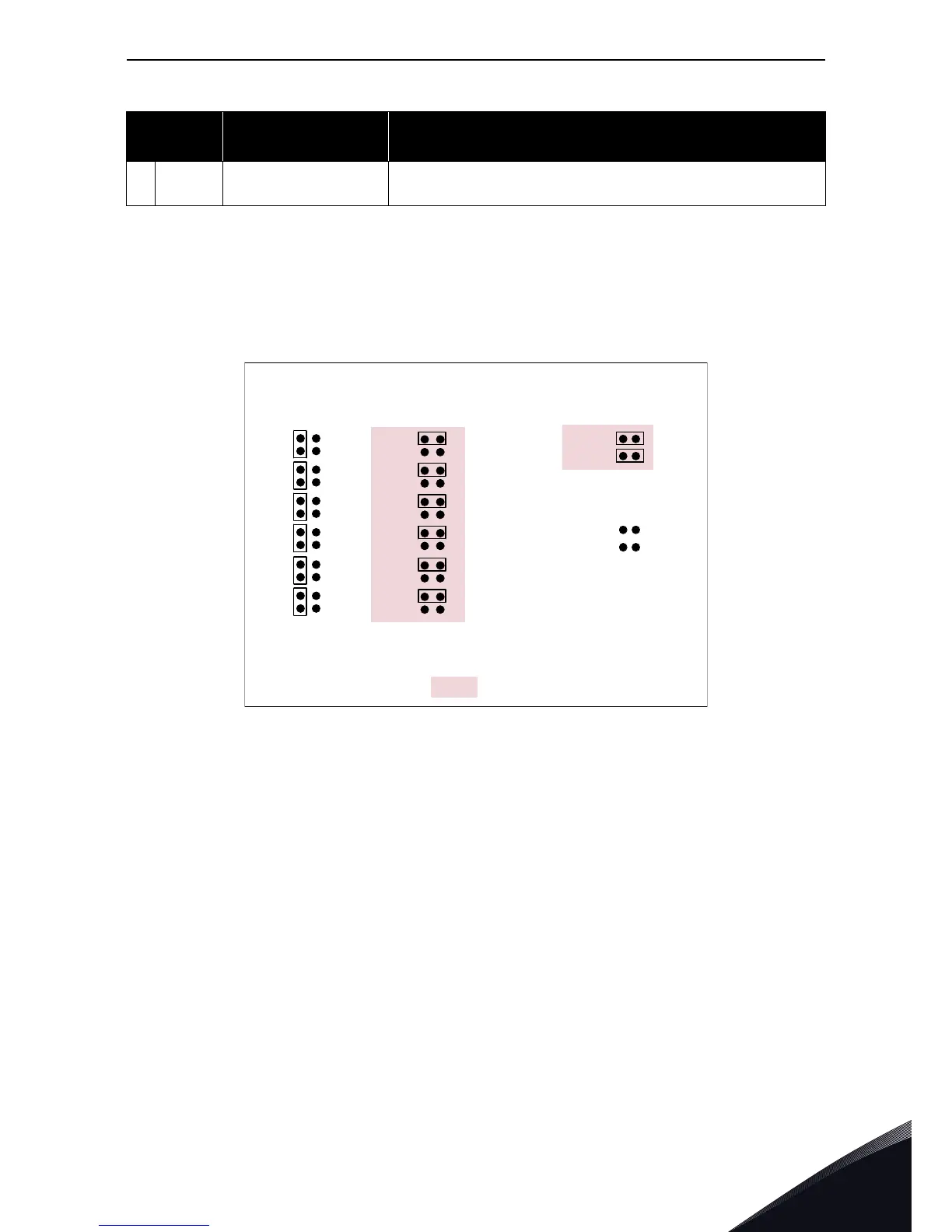

Figure 23. Jumper positions for OPTB1
10
+24V
Control voltage output; Voltage for switches etc.;
max. current 150mA; Short-circuit protected.
Table 24. OPTB1 I/O terminals
Terminal
Parameter reference
Keypad/NCDrive
Technical information
DIO 1
DIO 2
DIO 3
DIO 4
DIO 5
DIO 6
DIO1 to DIO6
mode O UT
DIO 1
DIO 2
DIO 3
DIO 4
DIO 5
DIO 6
DIO1 to DIO6
mode IN
=
Fa c to r y d ef a u l t
CMA and CMB
connected to GN D
CMA
CMB
CMA
CMB
CMA and CMB
floating
Jumper block X 2:
DIO mode
Jumper block X 4 :
CMA/ CMB connection
to GND
7274.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
