Vacon NXP series User Manual

Descriptions of VACON® option boards vacon • 61
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
OPTB8 accuracy
The following table represents the results of accuracy measurements in laboratory environment. In
the tests we used Draga JAMAK cable. The testing covered different sensor setups.
NOTE: Because of accuracy reasons OPTBH is recommended for newer installations. Please note
that using of OPTBH requires support from NX application.
Connection of PT100 sensors
One PT100-sensor can be connected to the first two inputs (terminals 1 to 3 and 4 to 6) and up to
three sensors to the third input (terminals 7 to 9). The sensors must be connected in series with a
two- or three-wire connection. See Chapter Jumper selections below.
NOTE:
• This expander board can be placed into four different slots on the control board. Therefore,
the 'X' given in the Parameter reference must be replaced by the slot letter (B, C, D, or E)
depending on the slot which the expander board is plugged into. See chapter 1.7.
• Insulation level 4kV/sqrt(2) (DIN VDE 01 10-1). 2kV in sensor and 2kV in option board.
10 NC Not connected
Table 29. PT100 accuracy for OPTB8
Cable length (m) 3-wire 2-wire Accuracy (°C)
300 x -20 < x < 8
150 x -13 < x < 3
50 x -8 < x < 2
50 x -10 < x < 10
Table 28. OPTB8 I/O terminals
Terminal
Parameter reference
Keypad/NCDrive
Technical information
R+
R
m
R-
R+
R-
R+
R
m
R-
R+
R-

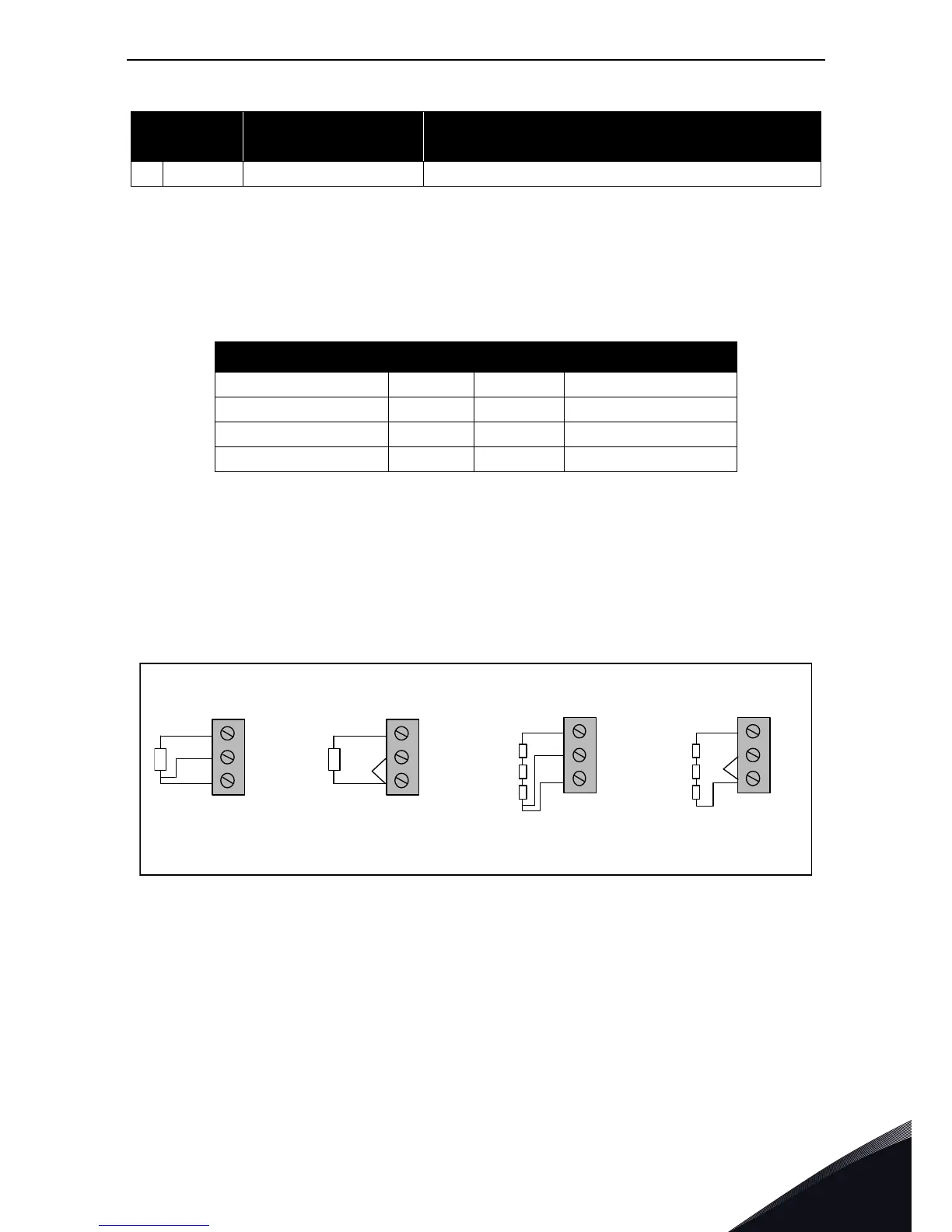

3-wire connection 2-wire connection
Connection of one sensor
3-wire connection 2-wire connection
Connection of several sensors
7279.emf

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
