vacon • 74 Descriptions of VACON® option boards
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
I/O terminals on OPTD2
Jumper selections
There are four jumper blocks on the OPTD2 board. The factory defaults and other available jumper
selections are presented below.

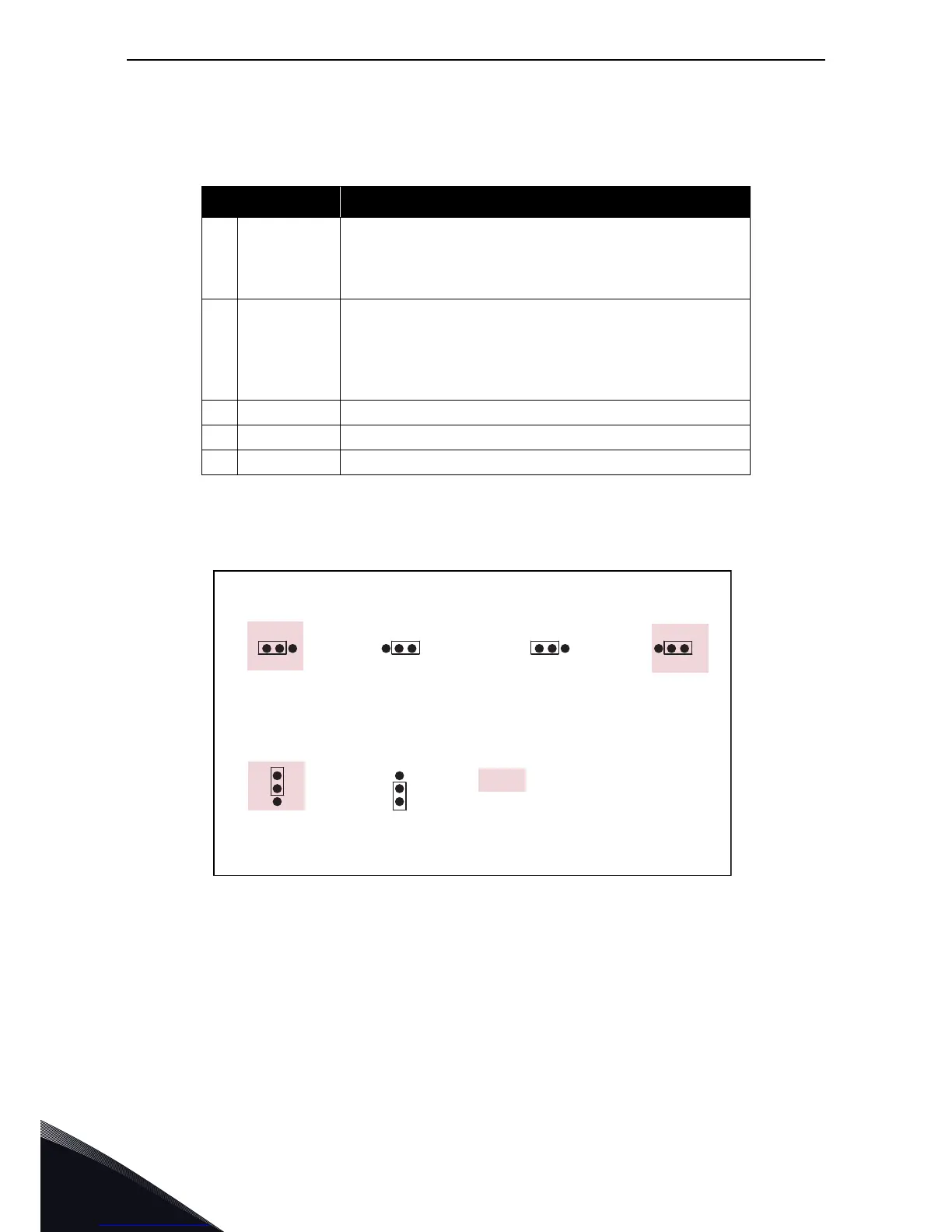

Figure 25. Jumper selections for OPTD2, up to version G
Table 41. OPTD2 I/O terminals
Terminal Technical information
1
H1
System Bus optical input 1 (RX1)
Use 1-mm optical cable (e.g. Agilent HFBR-RUS500 &
HFBR-4531/4532/ 4533 connectors)
NOTE: Not available if the board is placed in slot B
2
H2
System Bus optical output 1/2 (TX1/TX2);
Selected with jumper X5
Use 1-mm optical cable (e.g. Agilent HFBR-RUS500 &
HFBR-4531/4532/4533 connectors)
NOTE: Not available if the board is placed in slot B
21 CAN_L Monitor Bus negative data
22 CAN_H Monitor Bus positive data
23 CAN_SHIELD Monitor Bus shield
Jumper block X3:
CAN grounding
Connected to shield Not connected to shield
Jumper block X4:
CAN termination
Terminated Not terminated
Jumper block X5*:
System bus output
Output TX1 Output TX2
= Factory default
*If the board is placed in slot B the SystemBus
is not available. Remove jumpers X5 and X6.
7287A_uk

Vacon NXP series Specifications

General

Communication interfaces	RS-485, Ethernet
Storage temperature range	-40°C to +70°C
Dimensions	Varies by model
Weight	Varies by model
Product series	NXP
Voltage range	200 V to 690 V
Input voltage range	200 V to 690 V
Frequency range	0 Hz to 500 Hz
Control method	Vector control
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Enclosure classes	IP21, IP54
Braking chopper	Built-in or external
EMC filter	Built-in or external
Communication protocols	Modbus, Profibus, CANopen, Ethernet
Operating temperature range	-10°C to +50°C
Humidity range	5% to 95% (non-condensing)
Cooling method	Air-cooled or liquid-cooled
