3.4.2 Fixing the cabinet to the floor or wall
In installations where the cabinet is mounted against the wall, fix the top of the cabinet to the wall
(1) and the front corners to the floor (2) with bolts.
If bottom-only fixing is used, fix the cabinet to the floor in the front (2) and back (3) with bolts.
Fix all cabinet sections in the same way.

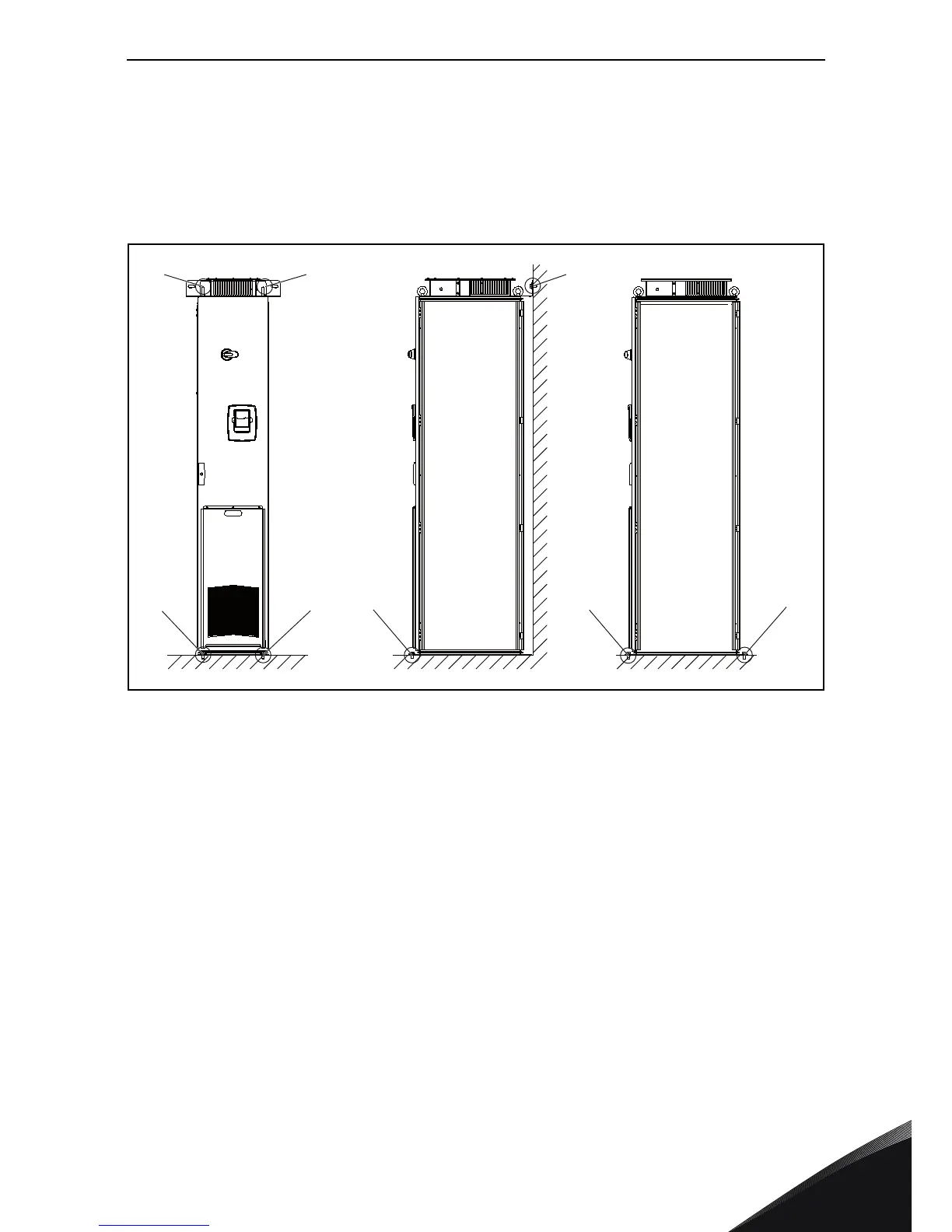

Figure 13. Fixing the cabinet to the wall and floor
2 2 2
1
1
1
2
3
13861_00
