vacon • 32 Installation
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205
3.5.2 Common busbars
The busbars are located in the back of the cabinets. To access them, it might be necessary to take
out the drives. See the instructions in Chapter 4.3.
Join together the PE busbars and DC busbars by bolting them together with baying brackets.

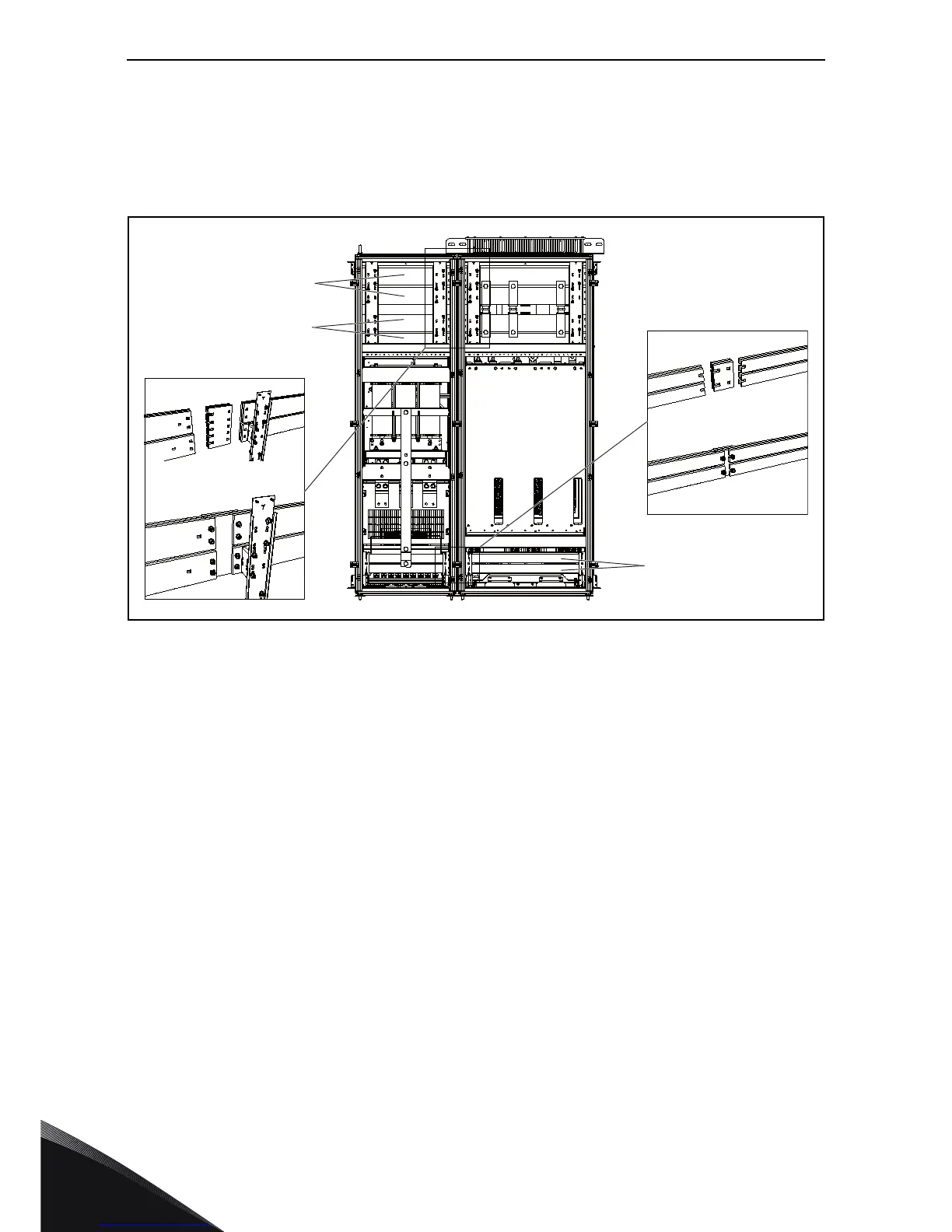

Figure 16. Connecting the common DC and PE busbars
DC+
DC-
PE
13864_00
