4.3 Removing the drives from the cabinet
4.3.1 IUS_4 / IUS_6
Servicing is only permitted to be carried out by Vacon-trained service personnel!
1
Open the cabinet door.
2
Disconnect all cables from the drive. See Chapter 3.6.
3
Release the drive assembly. Remove the four M8x20 bolts (tightening torque 20Nm).

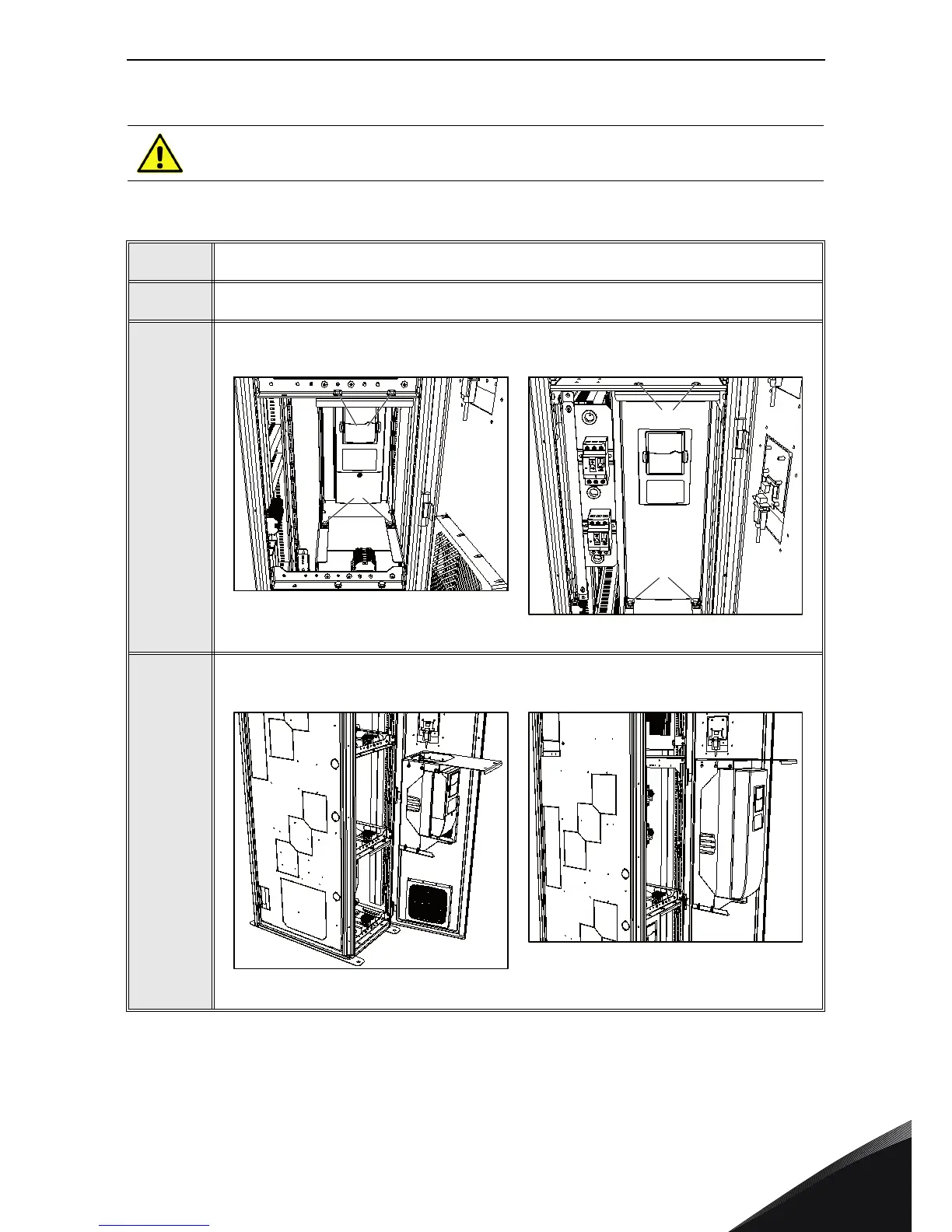

Figure 25. Drive assembly mounting bolts (X) in IUS_4 (left) and IUS_6 (right)
4
Pull out the drive assembly.
Figure 26. Pulling the drive assembly in IUS_4 (left) and IUS_6 (right)
