Vacon NXP Hardware Manual

6
vacon • 72 Supplied documentation
Tel. +358 (0) 201 2121 • Fax +358 (0)201 212 205
6.1.4 Circuit diagram

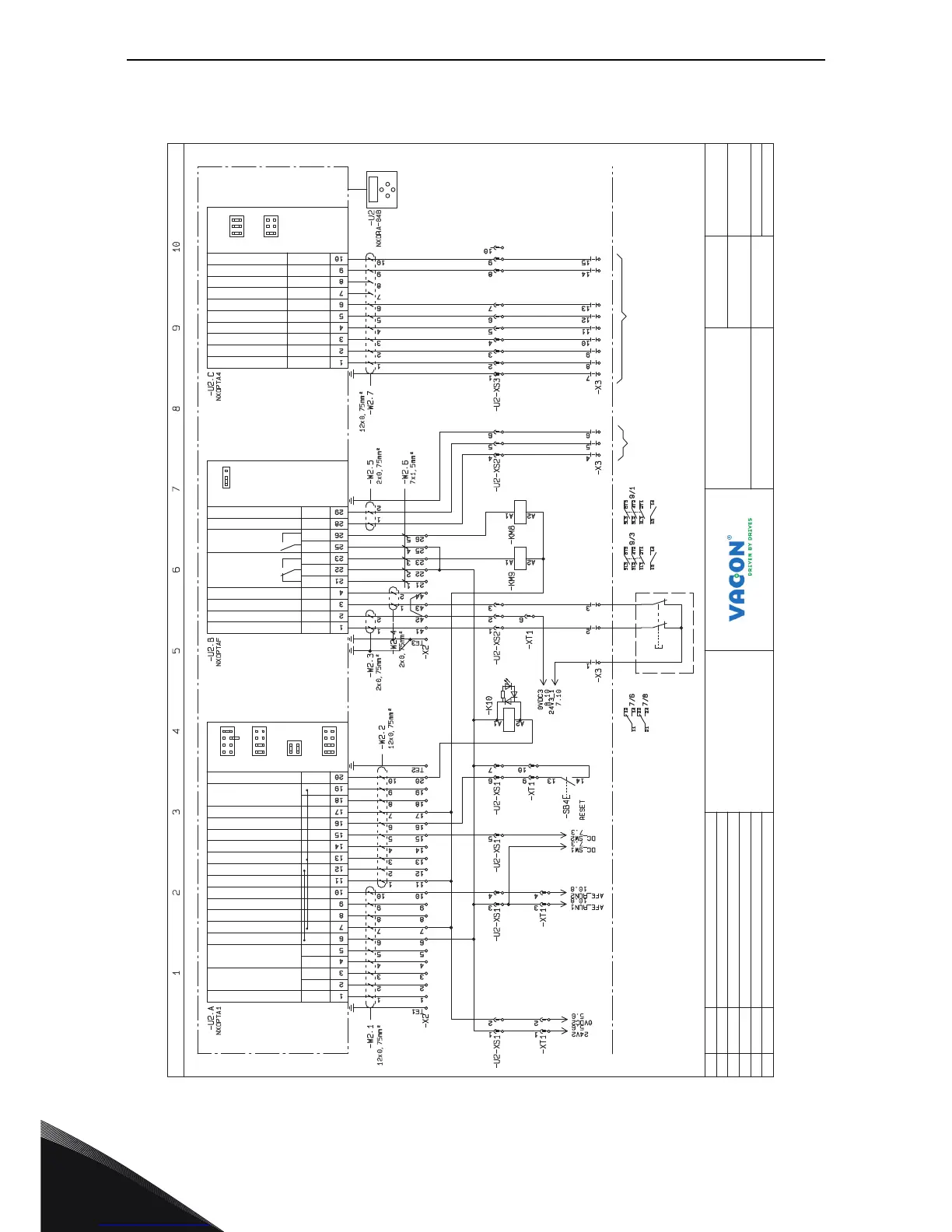

Figure 52. Example: circuit diagram
PA GES IN CHA PTER PROJ. REV ISION
DA TE
PA G E
REASONS FOR ISSUINGREV .
PAGE DESIGNATION
RIFA S ID
TITLE
INU OPT BOAR D
CIRCUIT DIAGRAM
VACON ID
PA NEL B UIL DER FC S UPPLIER
TO MOTOR ENCODER
PTC
EXTERNAL FAULT
OR RUN ENABLE
FIELD CA BINET
DC SWITCH
STATUS
+10V ref Reference output
AI1+
Selection V or mA by X1
AI1-
AI2+
AI2-
+24V 24VDC (bidirectional)
GND I/O ground
DIN1 Digital input 1
DIN2 Digital input 2
DIN3
Digital input 3
CMA Common for DIN1-DIN3
+24V
Selection V or mA by X2
24VDC (bidirectional)
GND
I/O ground
DIN4 Digital input 4
DIN5 Digital input 5
DIN6
Digital input 6
CMB Common for DIN4-DIN6
AO1+ Analogue output
DO1 Open colector output
AO1-
X1
ABCD
X2
ABCD
X3 X6
ABCD
Analogue input 1
Analogue input 2
Selection V or mA
SD1+ Isolated Safe Disable input 1
SD1-
Virtual GND 1
SD2+
SD2-
X10
ON OFF
R01
R01
R01
R02
R02
TI+ Thermistor input
TI- Thermistor input
Relay output 1 (NO/NC)
Relay output 2 (NO)
Isolated Safe Disable input 2
Virtual GND 2
DIC1A+ Pulse input A
DIC1A- Pulse input A
DIC2B+
DIC2B-
DIC2Z+
DIC2Z- Pulse input Z
ENC1Q
DIC4
GND
Ground
+5/+15/+24V Control voltage
Pulse input B
Pulse input B
Pulse input Z
X2
CBA
X4
24V
15V
5V
Black
PRE-CHARGE
COMPLETE
13894_00
