Vaillant TURBOmax Plus SERIES - Fitting the Boiler Hanging Bracket; Install the Flue System; Fitting the Boiler

3
320
131
22
26,5
27
131
105
105
1
2
Euro B/S 091/0
21
BOILER INSTALLATION SEQUENCE

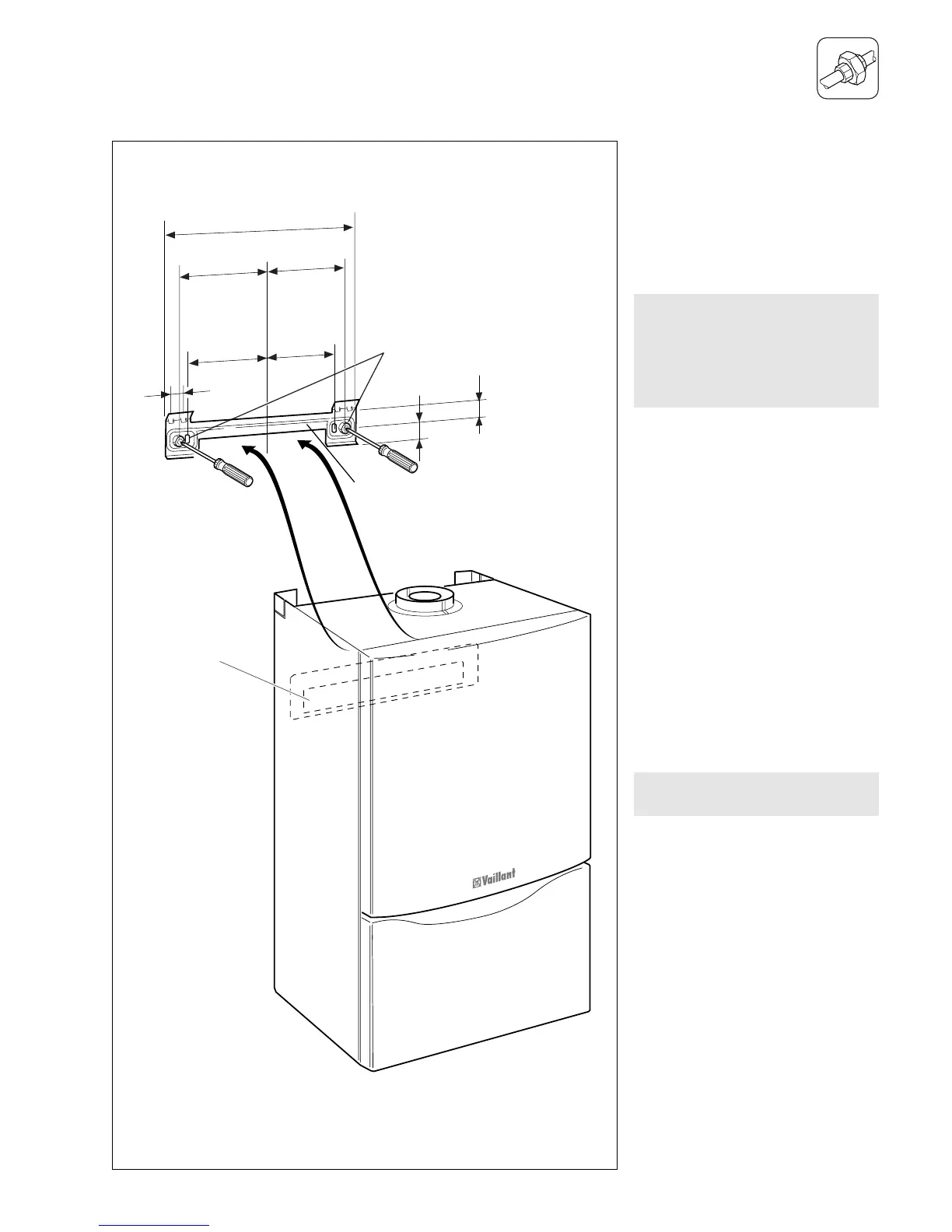

Fig. I.4: Fitting the boiler
Fitting the boiler
● Lift the boiler (3) up to the wall so
that it is slightly above the hanging
bracket (1).
● Lower the boiler slowly onto the
hanging bracket so that the cross
member at the rear of the boiler
fully engages onto the hanging
bracket.
Note: Lift the boiler from either side
at the bottom edge.
Install the flue system
Install the flue system (refer to
separate air/flue duct installation
instructions).
Fitting the boiler hanging
bracket
Fix the hanging bracket (2) to the wall
using the screws supplied. (it may be
necessary to use additional or
alternative fixings to ensure adequate
support).
Note: If the boiler is to be fitted in a
timber framed building ensure that
the bracket is secured to a
substantial part of the timber frame
capable of taking the weight of the
boiler.
