Vaillant TURBOmax Plus SERIES User Manual

67
PARTS REPLACEMENT
Automatic bypass
● Refer to the important information
and initial preparation on page 59.
● Release central heating water
pressure.
● Remove spring clip (2)
● Undo union (1), remove
bypass/connecting pipe.
● Pull apart bypass and connecting
pipe.
● Re-assemble in reverse order.
3
2
1

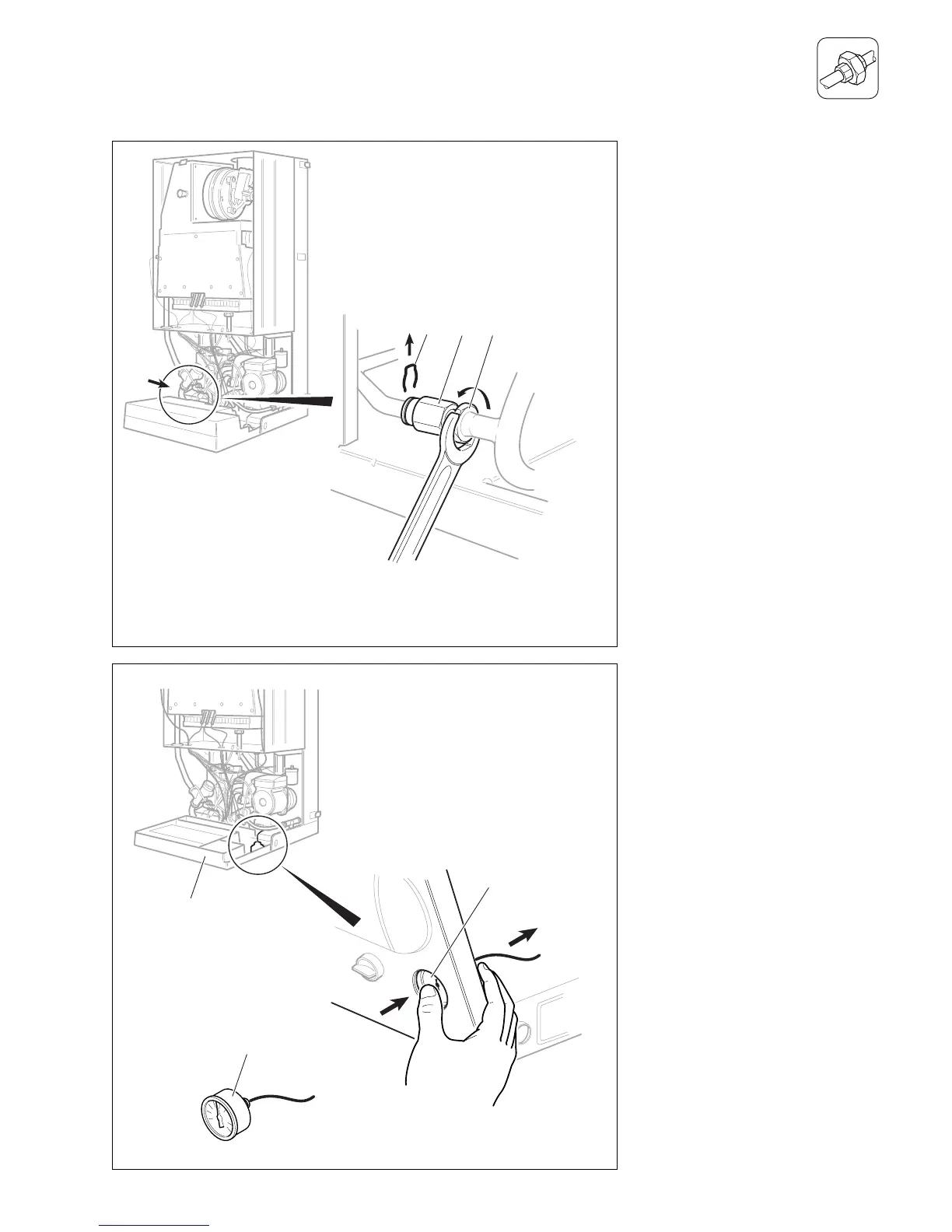

Fig. E.14: Automatic Bypass
Euro B/S 169/0
☞ picture shows a
TURBOmax Plus
boiler
2
2
1
Fig. E.15: Pressure gauge
Euro B/S171/0
Pressure gauge
● Refer to the important information
and initial preparation on page 59.
● Release central heating water
pressure.
● Pull out the four retaining clips and
remove the pressure gauge from
fascia.
● Remove retaining clip and
disconnect pressure gauge
capillary tube.
● Re-assemble in reverse order.
☞ picture shows a TURBOmax Plus boiler

Vaillant TURBOmax Plus SERIES Specifications

General

Category	Boiler
Modulation	Yes
Model	TURBOmax Plus SERIES
Fuel type	Natural gas
Mounting	Wall-mounted
Heating Circuit	Single
Output	24kW, 28kW
Warranty	2 years (extendable)
