BOILER INSTALLATION SEQUENCE
Cold water mains inlet
and hot water outlet
(TURBOmax Plus)
Flush all foreign matter from the mains
supply before connecting to the
boiler.
● Connect the cold water service
valve (1) to the cold inlet water
connection (3) of the appliance
with the washer (2) provided and
tighten.
● Connect the 15 mm cold water
inlet pipe copper tail (4) to the cold
water service valve (1) and tighten.
● Connect the 15 mm hot water
outlet copper tail (6) to the hot
water outlet connection of the
appliance (8) with the washer
provided (7) and tighten.
Note: The hot water outlet union
nut is packed in with the PRV fitting
pack.
● Connect the cold water service
pipe and hot water outlet pipework
to the copper tails.
1
2
3
4
6
7
8
I
0
Euro B/S 045/0GB_Plus

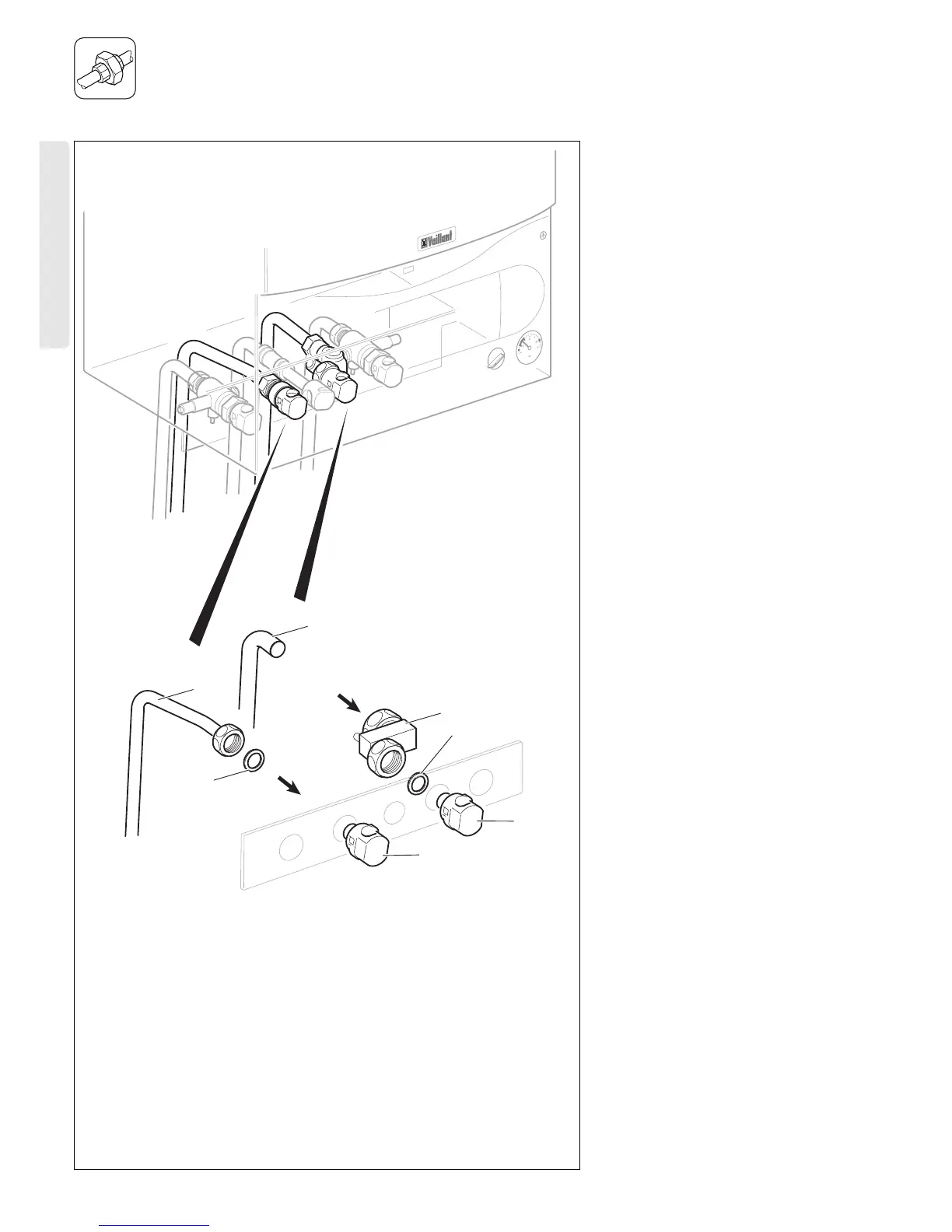

Fig. I.7: Fitting the hot and cold water connections TURBOmax Plus
