Vaillant TURBOmax Plus SERIES User Manual

8
BOILER SPECIFICATION
Key:
1 Heating system return
(22 mm tail)
2 Cold water connection with shut
off valve (15 mm tail)
3 Gas connection (15 mm tail)
4 Hot water connection
(15 mm tail)
5 Heating system flow
(22 mm tail)
6 Flue outlet (100 mm flue with
turret)
7 Hanging bracket
8 Rear flue outlet
Boiler connections
(TURBOmax Plus)
7
543 21
148
6
8
310
592
145
6
5
100100
35 35
432
130
180
1

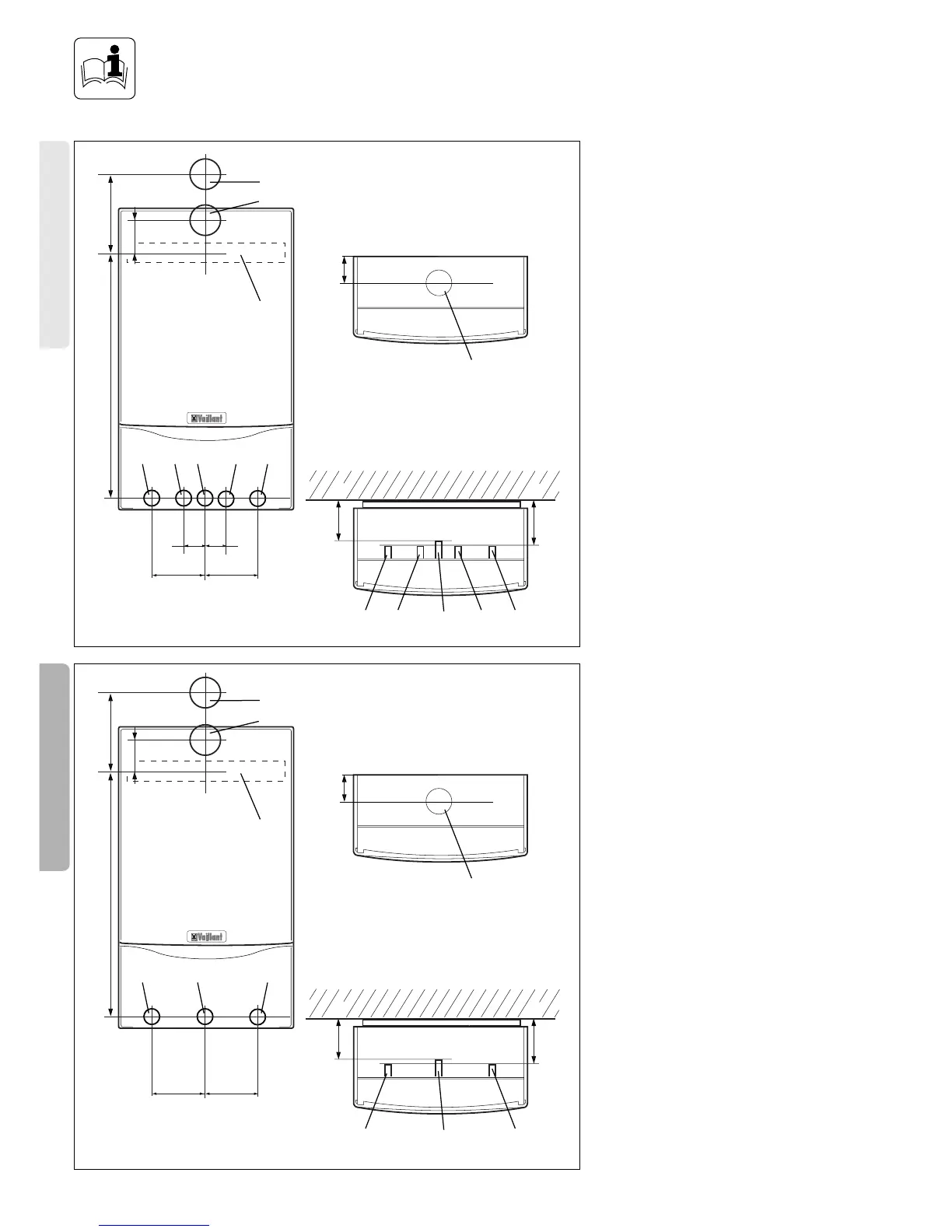

Fig. B.1: Connection diameters TURBOmax Plus
Euro B/S 090/2
Key:
1 Heating system return
(22 mm tail)
2 Gas connection (15 mm tail)
3 Heating system flow
(22 mm tail)
4 Flue outlet (100 mm flue with
turret)
5 Hanging bracket
6 Rear flue outlet
Boiler connections
(THERMOcompact)
5
32 1
148
4
6
310
592
145
4
3
100100
2
130
180
1
Fig. B.2: Connection diameters THERMOcompact
Euro B/S_VC_009/2
TURBOmax Plus THERMOcompact

Vaillant TURBOmax Plus SERIES Specifications

General

Category	Boiler
Modulation	Yes
Model	TURBOmax Plus SERIES
Fuel type	Natural gas
Mounting	Wall-mounted
Heating Circuit	Single
Output	24kW, 28kW
Warranty	2 years (extendable)
