BOILER INSTALLATION SEQUENCE
4
5
I
0
I
0
90°90°
3
2
1
Fit boiler casing
● Carefully push case (1) onto the
boiler such that the locating points
either side at the top of the boiler
engage. Push the casing onto the
securing clips at the bottom of the
boiler.
● Close control panel (2).
● Secure control panel by turning
both securing fasteners (3)
clockwise by 90°.
● Fit and close front door (4).
● Fit lower cover plate (5) using the
screws supplied.

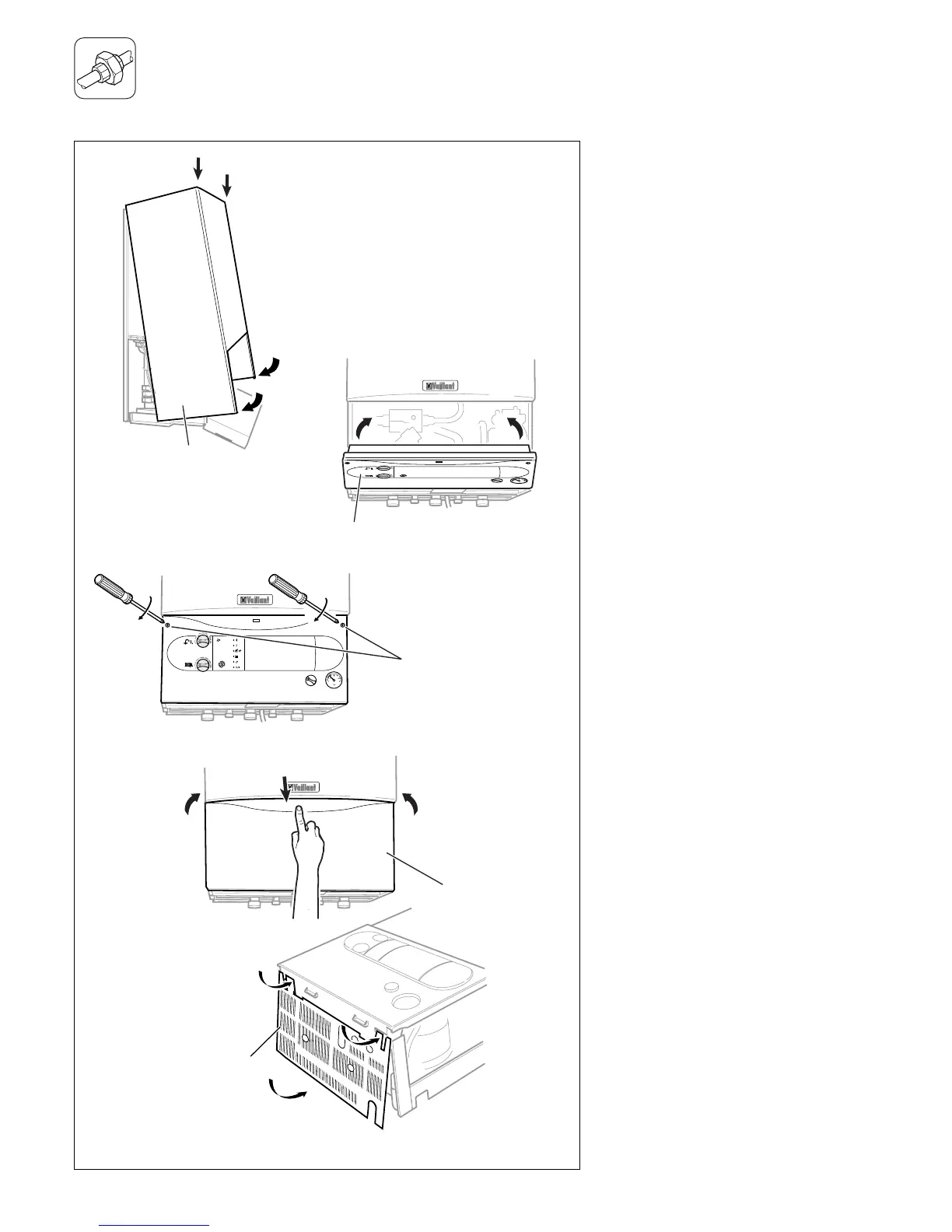

Fig. I.21: Fit boiler casing
Euro B/S 098/1
