BOILER INSTALLATION SEQUENCE
Removing boiler casing
● Turn both securing fasteners (1)
anti-clockwise by 90° to release
control panel (2).
● Pull the case (3) forward at the
bottom to disengage from the
securing clips.
● Lift the case slightly to clear the top
locations and pull forward to
remove.
VRC-VC
3
I
0
2
I
0
90°90°
1

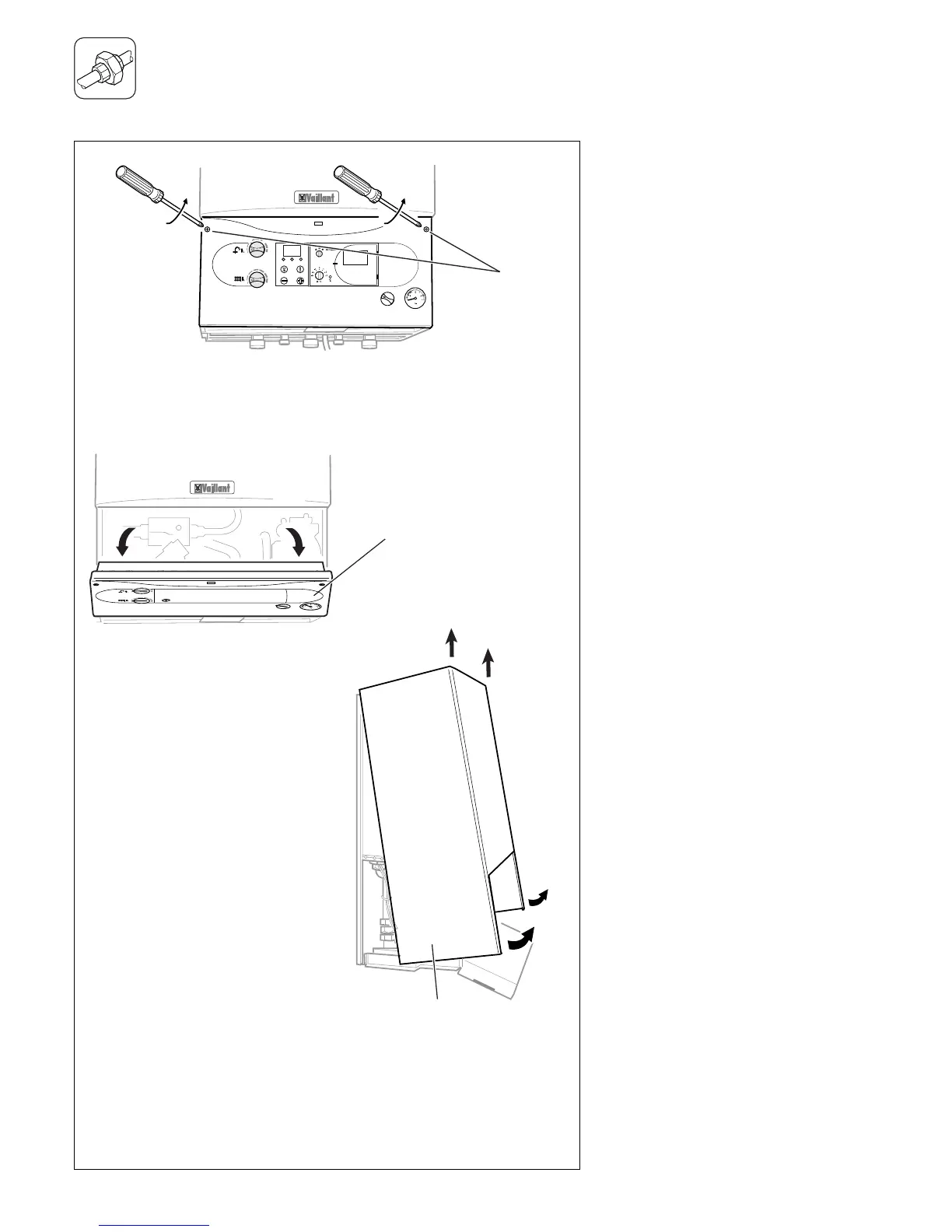

Fig. I.5: Remove of boiler casing
Euro B/S 087/1
☞ picture shows TURBOmax Plus
