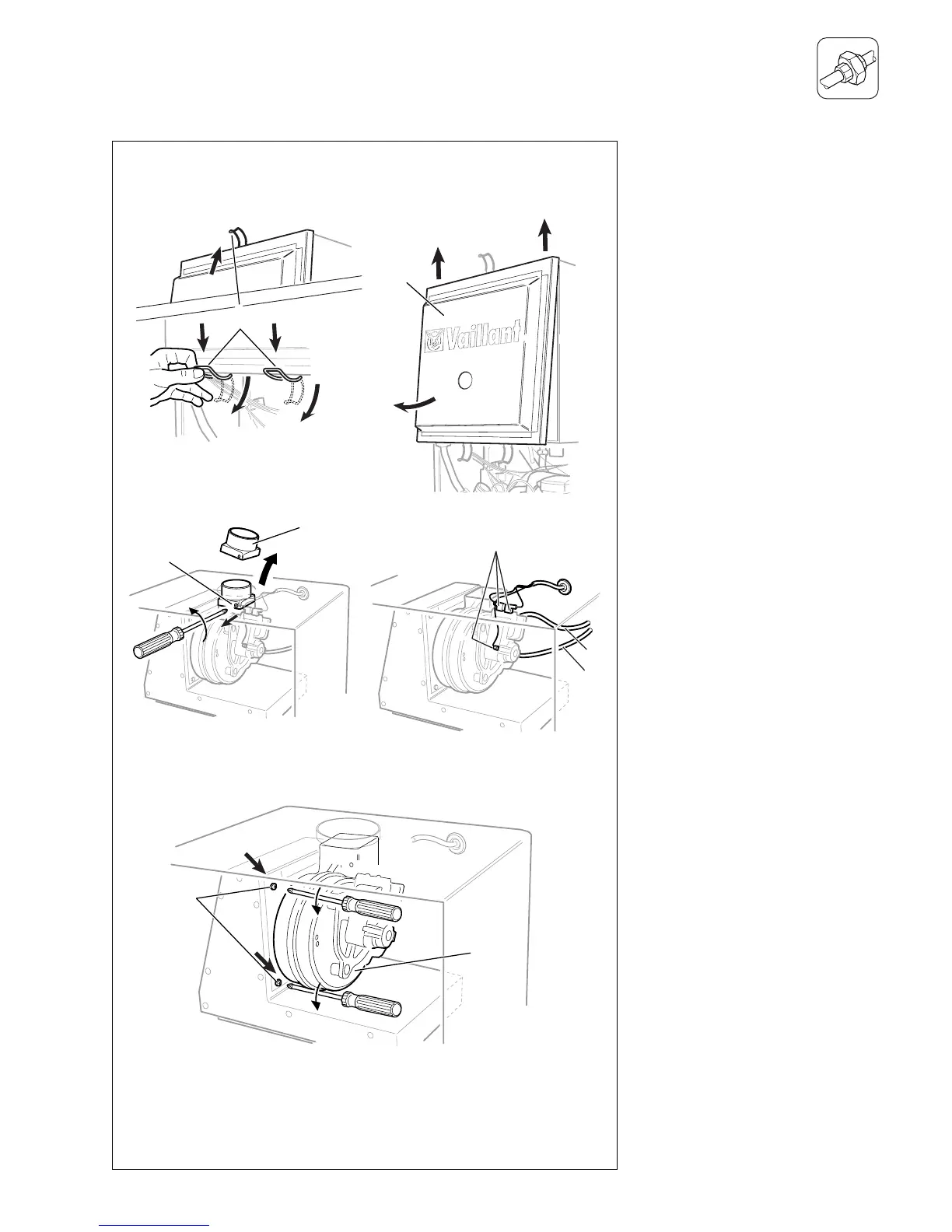

Fig. E.4: Fan
Euro B/S 162/0
Fan
● Refer to the important information
and initial preparation on page 59.
● Remove combustion chamber cover
by unclipping the three clamps (1).
● Remove the screw (3) and push the
flue connector (4) upwards until it
clears the fan outlet (when the
boiler is installed with a rear outlet
flue system push the flue connector
(4) towards the rear of the boiler
until it clears the fan outlet).
● Disconnect the electrical
connections (5) and the air tubes (6
and 7) from the fan. Note the
respective connection points for
each tube.
● Remove two screws (8) and remove
the fan (9).
● Reassemble in reverse order,
ensuring that the air tubes are
reconnected to the correct nipple.
● Re-fit combustion chamber cover
and front casing.
