Note
Check whether the product cas-
ing has been installed correctly.

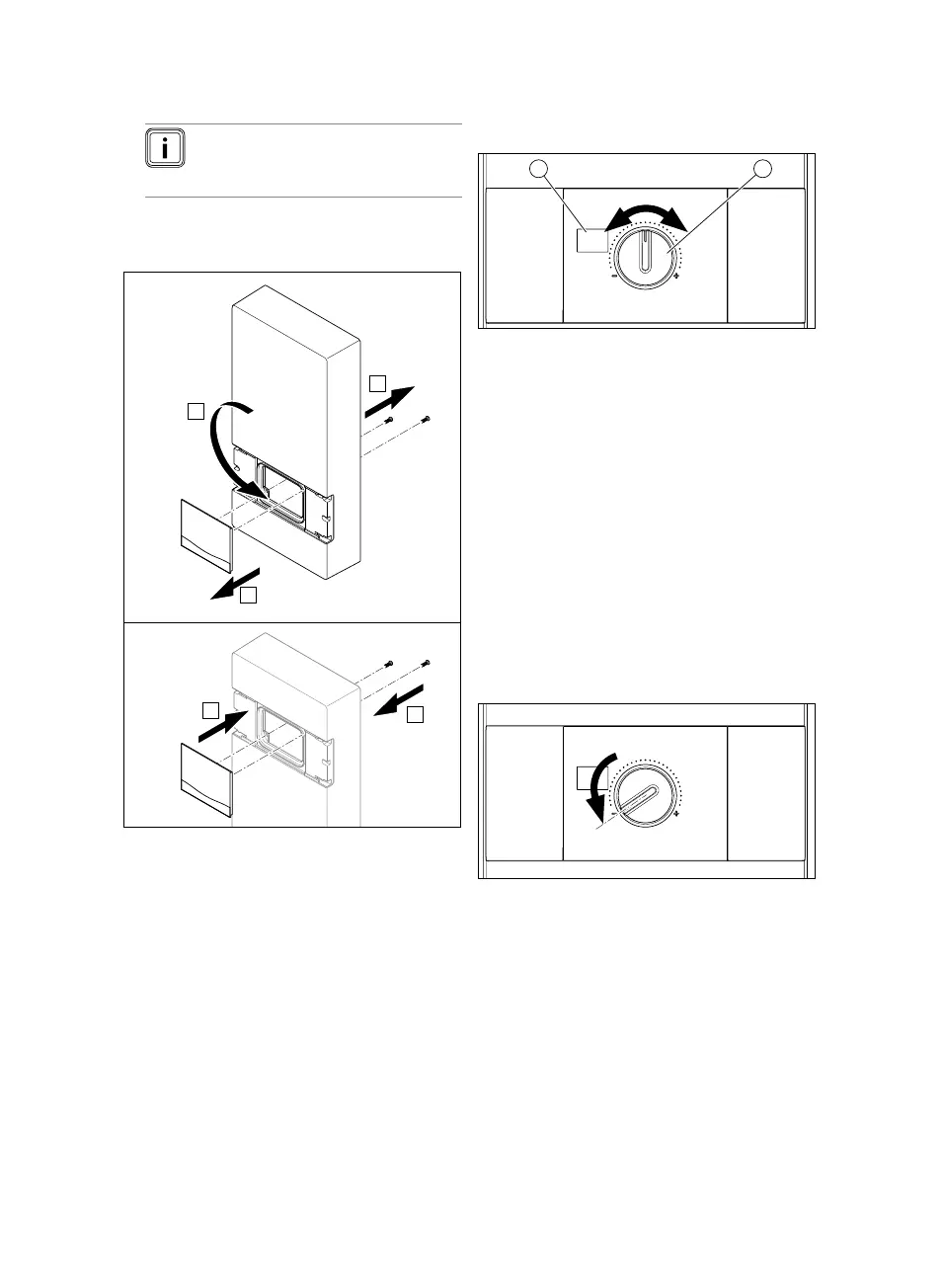

6.3 Attaching the product casing
so that it is rotated by 180°
▶ Remove the control panel from the
product casing.
▶ Turn the product casing by 180°.
▶ Install the control panel in the product
casing.
▶ Attach the product casing. (→ Page 40)
6.4 Checking the function
1. Connect the product to the power grid
(switch on the circuit breaker).
2. Check the product's power while water
is running at a draw-off point.
3. Turn the temperature selector (2)
from warm (left-hand stop = ap-
prox. 30 °C) to hot (right-hand stop =
approx. 55 °C).
4. Observe the temperature display (1).
6.5 Activating the scald protection
function
1. Disconnect the product from the power
supply.
2. Remove the product casing
(→ Page 36).
3. Turn the temperature selector as far as
it will go in an anti-clockwise direction.
