Wiring
Table 4 Standard Wiring Pinouts and Wire Colors
Pin
Connector I
Connector II
Wire color
1
VDC supply+
VDC supply+
Brown
2
Signal Ch 1+
RS-485 - / B
White
3
GND
GND
Blue
4
Signal Ch 2+ / LED
RS-485 + / A
Black
0707-035

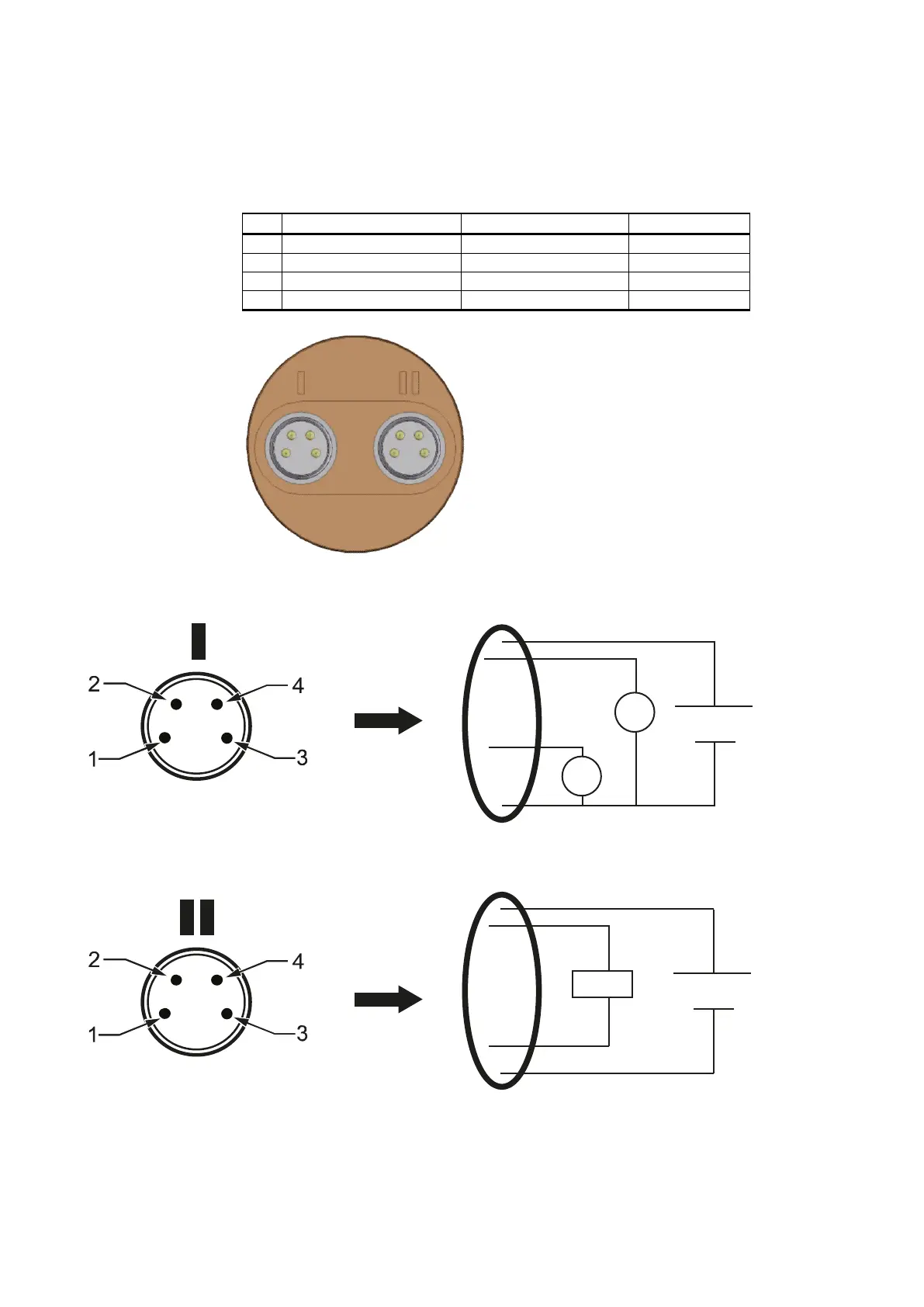

Figure 6 Connectors I and II
1701-066
Figure 7 Connector Pinout
+
-
Vs
1
3
+
-
V/mA
4
+
-
V/mA
2
+
-
Vs
1
3
+ / A
4
2
RS485
- / B
