Vaisala DMT152 - Figure 18 Alternative Assembly of DSC74 C (for Tight Spaces)

Chapter 4 ________________________________________________________________ Installation
VAISALA ________________________________________________________________________ 29
0403-113

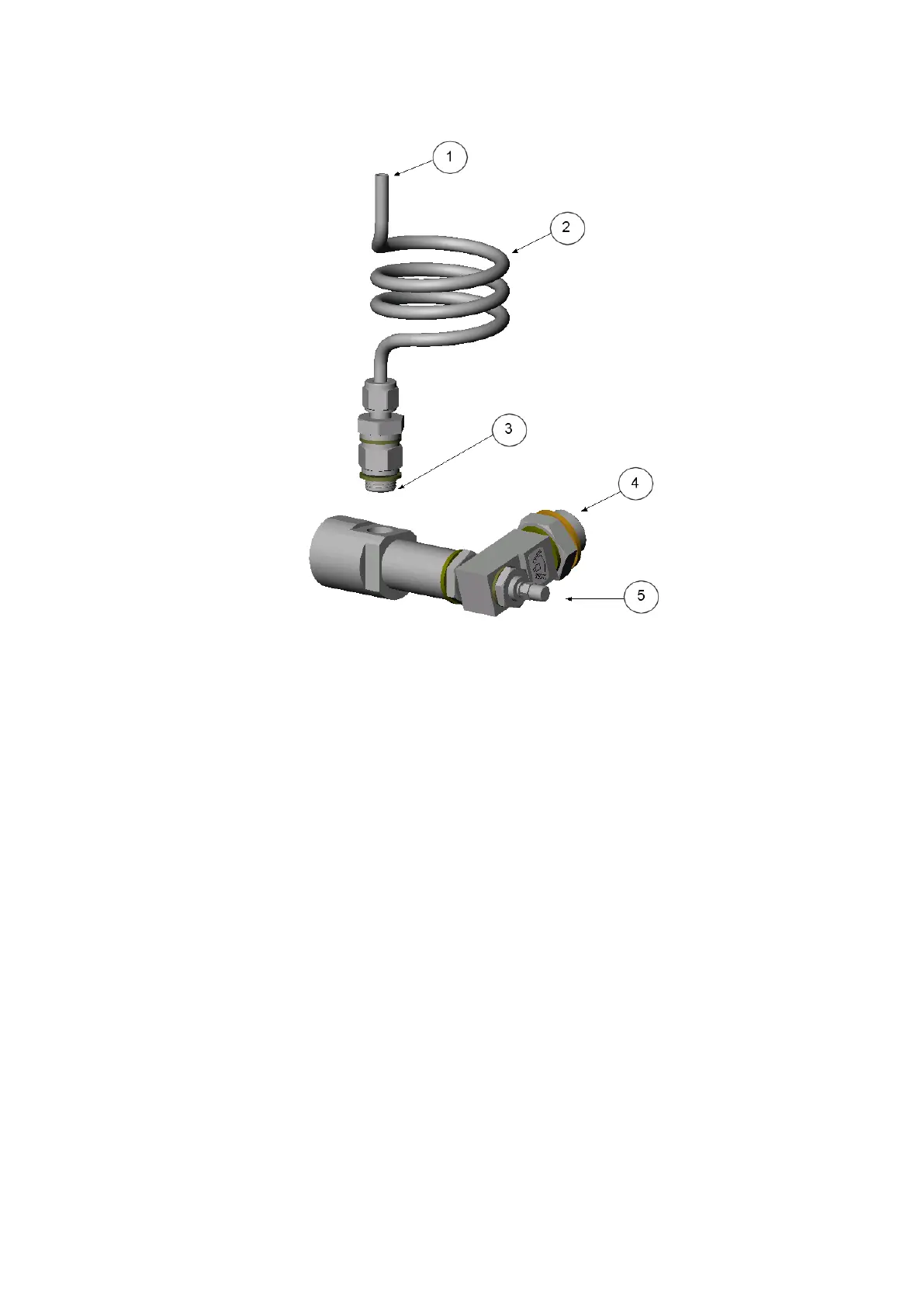

Figure 18 Alternative Assembly of DSC74C (for Tight Spaces)
1
=
Gas comes out
2
=
Coil
3
=
Thread, max. size 7 mm
4
=
Gas goes in
5
=
Valve
The thread size cannot exceed 7 mm. Use the provided adapter to avoid
damage to the probe.
