Vaisala WXT536 - Replacing the PTU Module; Figure 39 Replacing PTU Module

User’s Guide ______________________________________________________________________
164 _________________________________________________________________ M211840EN-C
Replacing the PTU Module
To replace the PTU module:
1. Turn the power off. Loosen the three mounting screws at the
bottom assembly of the transmitter and pull them out.
1509-082

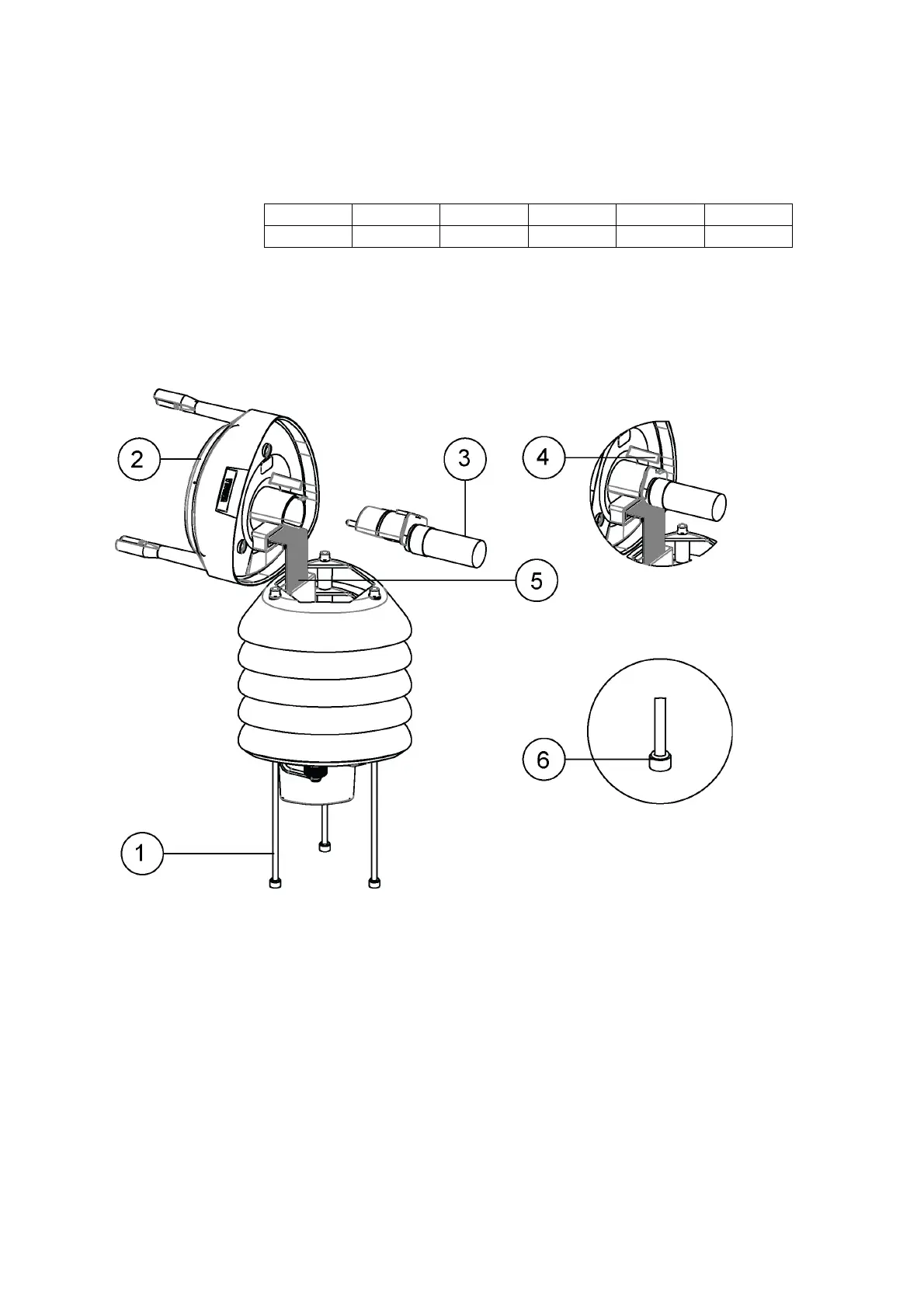

Figure 39 Replacing PTU Module
WXT536 WXT535 WXT534 WXT533 WXT532 WXT531
XXX
1 = Fixing screws
2 = Top of transmitter
3 = PTU module
4=Latch
5 = Flat cable
6=O-ring
