Vaisala WXT536 - Figure 45 Mounting Kit Dimensions

User’s Guide ______________________________________________________________________
186 _________________________________________________________________ M211840EN-C
1509-085

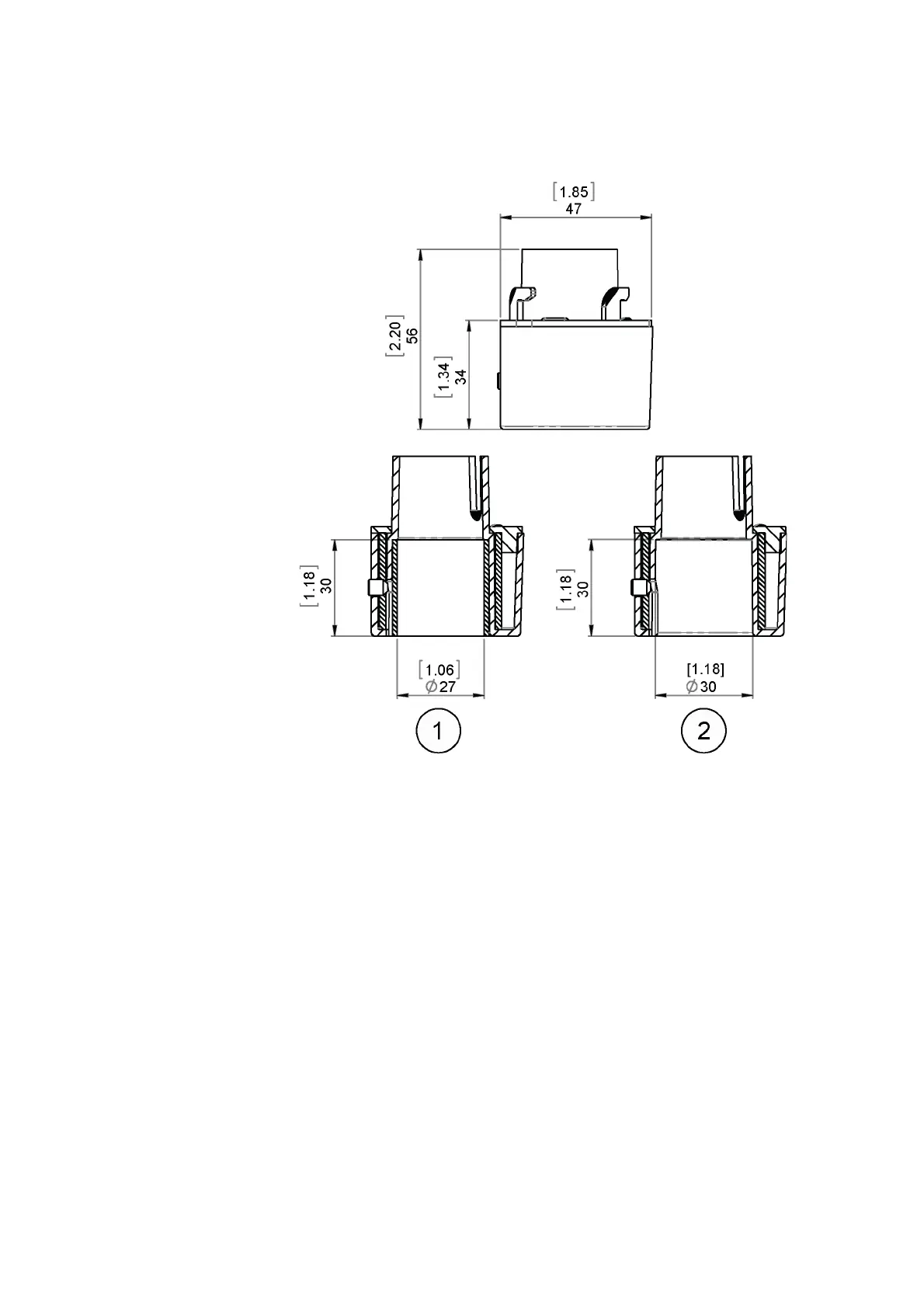

Figure 45 Mounting Kit Dimensions
1 = Mounting kit with adapter sleeve for Ø26.7 mm mast tube
2 = Mounting kit without adapter sleeve for Ø30 mm mast tube
