User’s Guide ______________________________________________________________________
48 __________________________________________________________________ M211840EN-C
1509-066

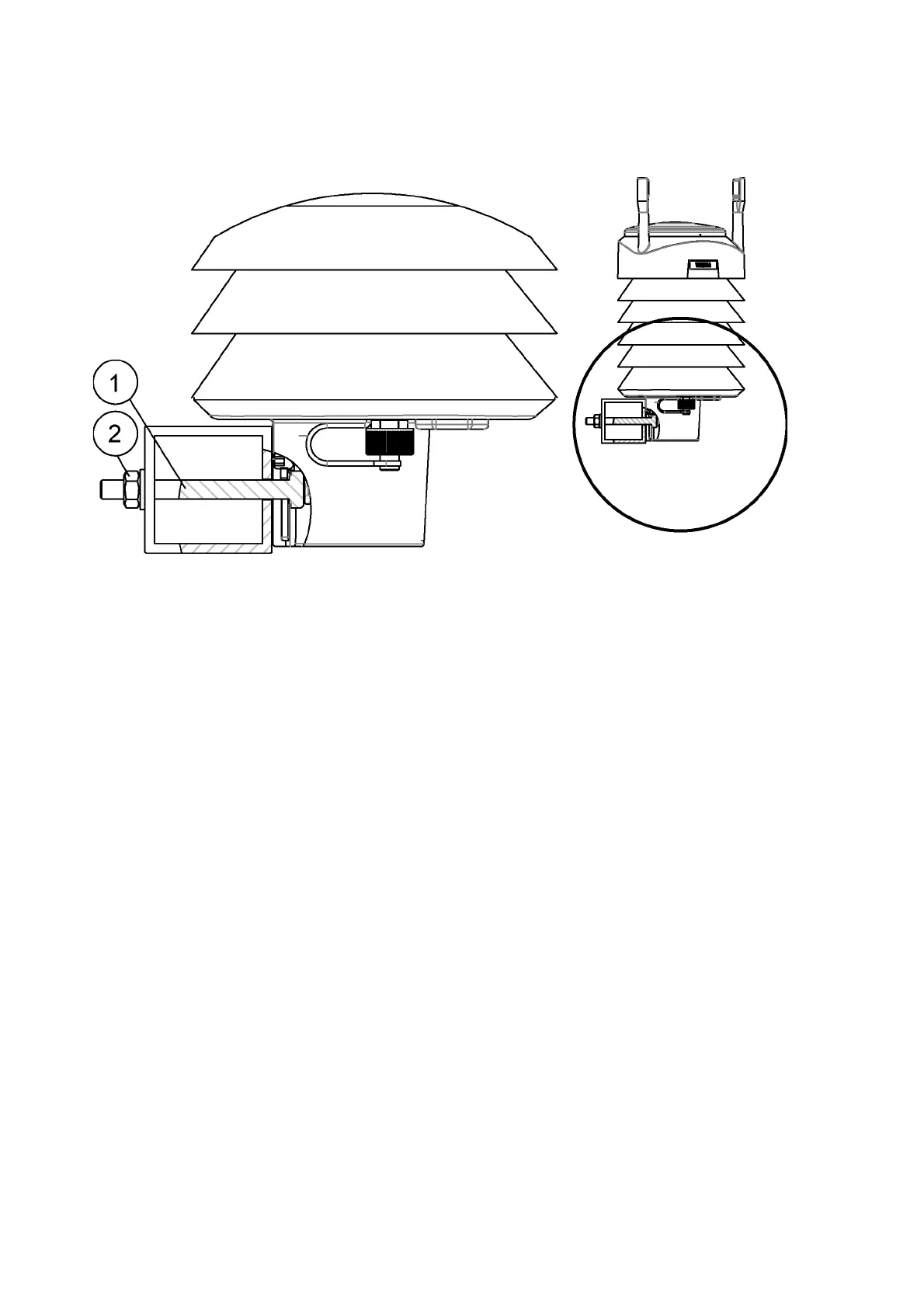

Figure 24 Mounting Bolt Location in Cross Arm
Grounding
A transmitter is typically grounded by installing it on a mast or a cross
arm that provides a good connection to earth ground.
As grounding is provided through the fixing screw (or mounting bolt),
it is important that it makes a good ground connection.
Grounding with Bushing and Grounding Kit
If the surface of the mounting point is painted or has some other
finishing that prevents a good electrical connection, consider using the
Bushing and Grounding Kit (222109) and a cable to ensure ground
connection.
1 = Nut (M6 DIN934)
2 = Mounting bolt (M6 DIN933)
