VAMP 150 - Page 61

VAMP Ltd
Motor protection relay
Technical Description
VAMP 150
VM150.EN005 Vamp 24h support phone : +358 (0)20 753 3264
33
CB
CLOSECOIL
OPENCOIL
closecontrol
tripcircuit
failurealarm
VR10CB
-V
AUX
+V
AUX
+V
AUX2
-V
AUX
VAMP1xxrelay
Digitalinput
Triprelay
Delay
Alarmrelay
fortrip
circuitfailure
relaycompartment
circuitbreakercompartment
+
TripCircuitSup100ClosePos

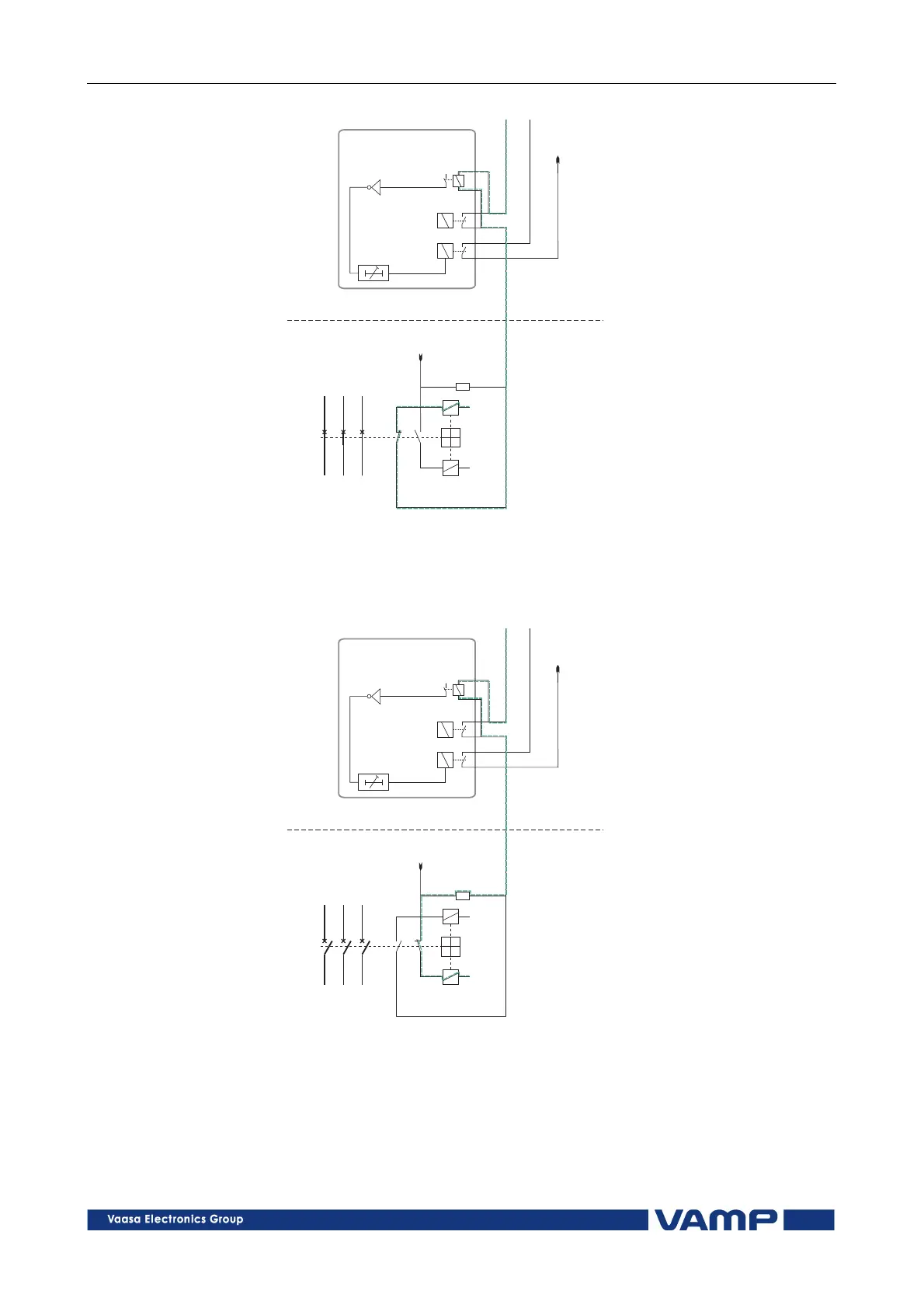

Figure 3.2-1. Trip circuit supervision when the circuit breaker is closed. The
supervised circuitry in this CB position is marked with an extra parallel
line. The digital input is in active state.
CB
CLOSECOIL
OPENCOIL
closecontrol
tripcircuit
failurealarm
VR10CB
-V
AUX
+V
AUX
+V
AUX2
-V
AUX
VAMP1xxrelay
Digitalinput
Triprelay
Delay
Alarmrelay
fortrip
circuitfailure
relaycompartment
circuitbreakercompartment
+
TripCircuitSup100OpenPos
Figure 3.2-2. Trip circuit supervision when the circuit breaker is open. The
supervised circuitry in this CB position is marked with an extra parallel
line. The resistor device VR10CB offers an active input state for the digital
input although the open coil auxiliary contact is open.
