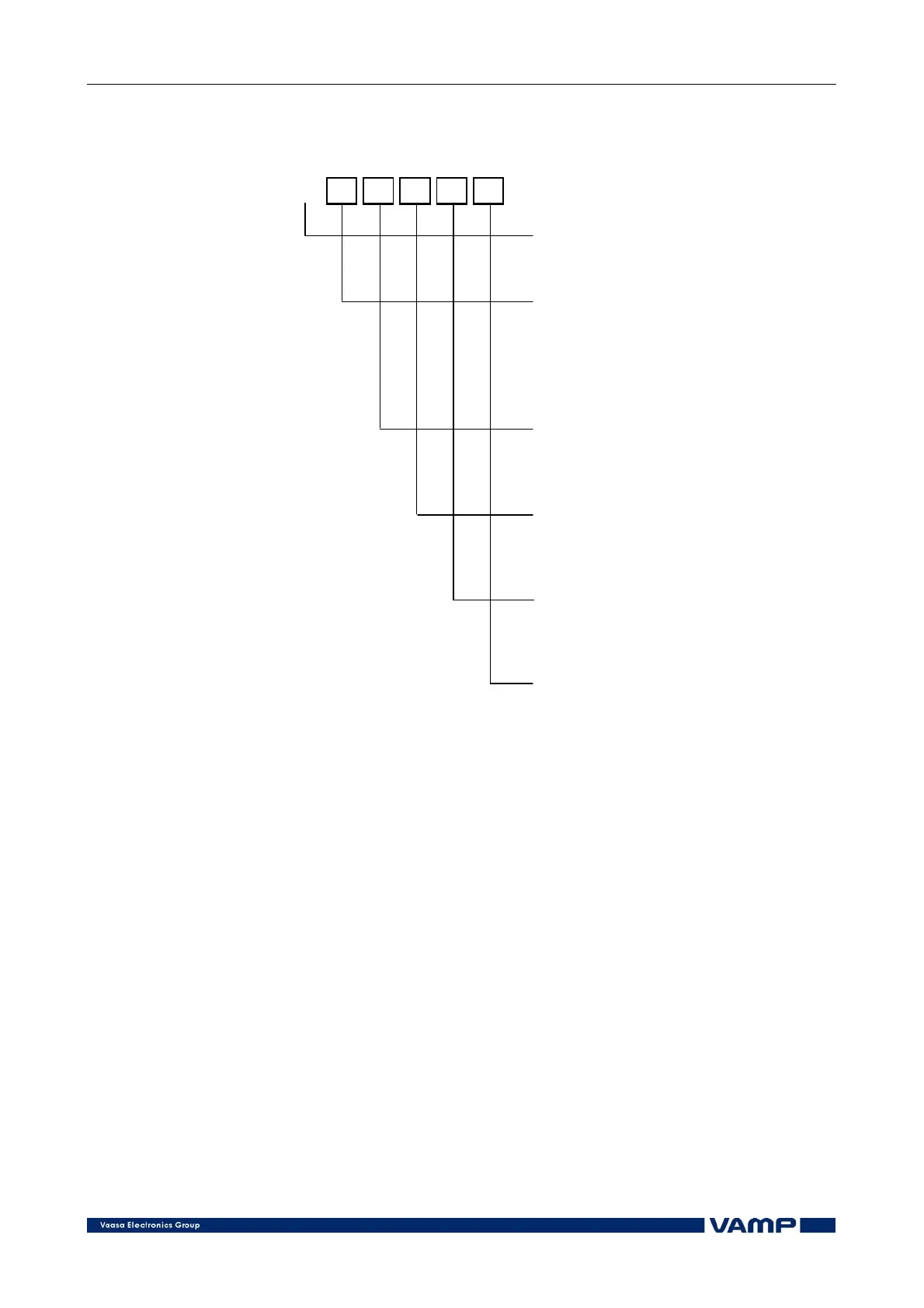

VAMP 220 R ORDERING CODE
VAMP 220 R
-3
Nominal Current [A]
3
=1A / 5A
Trip 3 operation time [ms]
A
=FAST
B
=80ms
C
= 100ms
D
= 150ms
Trip 4 operation
3
=Normal
4
= Trip 4 -> CBFP
Supply Voltage [V]
A
= 40.. 265Vac/dc
B
= 18.. 36Vdc
Optional Hardware 1
A
= None
B
= Slave Unit Option Card
Optional Hardware 2
A
=None
B = B I/O Option Card
Accessories :
Order Cod
e
Explanation Note
VAM 12 CD
Slave Unit (VAMP220) 10 Sensor Inputs
VAR 4 CE 4/0
Trip Multiplier Relay 1xNO -> 4xNO
VAX 2 CB
Interface Unit ( use vx002 cable ) For Sensor Cable Extensio
n
VA 1 DA-6
Arc Sensor Cable length 6m
VA 1 DA-20
Arc Sensor Cable length 20m
VA 1 DT-6
Temperature Sensor Cable length 6m
VA 1 DP-5
Portable Arc Sensor Cable length 5m
VX001-xx
Modular Cable VAM <-> VAM ( xx = Cable length [m] ) Note 1. Preferred Cable Lenghts
VX002-xx
Shielded Sensor Cable ( xx = Cable Length [m] ) Example: JAMAK
VX010-xx
Modular Cable VAMP <-> VAM ( xx = Cable length [m] ) Note 1. Preferred Cable Lenghts
VYX001
Surface Mounting Plate for Sensors Z-shaped
VYX002
Surface Mounting Plate for Sensors L-shaped
VYX076
Raising Frame Height 40mm
VYX077
Raising Frame Height 60mm
Note 1. Cable lengths 1, 3, 5, 7, 10, 15, 20, 25 & 30
