Technical description 1 Introduction 1.2 Principles of numerical protection
techniques
VM50.EN004 VAMP 24h support phone +358 (0)20 753 3264
43
Figure 1.2-2 shows the heart of the numerical technology. That
is the main block diagram for calculated functions.
Figure 1.2-3 shows a principle diagram of a single-phase
overvoltage or overcurrent function.

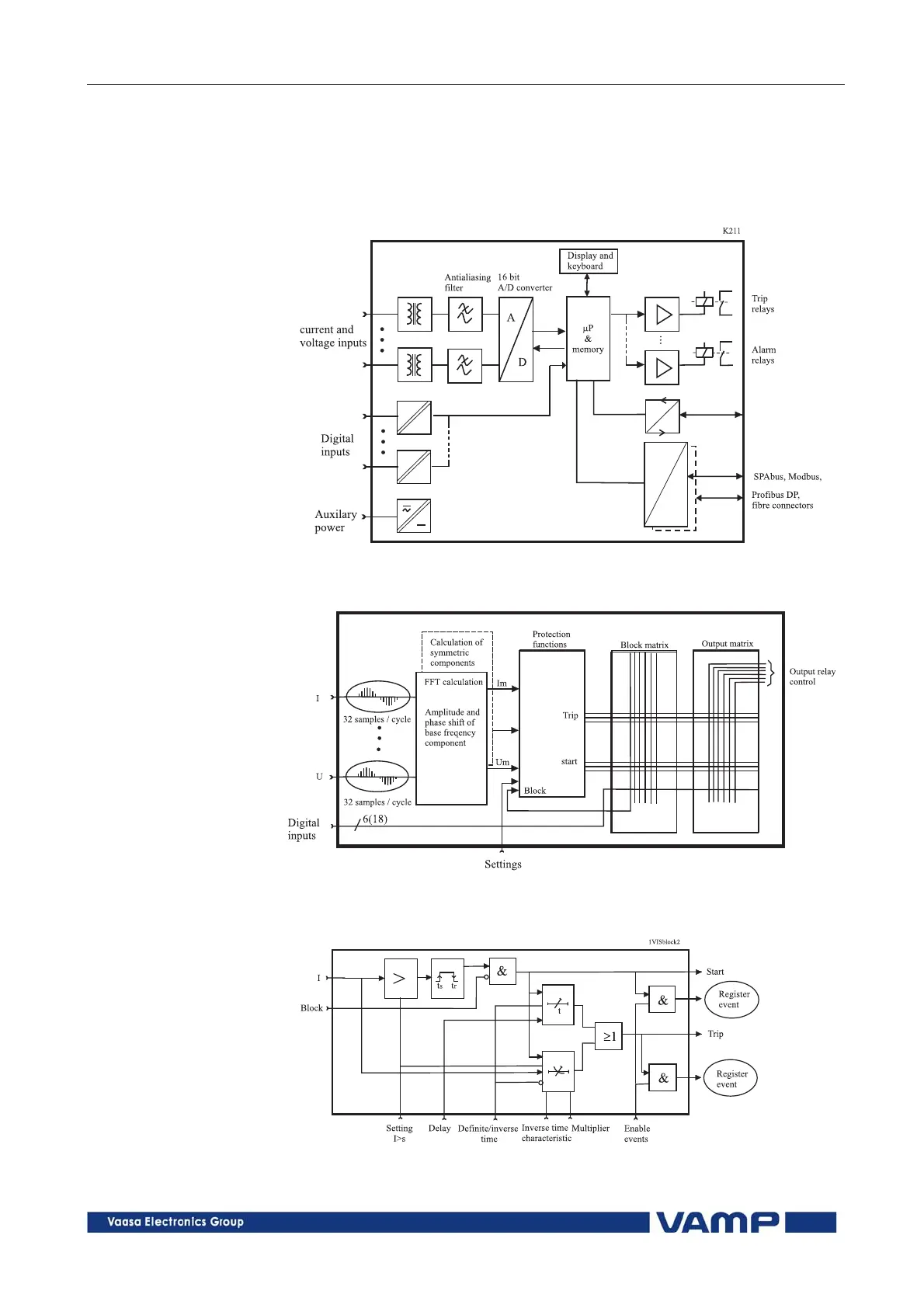

Figure 1.2-1 Principle block diagram of the VAMP hardware
Figure 1.2-2 Block diagram of signal processing and protection software
Figure 1.2-3 Block diagram of a basic protection function
