VarioCooking Center 211 - Page 100

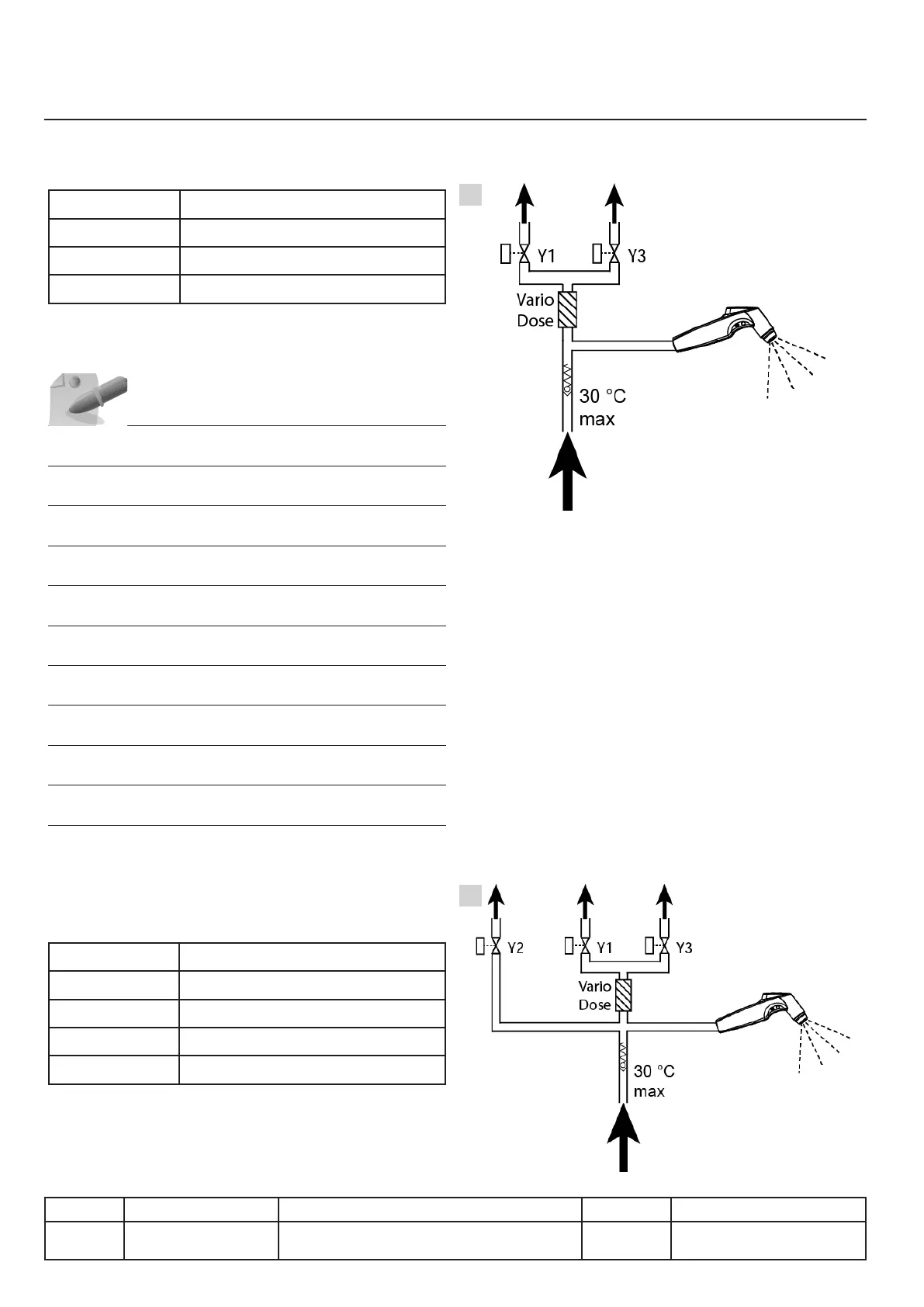

Hydraulic circuit
112 V, 112 P, 112T, 112L, without hot water
Model 112 V, 112T and 112L
Fig. A
Label Description
Y1
Left pan ll solenoid valve
Y3
Right pan ll solenoid valve
VarioDose
Flowmeter
Model 112 P
Fig. B
Label Description
Y1
Left pan ll solenoid valve
Y2
Solenoid valve control box
Y3
Right pan ll solenoid valve
VarioDose
Flowmeter
v03 • July-2016 • Hen
VIII.04
Hydraulic circuit Module
A
B
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112, 112P, 112T, 112L E11xH1009xxxxxxx , E12VI1310xxxxxxx,
E13VJ1509xxxxxxx
