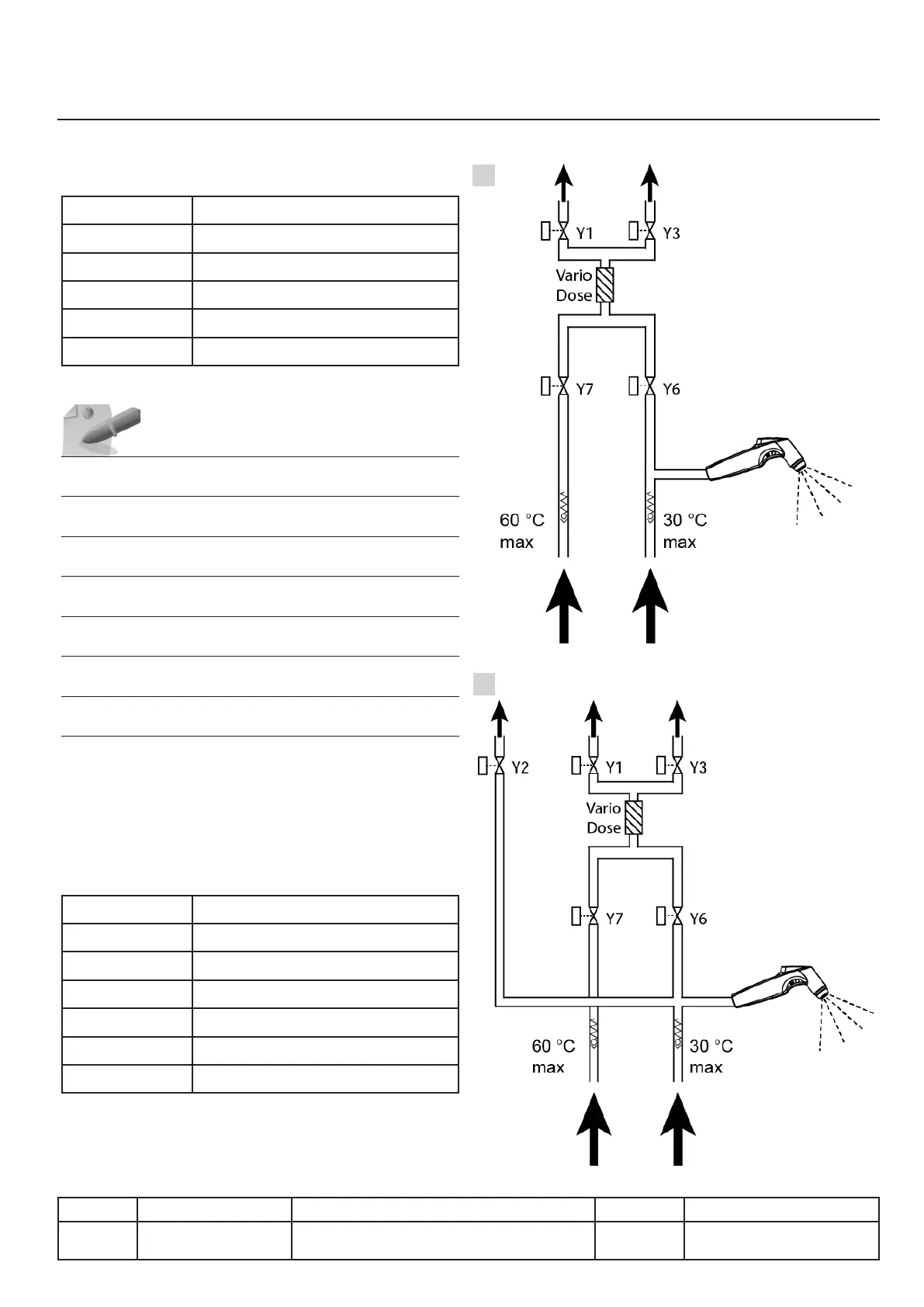

Hydraulic circuit
112 V, 112 P, with hot water
Model 112 V
Fig. A
Label Description
Y1
Left pan ll solenoid valve
Y3
Right pan ll solenoid valve
Y6
Cold water solenoid valve
Y7
Hot water solenoid valve
VarioDose
Flowmeter
Model 112 P
Fig. B
Label Description
Y1
Left pan ll solenoid valve
Y2
Solenoid valve control box
Y3
Right pan ll solenoid valve
Y6
Cold water solenoid valve
Y7
Hot water solenoid valve
VarioDose
Flowmeter
v03 • July-2016 • Hen
Hydraulic circuit Module
VIII.05
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
112, 112P E11xH1009xxxxxxx
A
B
