VarioCooking Center 211 - Page 102

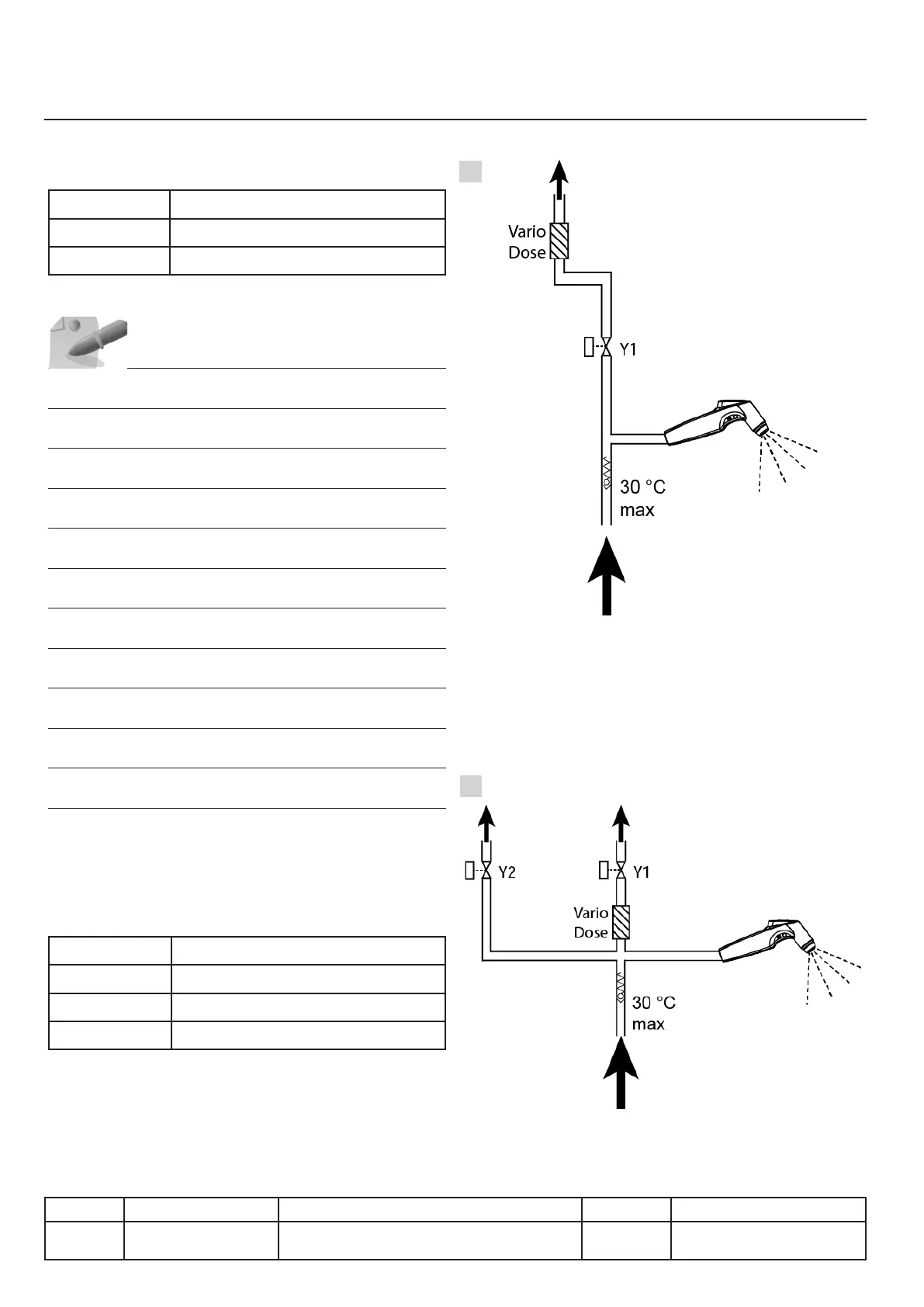

Hydraulic circuits
211 / 311 V and P, without hot water, index H and I
Model 211/311 V
Fig. A
Label Description
Y1
Left pan ll solenoid valve
VarioDose
Flowmeter
Model 211/311 P
Fig. B
Label Description
Y1
Left pan ll solenoid valve
Y2
Solenoid valve control box
VarioDose
Flowmeter
