VarioCooking Center 211 - Page 103

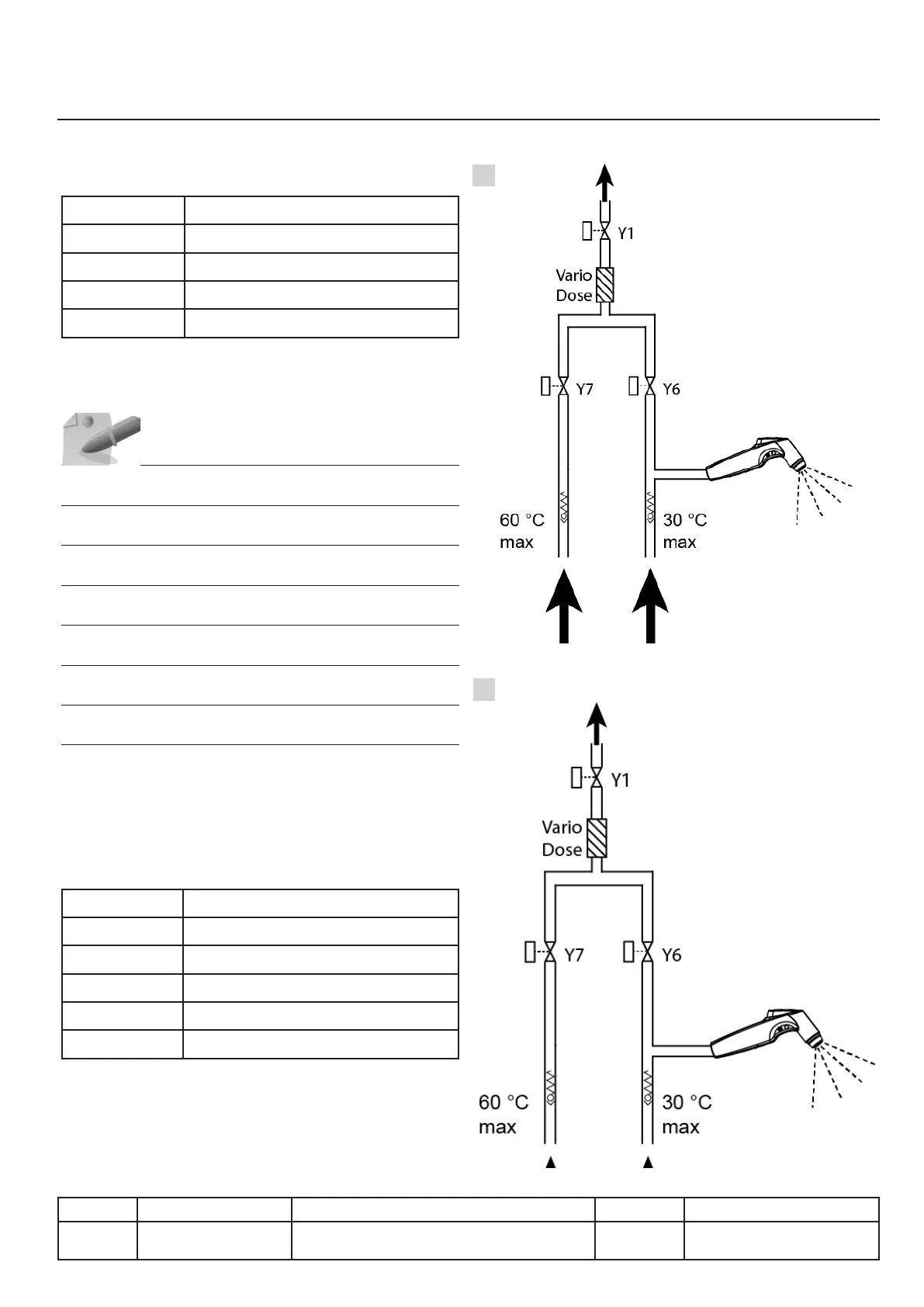

Hydraulic circuit
211 / 311 V and P, with hot water, until index H
Model 211/311 V
Fig. A
Label Description
Y1
Left pan ll solenoid valve
Y6
Cold water solenoid valve
Y7
Hot water solenoid valve
VarioDose
Flowmeter
Model 211/311 P
Fig. B
Label Description
Y1
Left pan ll solenoid valve
Y2
Solenoid valve control box
Y6
Cold water solenoid valve
Y7
Hot water solenoid valve
VarioDose
Flowmeter
VIII.07
v03 • July-2016 • Hen
Hydraulic circuit Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
211, 311
211P, 311P
E21xX1009xxxxxxx
E31xX1009xxxxxxx
A
B
