VarioCooking Center 211 - Page 104

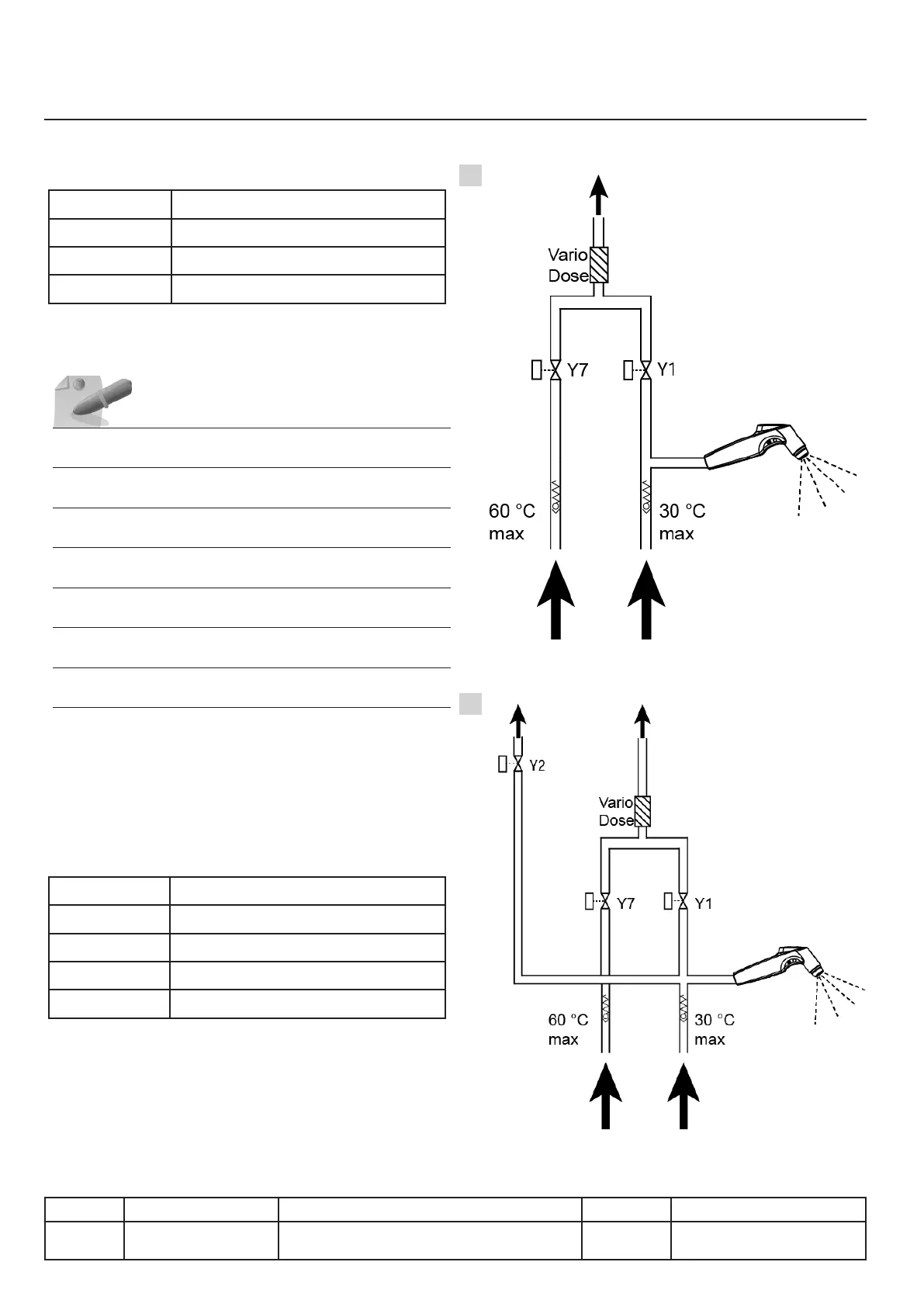

Hydraulic circuit
211 / 311 V and P, with hot water, since index I
Model 211/311 V
Fig. A
Label Description
Y1
Cold water solenoid valve
Y7
Hot water solenoid valve
VarioDose
Flowmeter
Model 211/311 P
Fig. B
Label Description
Y1
Cold water solenoid valve
Y2
Solenoid valve control box
Y7
Hot water solenoid valve
VarioDose
Flowmeter
v03 • July-2016 • Hen
VIII.08
Hydraulic circuit Module
A
Ligne Appareils Numéro de série (A partir de) Sw Révision
VCCM
VCCWE
211, 311
211P, 311P
E21xI1602xxxxxxx
E31xI1601xxxxxxx
B
