VarioCooking Center 211 - Page 108

Heating system: general
Installation and description

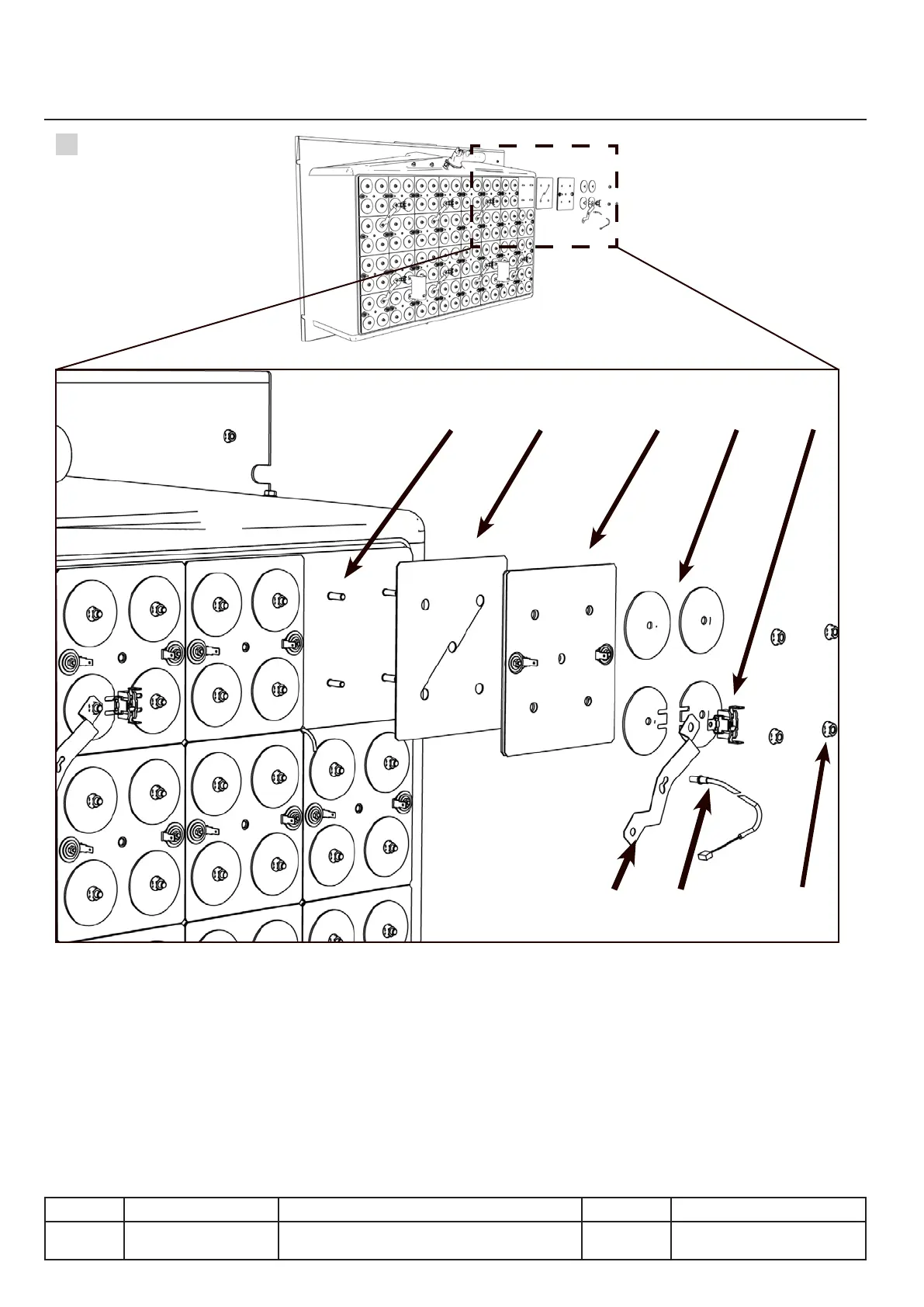

A. Pan stud
B. Graphite sheet 1 mm
C. Heating element
D. Support washer
E. Safety thermostat: Bimetal 355°C
F. Thermocouple support
G. Thermocouple
H. Mounting nut
Installation of the heating unit, Fig. 1
IX.02
v03 • July-2016 • Hen
Heating system module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
All ExxXH1009xxxxxxx
A E
F G H
B C D
1
