VarioCooking Center 211 - Page 109

Heating system: general
Installation and description

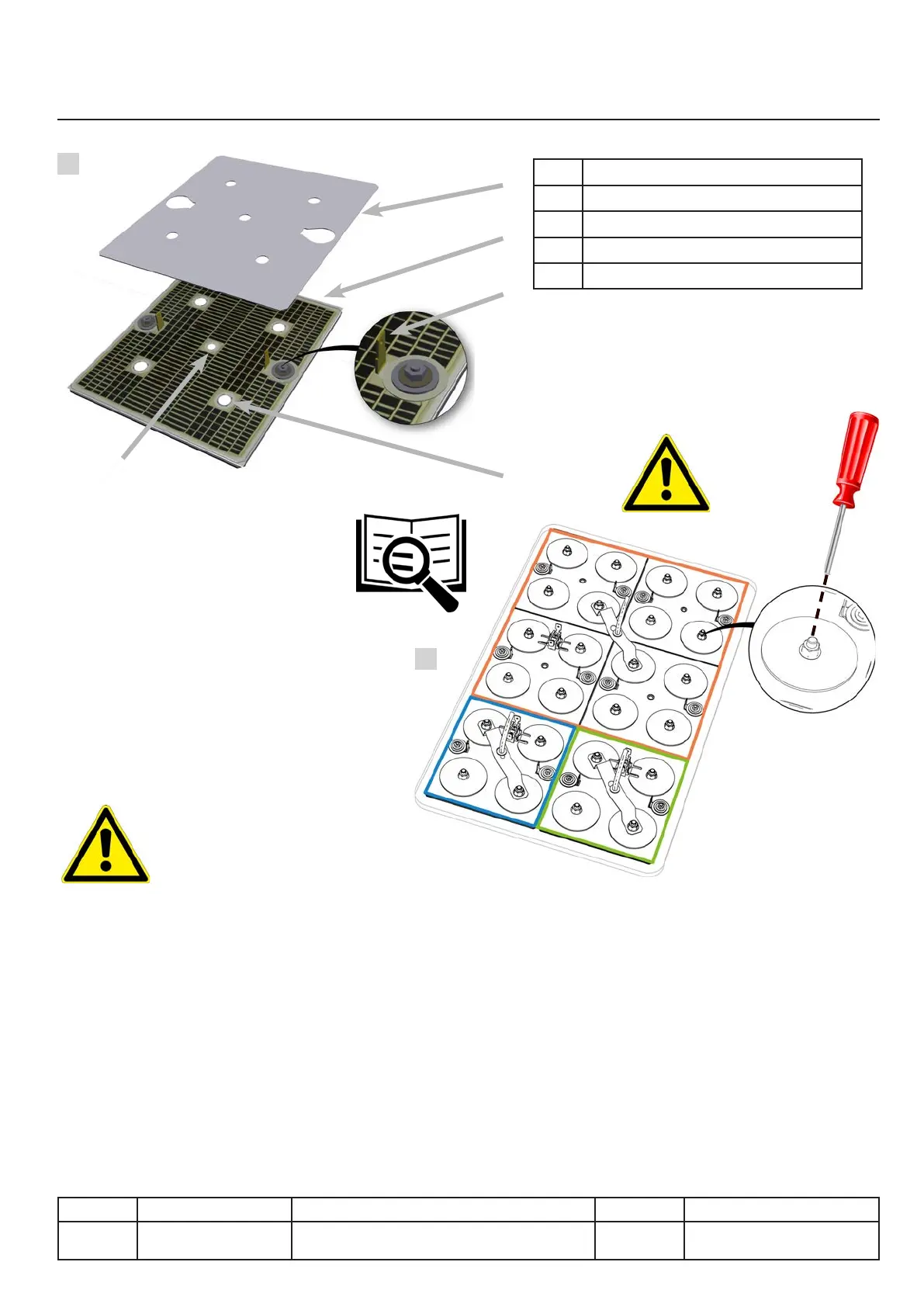

Fig. 2, Heater
A Mica insulation plate
B "Thick Film" heater
C Electrical contact
D Thermocouple location
E Mounting stud passage
Features:
P = 1400W or 2286W (depend on model)
Available in 3 voltages:
200VAC - 230VAC - 445VAC
Important points!
●Wheninstalling,alwaysusethetruingbushesdeliveredinthereplacementkit.
●Theremustbeatorqueof4Nm.Fig.3.
●Readtheinstallationinstructionssuppliedwiththekitcarefully.
●Theheatingelementmustbeincontactwiththebottomofthepanvia the graphite sheet.
●Thethermocouplemustbeproperlycentredandincontactwith the bottom of the pan.
●Afteranexchangeoftheheatingelementitiscustomarytorecalibratetheunit,oreventoalso
make an allocation. (See Chapter Heating system > Allocation/calibration).
IX.03
v03 • July-2016 • Hen
Heating system module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
All ExxXH1009xxxxxxx
A
B
C
E
D
4 Nm
2
3
