VarioCooking Center 211 - Page 110

Heating system: general

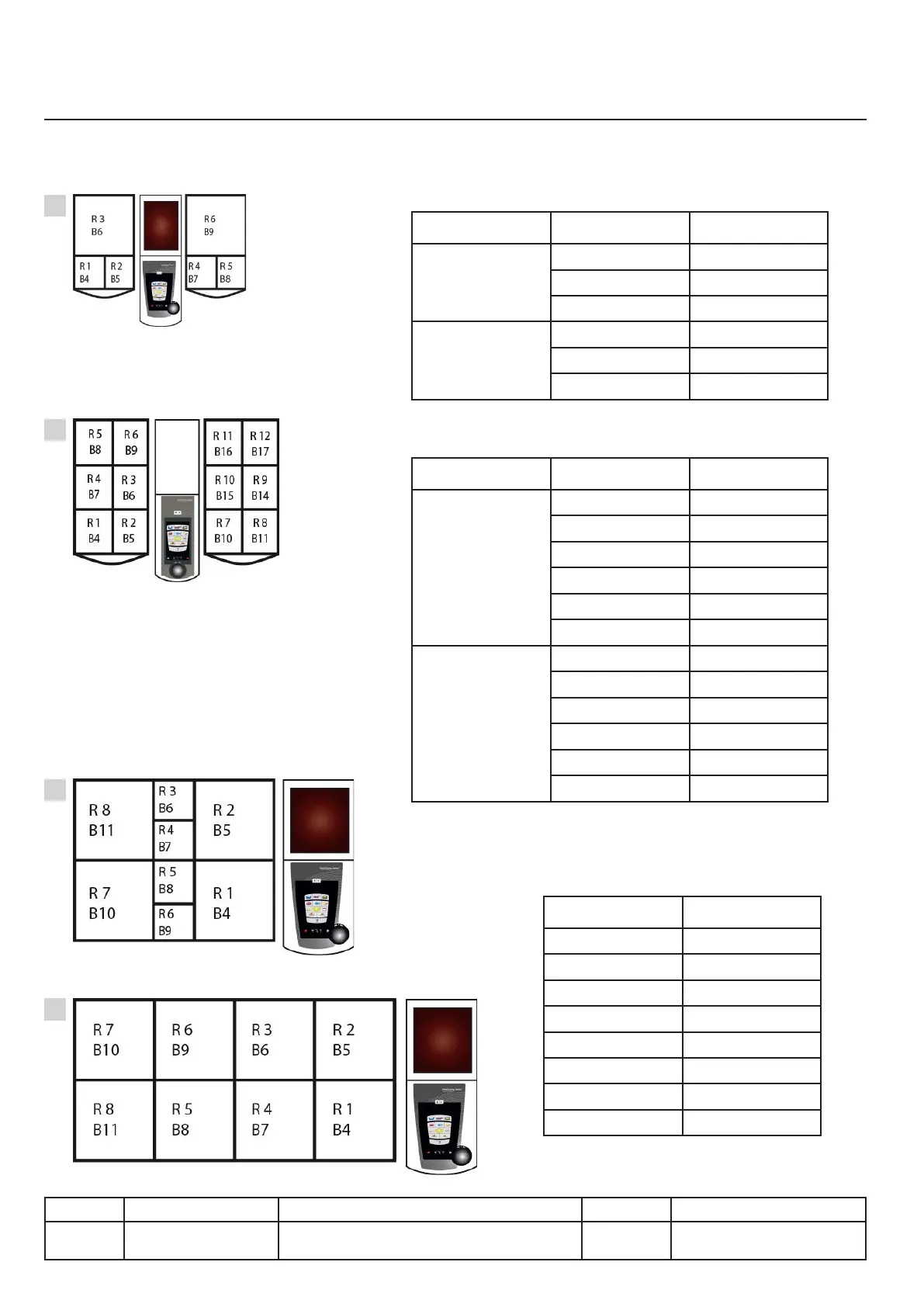

Heating zones
Position, size of the heating zones and thermocouple affected
Fig.1 VCC 112 & 112T
Side
Heating zone Thermocouple
Left
R1 B4
R2 B5
R3 B6
Right
R4 B7
R5 B8
R6 B9
Fig.2 VCC 112L
Side
Heating zone Thermocouple
Left
R1 B4
R2 B5
R3 B6
R4 B7
R5 B8
R6 B9
Right
R7 B10
R8 B11
R9 B14
R10 B15
R11 B16
R12 B17
Fig. 2 & 3 VDC 211 & 311
Heating zone Thermocouple
R1 B4
R2 B5
R3 B6
R4 B7
R5 B8
R6 B9
R7 B10
R8 B11
IX.04
v03 • July-2016 • Hen
Heating system module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
All ExxXH1009xxxxxxx
1
3
2
4
