Ceramic hob
Components and description
Components

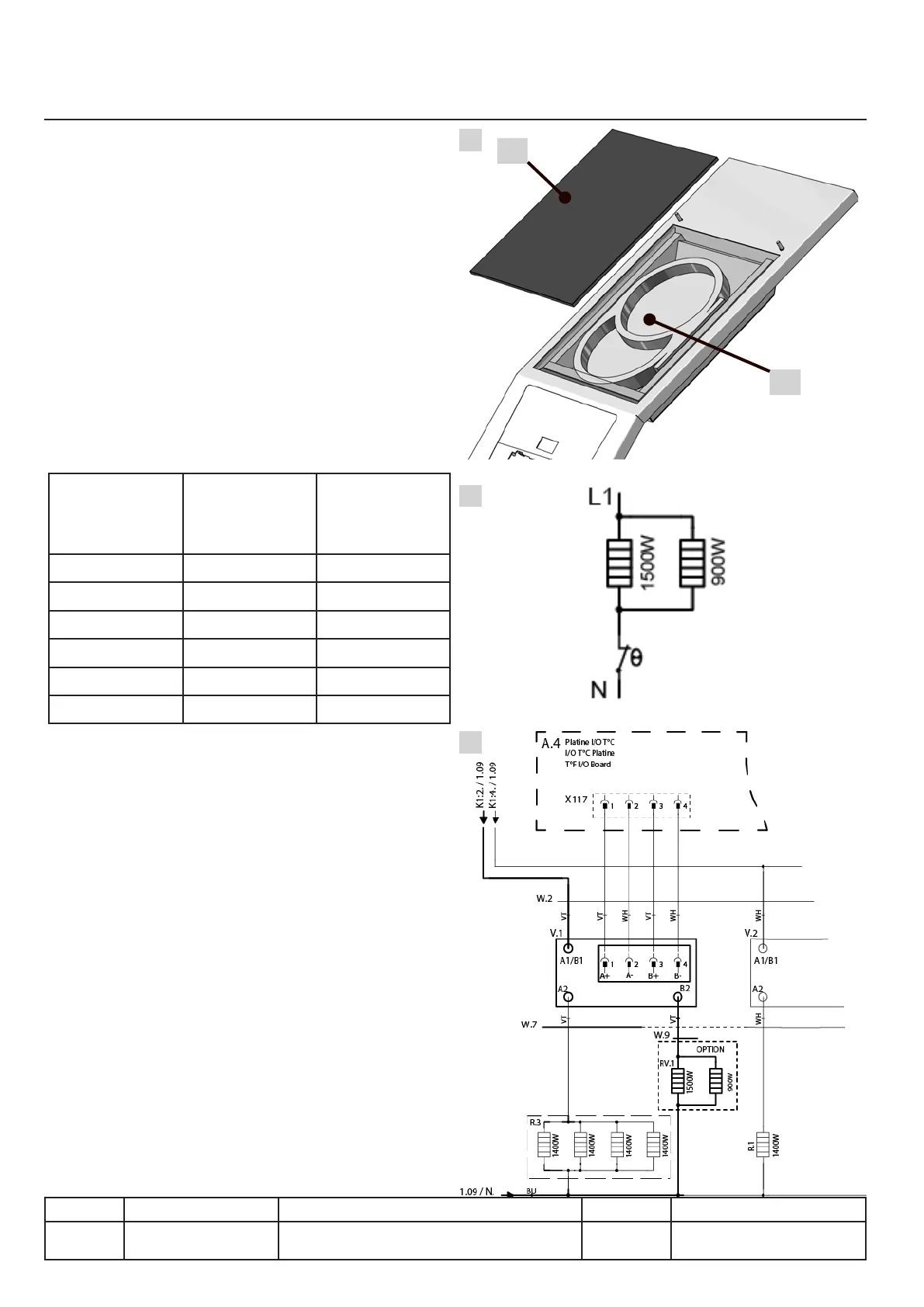

The ceramic hob (Fig. 2) consists of two heaters.
One 900W, the other 1500W. It is not possible to
control them separately.
The heating power is managed over a time basis.
This basis made of 6 different power levels is six
seconds.
Figure 2
2.1: Glass ceramic plate
2.2: Ceramic heating element
Relationship time basis / power:
Level of
heating
Active
heating
(seconds)
Inactive
heating
(seconds)
1
1 5
2
2 4
3
3 3
4
4 2
5
5 1
6
6 0
Safety
Overheating safety is provided by a thermostat
embedded in the ceramic, connected in
series with the neutral of the power supply.
see Fig. 3.
Ceramic hob wiring
See Fig. 4
v03 • July-2016 • Hen
IX.08
Heating system module
2
2.1
2.2
3
4
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
All
(With ceramic hob option)
ExxXH1009xxxxxxx
