Option Energy optimizer
Description and connection
Description
This option allows the connection of a energy opti-
mizer. For the connection detail refer to the wiring
diagrams delivered with the appliance.
The shutdown time of the heating elements, by
the energy optimization system, must be not more
then 10 seconds per minute.
Diagram

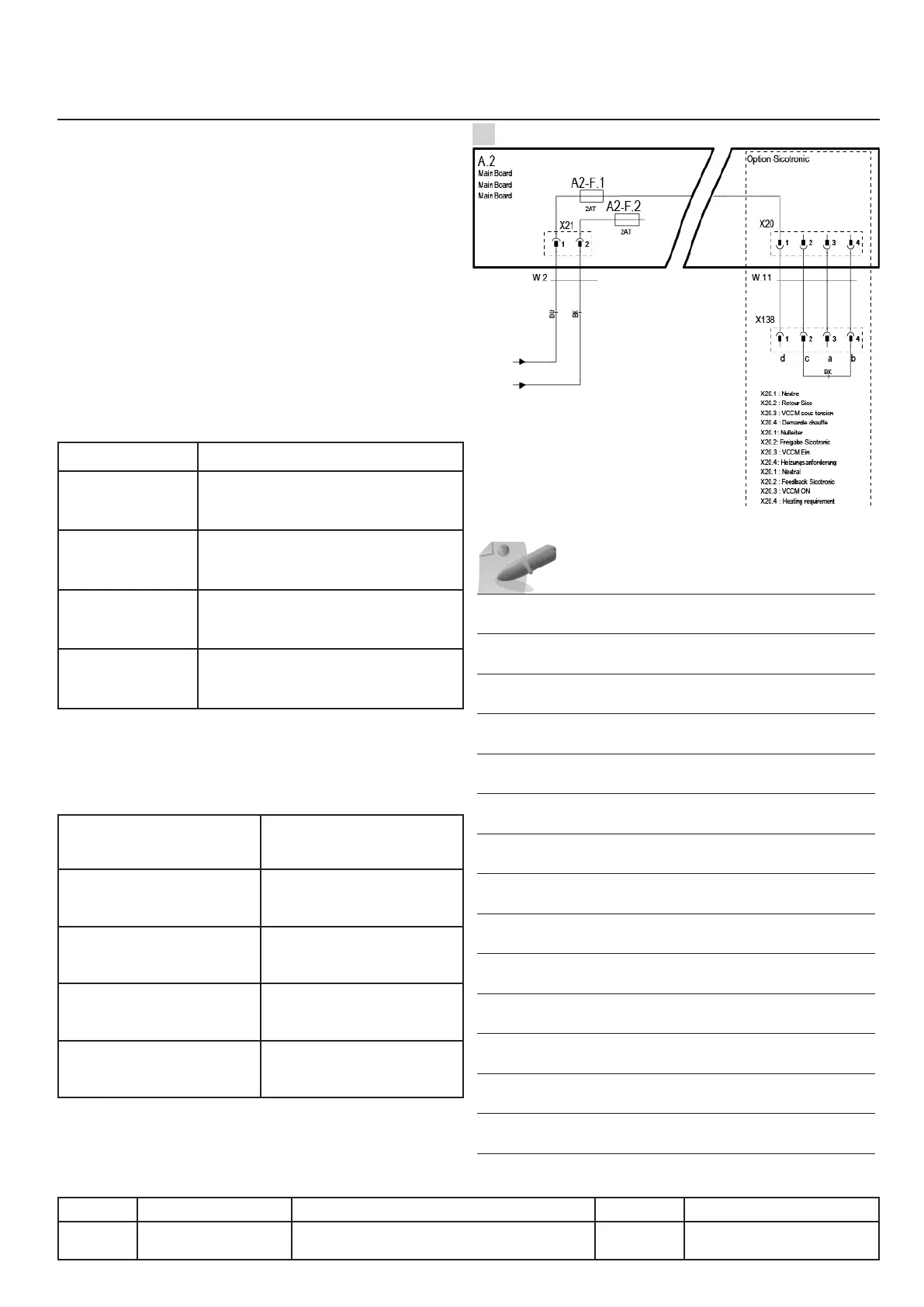

See picture 1 or appliance wiring diagram.
Connectors
Connector Description
X20.1
(230 VAC)
Neutral from the
VarioCooking Center
®
X20.2
(230 VAC)
Heating allowance from the energy
optimizer
X20.3
(230 VAC)
Information unit is switched on,
from the VarioCooking Center
®
X20.4
(230 VAC)
Heating request from the VarioCook-
ing Center
®
Wiring with a unit typ
Sicotronic EAM-N
VarioCooking
Center
®
Sicotronic EAM-N
X20.1
ou X138.1
D1 / D2
X20.2
ou X138.2
C1 / C2
X20.3
ou X138.3
B1 / B2
X20.4
ou X138.4
A1 / A2
IX.09
