VarioCooking Center 211 - Allocation

Allocation
Description
Components

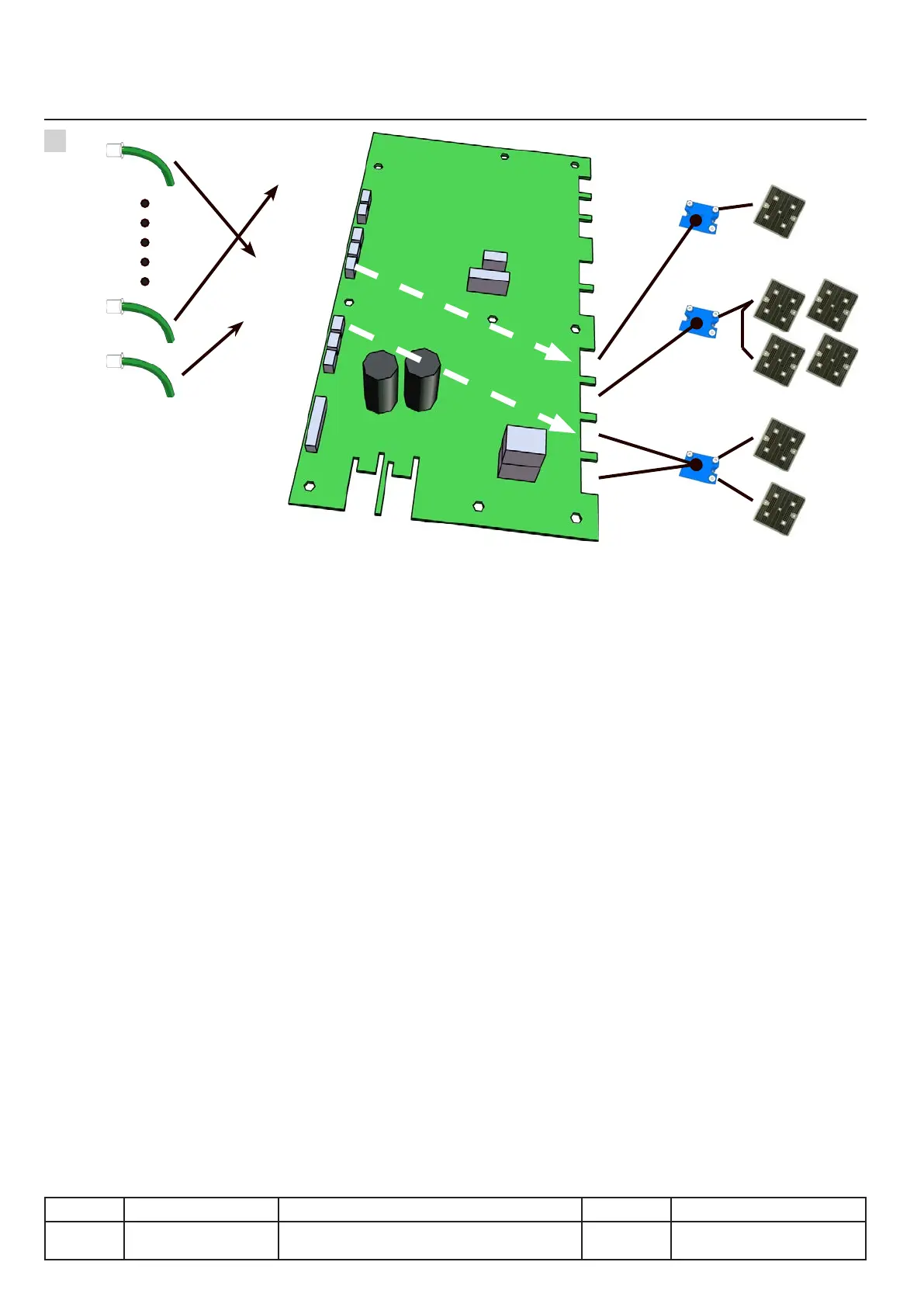

Fig. 1
Allocation: Denition
The temperature on the bottom of the pan is regulated via a 'network' of thermocouples.
Model 112 / 112T, 6 thermocouples Model 211 / 311, 8 thermocouples
Model 112L 12 thermocouples
Each of these must be assigned to a heating zone. This assignment is called the allocation.
Allocation is an automatic process available in service mode, which takes about 5 minutes
(e.g.model112).Eachheatingzoneispoweredforapredenedtime,afterwhichthesoftwarelooks
forthethermocouplethatreactedtothechangeintemperature.Thethermocoupleitndsisthen
associated with the heating zone.
When should an allocation be carried out?
This operation is not necessary after each intervention. Here are the situations where it must be
carried out:
Exchange of
● The main board A2 (42.00.080V)
● The I/O board A4 (42.00.159F)
● More than one thermocouple
● The SD card (42.00.128)
● More than one heater
● More than one SSR
In all cases if:
● More than one thermocouple has been
disconnected
●
The cook complains of irregularity in cooking
IX.10
v03 • July-2016 • Hen
Heating system module
V1 - V6
R1 - R12
