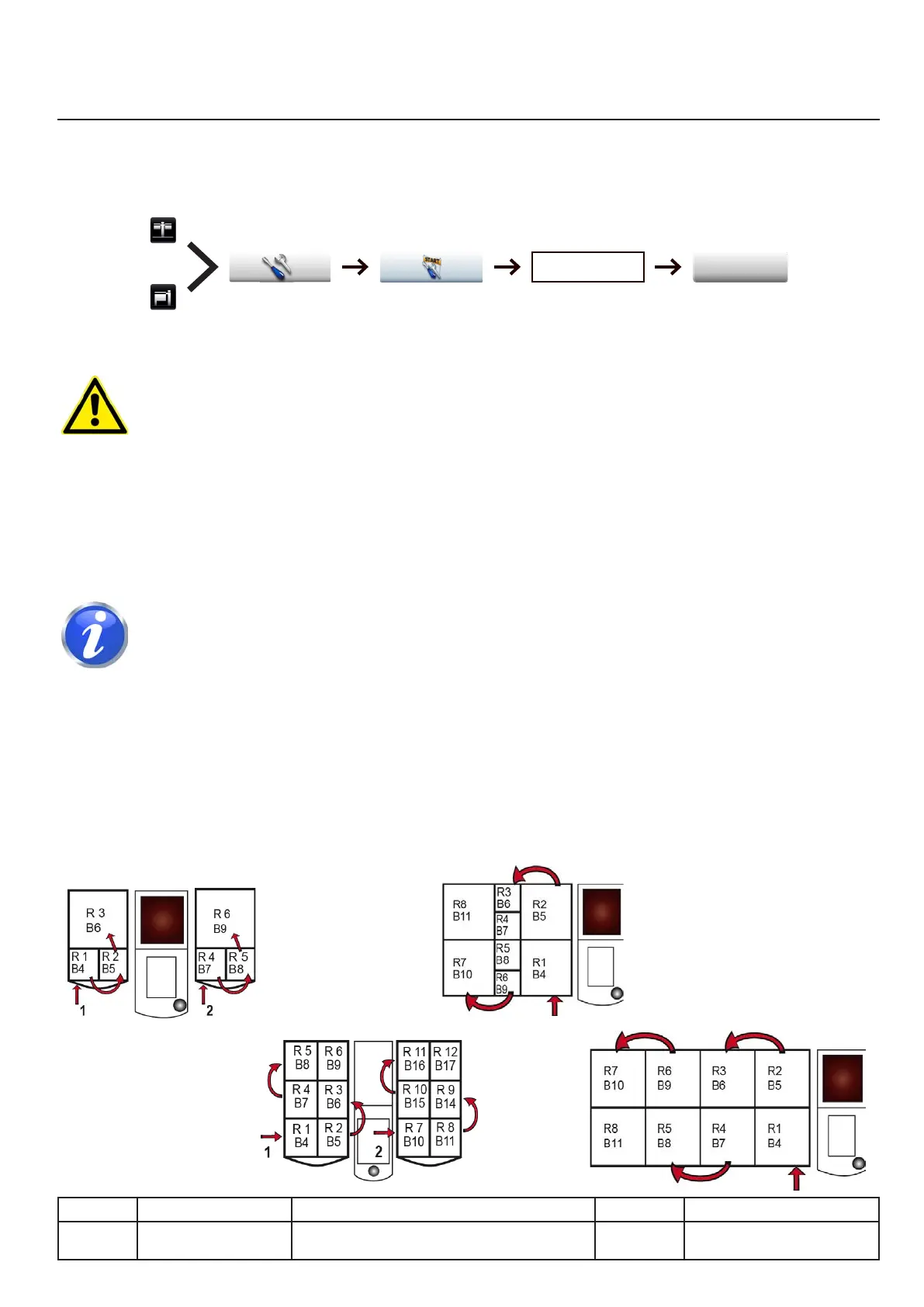

Allocation
Practical guide
Access to the allocation (service mode)
Password for access to the mode: TECLEVEL
Case sensitive!
Points to note
The pan must be cold, empty and clean.
Procedure
Start the allocation of the thermocouples by
pressing the corresponding button.
After allocation a calibration should be carried out.
The automatic process lasts between 5
and 10 minutes depending on the model (112,
211 or 311). It is interrupted when an anomaly
occurs with the corresponding error code being
displayed. (See following pages)
Description of the automatic sequence:
I. Heat up a zone.
II. Wait.
III. Search for a thermocouple with its temperature
rising and allocation of the thermocouple/
connector on the A4 board in the heating zone.
IV. Back to step I, next heating zone.
Heating sequence:
IX.11
v03 • July-2016 • Hen
Heating system module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
All ExxXH1009xxxxxxx
TECLEVEL Allocation
112 / 112T
211
311
112L
