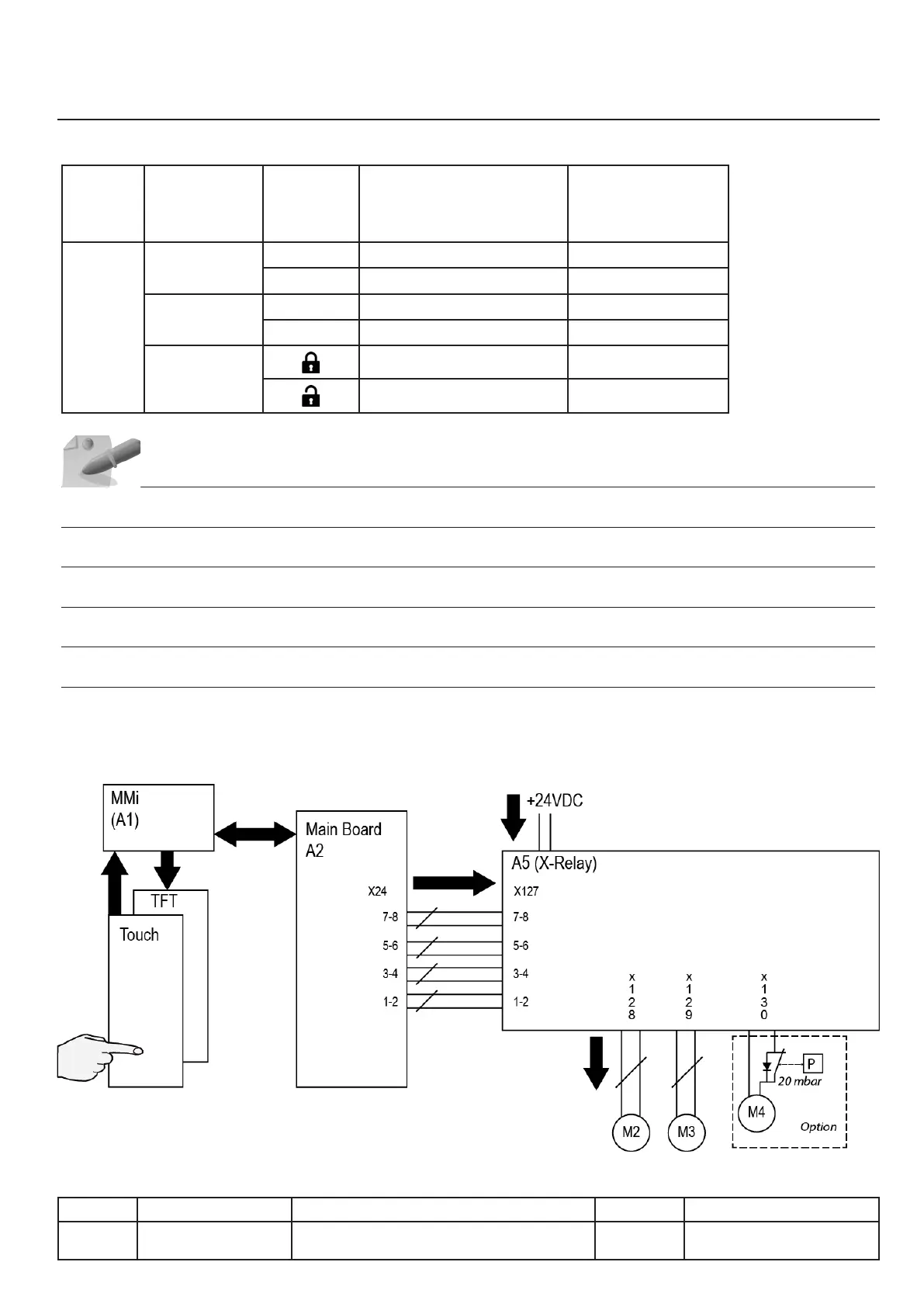

VarioCooking Center 211 - Page 153

VCC 211/311
Control of movements, principle
Control of movements
Side Element Action Board A2
Connector X24
(12VDC)
Board A5
(24-28 VDC)
Left Pan ↑ X24: 1/2 X128 1(-) / 2(+)
↓ X24: 1/2 + 3/4 X128 1(+) / 2(-)
Autolift
Lid
↑ X24: 1/2 + 5/6 X129 1(-) / 2(+)
↓ X24: 1/2 + 3/4 + 5/6 X129 1(+) / 2(-)
Lock
Lid
X24: 1/2 + 5/6 + 7/8 X130 1(-) / 2(+)
X24: 1/2 + 3/4 + 5/6 + 7/8 X130 1(+) / 2(-)
Wiring
X.25
v03 • July-2016 • Hen
Motorisation Module
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
211, 311 E21xH1009xxxxxxx, E31xH1009xxxxxxx
