VarioCooking Center 211 - Page 154

VCC 211/311, index H
Description of the pan/lid tilting actuator

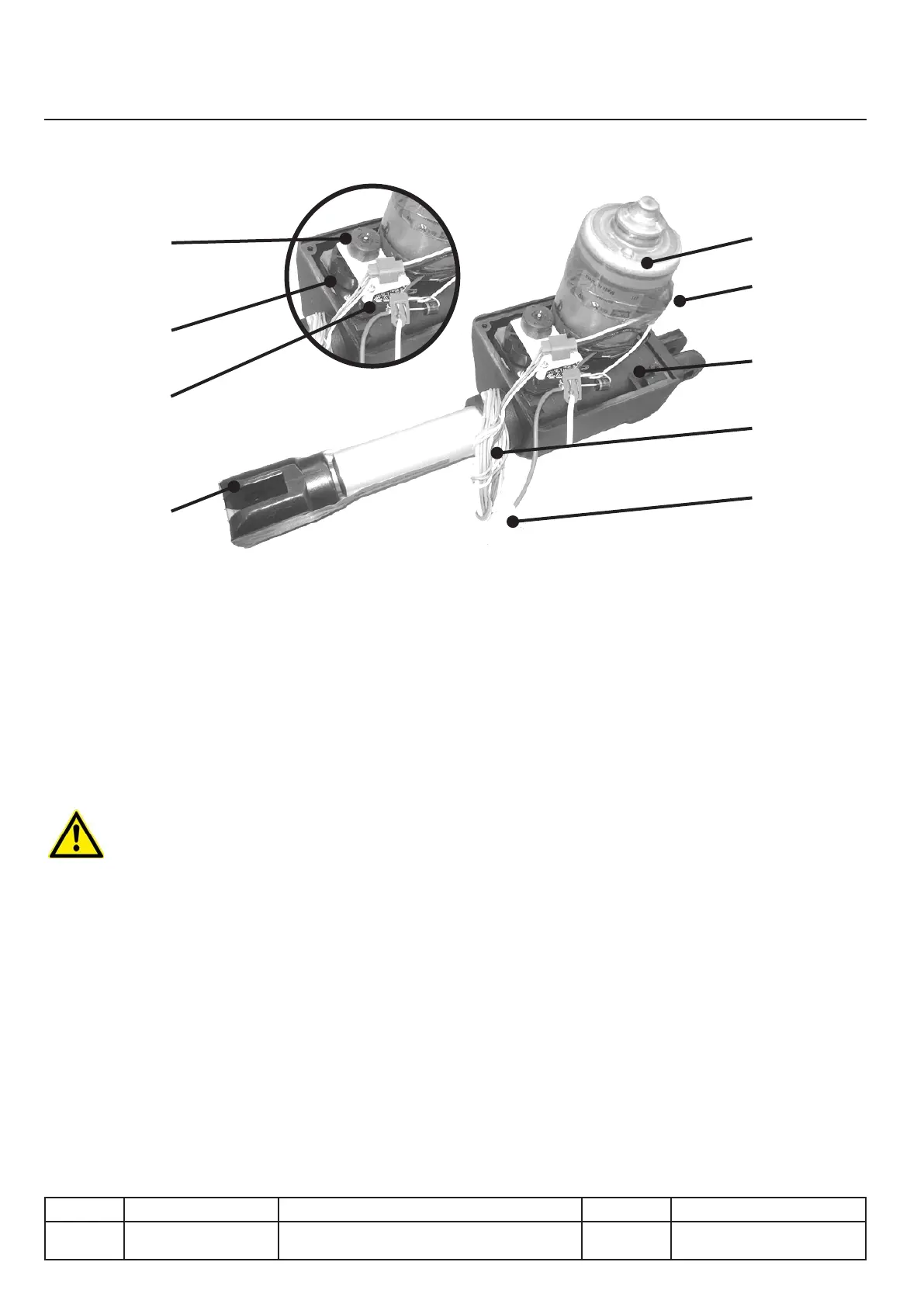

Description of the Phoenix Mecano actuator with potentiometer
Instructions
●Whenmountingneverturntheactuatorrod
●Ifyou want to lengthenorshortentheactuatordoit'electrically',use the function testfromthe
service mode
●No pan movement is possible if the lid is not detected in the upper position
●No lid movement is possible before the pan registers his zero.
A. Motor 24 VDC
B. Thermal safety 90°C
C. Mechanism including a friction clutch system
D. Potentiometer
E. Cam
F. Safety microswitch max length (activated by
the cam)
G. Potentiometer connections
H. Power supply connections
I. Actuator rod
X.26
v03 • July-2016 • Hen
Motorisation Module
A
B
C
F
H
I
L
E
D
Line Units Serial number (starting from) Sw Revision
VCCM
VCCWE
211, 311 E21xH1009xxxxxxx, E31xH1009xxxxxxx
