3.6.1.2 Address setting via Terminal function
Command:
0 1 2 3 4 5 6 7 8 9 10 11 12 13
s : 1 0 a b c d 0 0 0 0 CR LF
code description data range
s:10 Command header none
a Cluster address high byte in hexadecimal code 0…F
b Cluster address low byte in hexadecimal code 0…F
c Number of valves high byte in hexadecimal code (Master only) 0…F
d Number of valves low byte in hexadecimal code (Master only) 0…F
• Command examples:
for Master valve
Command: s:1000120000<CR><LF>
Answer: x:10aaaaaabbbbbbbbccccccccddddefghhiiiikl<CR><LF>
Description: Address allocation to Master valve (cluster address #0) and definition of number of valves
(Master valve included!). In this case the valve cluster consists of 18 valves (12
hex
).

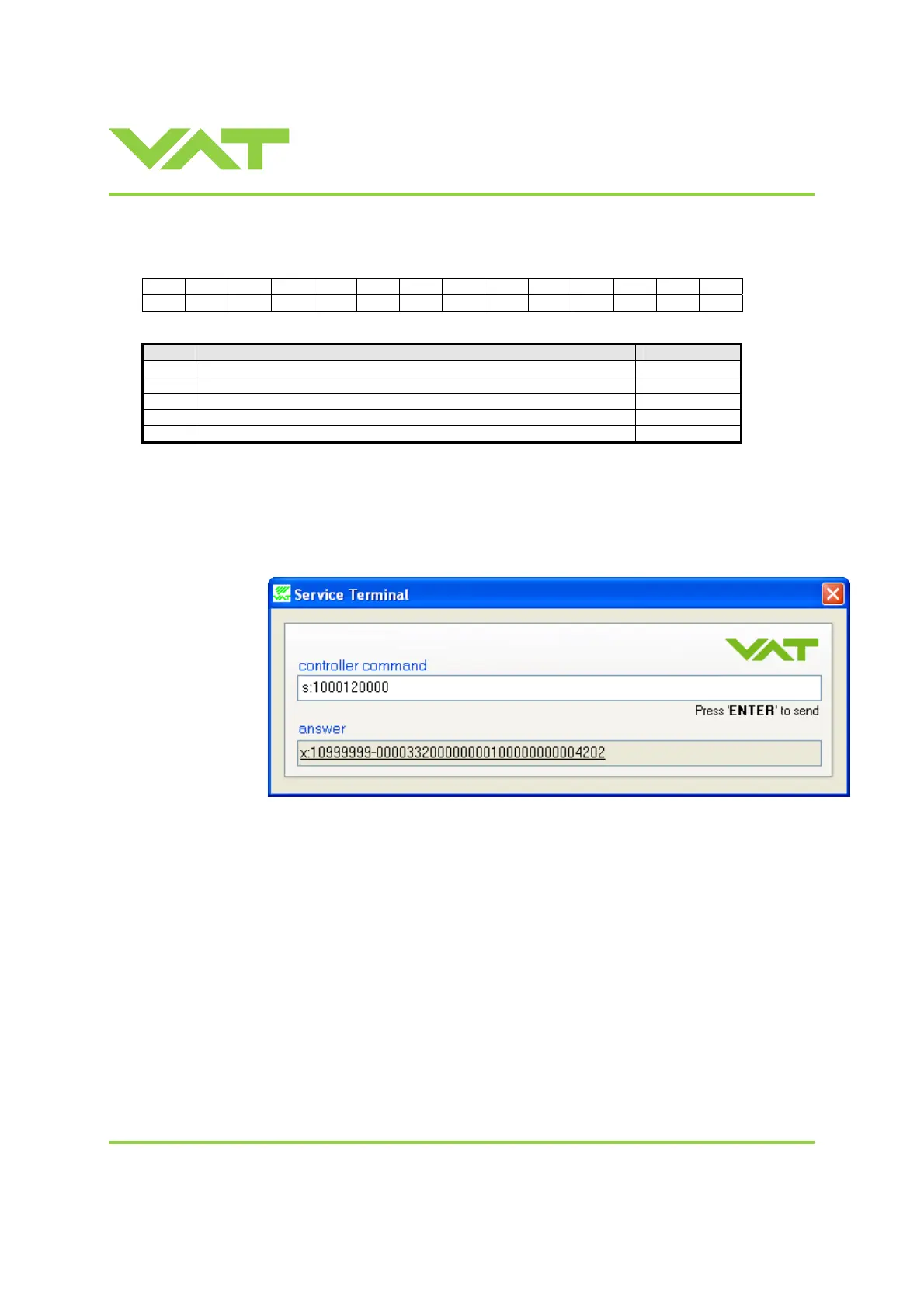

Screenshot:
