VECTRIX VX-2 SERVICE MANUAL
Version 1.0/July 2011
VECTRIX, LLC
SECTION B-17: REAR BRAKE MASTER CYLINDER/LINE/CALIPER
Preparations:
Disassemble Left Foot Rest see Section B-14
Disassemble Rear Suspension see Section B-18
Note: To replace the Rear Brake Rotor see Motor Replacement Procedure C-16

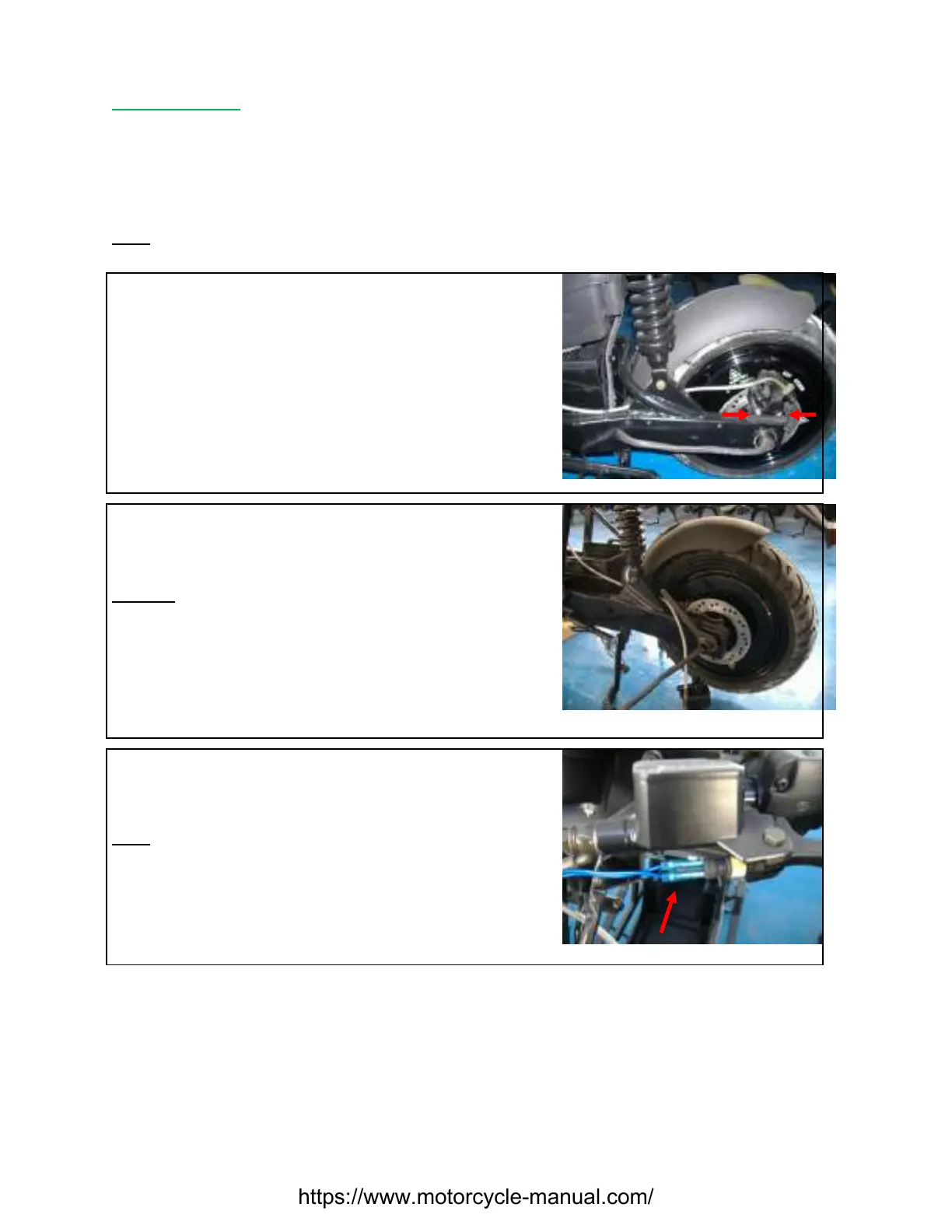

Unscrew the two inner hex bolts by using an Allen key
6mm
Disassemble the rear brake
Now it is possible to exchange the brake pads
Remark:
It is not necessary to disassemble the side cover of the
rear fork as seen in the picture
Remove the two connectors from the brake switch
Remove all cable ties for cable and brake hose
Note: Make sure to route the replacement brake hose
along the same path as the original brake hose
