Vectrix VX-2 - Rear Swing Arm;Motor Assembly

VECTRIX VX-2 SERVICE MANUAL
Version 1.0/July 2011
VECTRIX, LLC
SECTION B-19: REAR SWING ARM/MOTOR ASSEMBLY
Preparations:
Disassemble Side Cover/Swing Arm Cover see Section B-14
Disassemble Motor see Section C-15

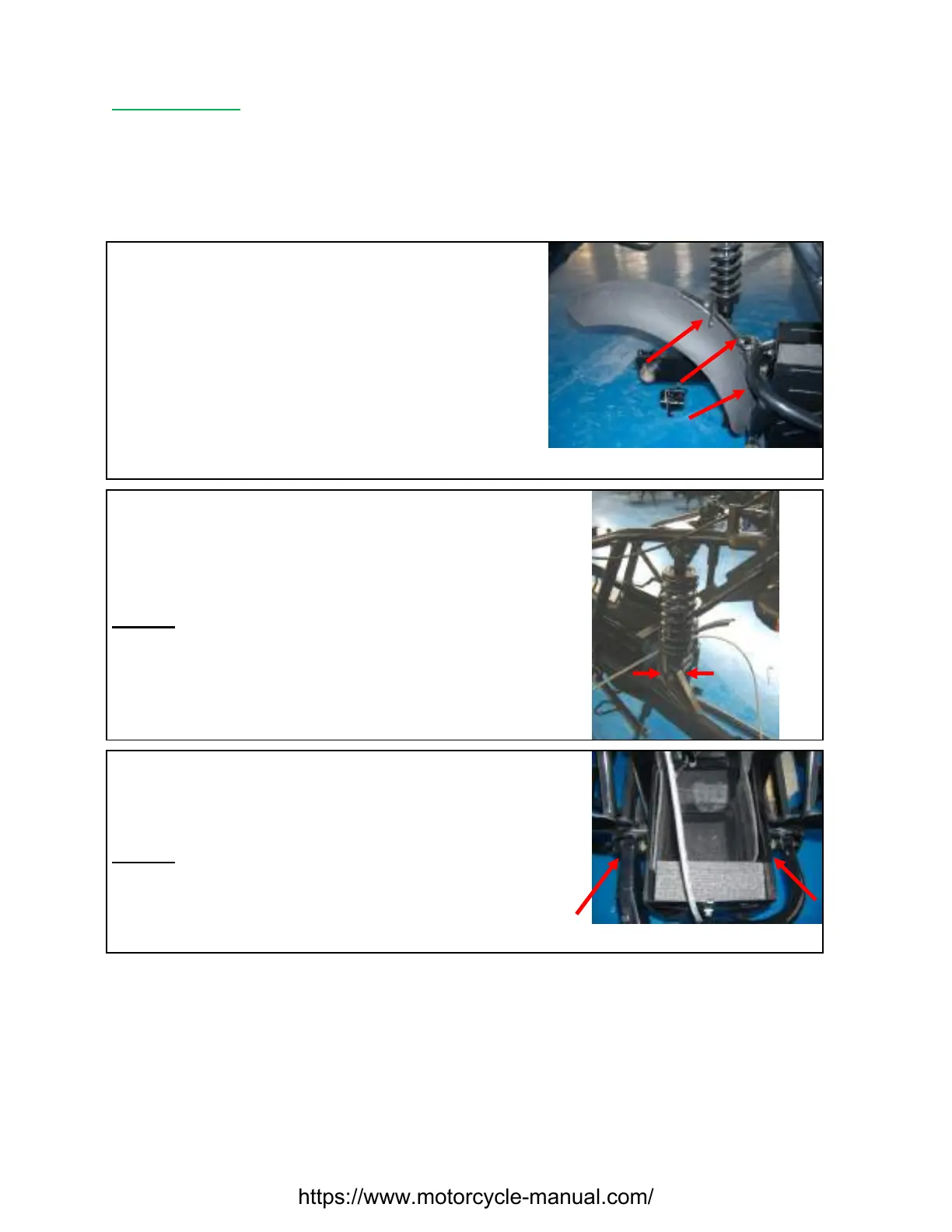

Unscrew 3 inner hex cap bolts and nuts by using an
Allen key 4mm and an open wrench 10mm
Remove the rear Mud Guard
Unscrew the nut #1 by using a open wrench 10mm
Unscrew the bolt #2 by using a open wrench 10mm and
remove the bolt
Remark:
It is not necessary to remove any covers or battery
Unscrew the two nuts and hexagon bolts by using 18mm
and 19mm open wrench and remove the rear suspension
Remark:
It is not necessary to remove the batteries
Tighten the bolts and the nut according to the required torque, see Section F-4
1
2
