2 INSTALLATION OF PAYMENT TERMINAL AND PINPAD
2.1 Components supplied
If the payment terminal and PINpad were delivered as a plug & play pack, you should have received the
following components.

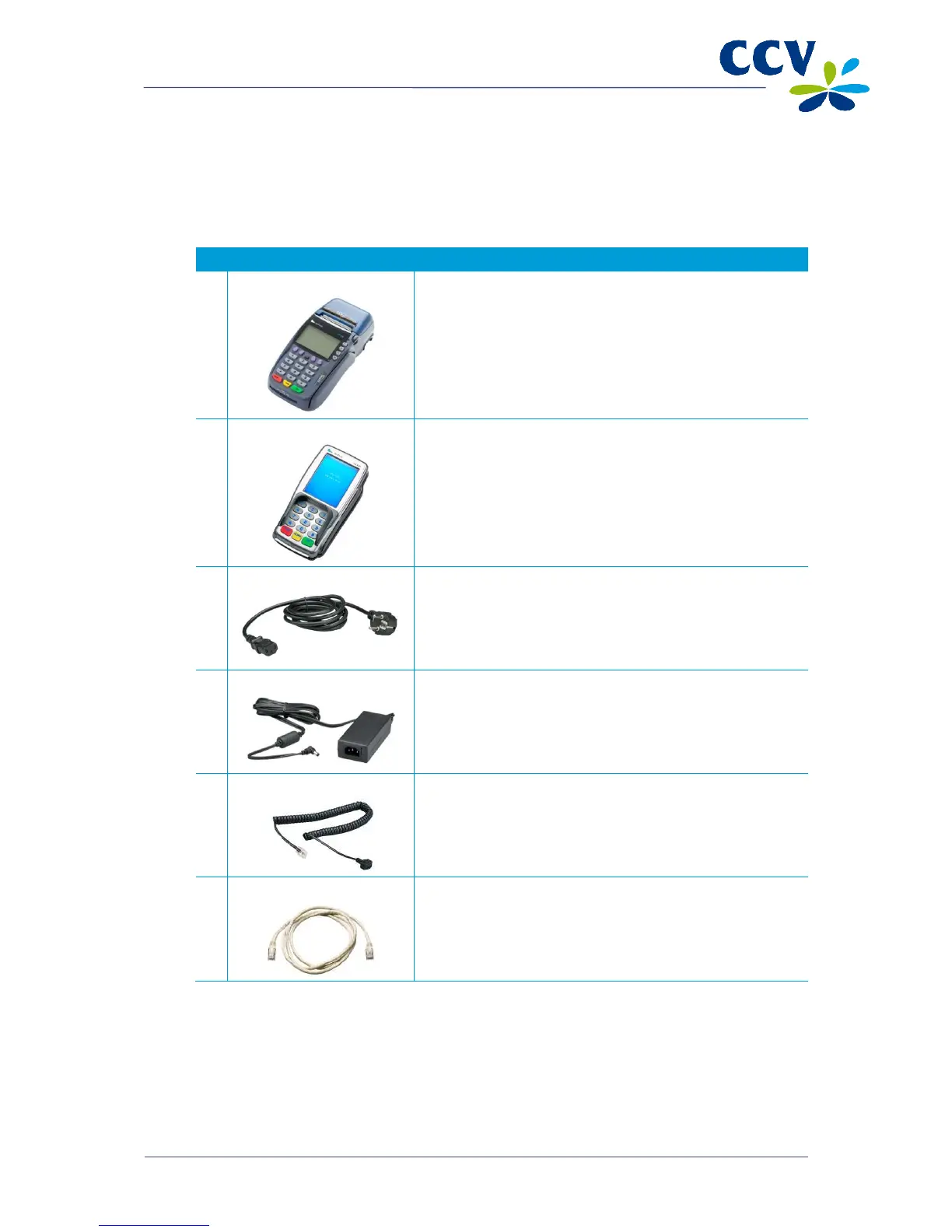

Overview of components supplied
1 Vx570 payment terminal
The cashier unit operated by you (the cashier).
2 VX 820 PINpad
The customer unit operated by the card holder.
3 Power supply cable
You can plug the power supply into a wall socket (230 Volt)
using the power supply cable.
4 Power supply
Connect the power supply to the power supply cable and the
Vx570 payment terminal.
5 PINpad cable
Use the PINpad cable to interconnect the Vx570 payment
terminal and the VX 820 PINpad.
6 Ethernet cable
Plug the Ethernet cable into the Vx570 payment terminal and a
communication module (Ethernet modem or Ethernet router).
Refer to section 2.3 for more information about connecting the equipment.
