3.2 Keypad of payment terminal and PINpad

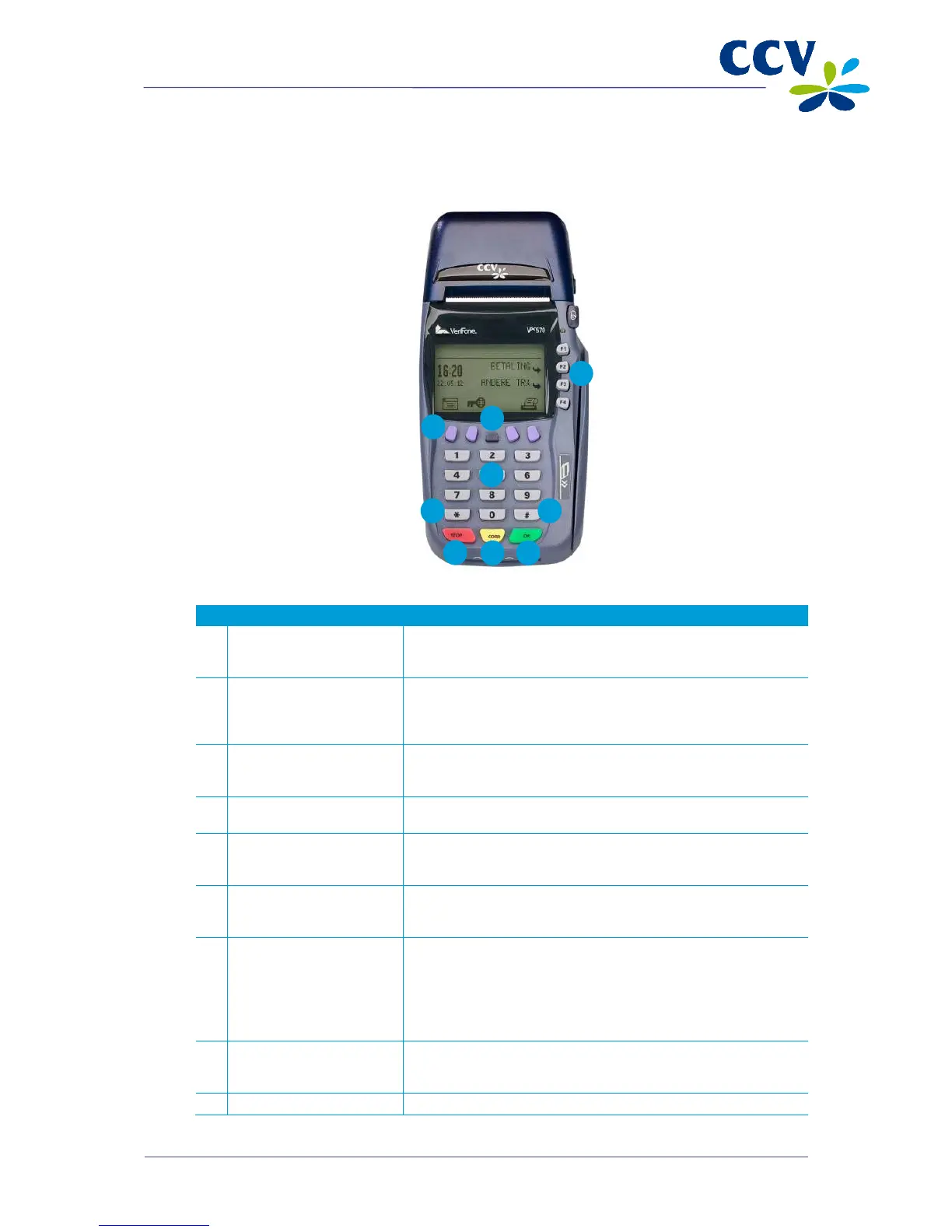

Keypad of Vx570 payment terminal
1 Grey function keys Four grey function keys are located to the right of the payment
terminal screen. You can press these keys to select the menu
options displayed on the screen.
2 Purple function keys Four purple function keys are located below the payment terminal
screen. Function symbols can be displayed above these keys.
Press the purple function key below a symbol to select the
corresponding function.
3 <ALPHA> key If you press the grey <ALPHA> key, you can use the numeric keys
to enter letters and punctuation marks. Refer to subsection 3.3.1
for more information about entering letters and punctuation marks.
4 Numeric keys You can use the numeric keys to enter numbers, for instance to
enter a transaction amount.
5 Asterisk key <*> You can use this key to enter a number of pre-programmed
punctuation marks. Refer to subsection 3.3.1 for more information
about entering punctuation marks.
6 Hash key <#> You can use this key to enter a number of pre-programmed
punctuation marks. Refer to subsection 3.3.1 for more information
about entering punctuation marks.
7 <STOP> key Press the red <STOP> key to cancel an action. For instance, you
can press <STOP> to cancel a transaction.
If you are in the payment terminal menu, you can also press
<STOP> to go back to a previous menu. Press <STOP> several
times to return to the start screen.
8 <CORR> key Press the yellow <CORR> key to correct numbers, letters or
punctuation marks after entry. You can also use this key to
change the settings of your payment terminal.
9 <OK> key Press the green <OK> key to confirm entered data or an action.
