3 WORKING WITH THE PAYMENT TERMINAL AND PINPAD
3.1 Overview of payment terminal and PINpad
The Vx570 payment terminal is the cashier unit and is operated by you (the cashier).

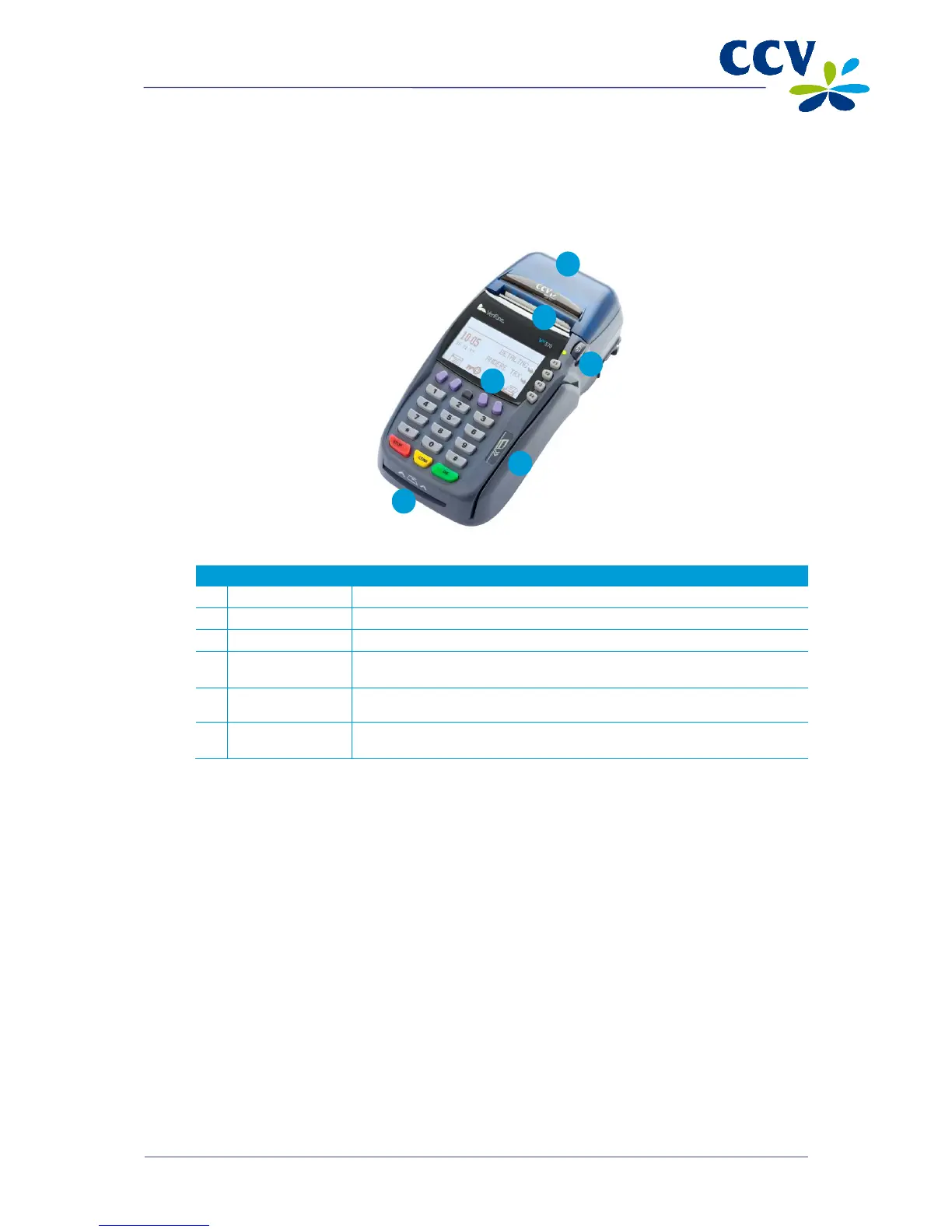

Components of Vx570 payment terminal
1 Printer cover Cover of thermal printer.
2 Printer The thermal printer prints receipts and reports.
3 Release button Press this button to release the printer cover.
4 Screen The screen displays messages when actions are performed on the
payment terminal.
5 Chip card reader The chip card reader is not operational. The card holder must insert the
payment card in the VX 820 PINpad.
6 Magnetic card
reader
The magnetic card reader is not operational. The card holder must swipe
the payment card through the VX 820 PINpad.
6
5
3
4
2
1
