COMMUNICATION INTERFACES
USB
32 E355/E265 USER AND BEST PRACTICES GUIDE
iPad 2 Frame
Key Points:
• This frame is with 30-pin iPad 2 connector.
• e355 is an accessory to iPad 2 device.
• As an accessory, e355 cannot wake-up iPad 2.
• iAP1 protocol is used over USB host interface.
• iAP1 charging command is sent from e355 to iPad 2 to charge at 2.1 A when
external AC power is connected to frame.
• No barcode trigger buttons on iPad 2 frame.

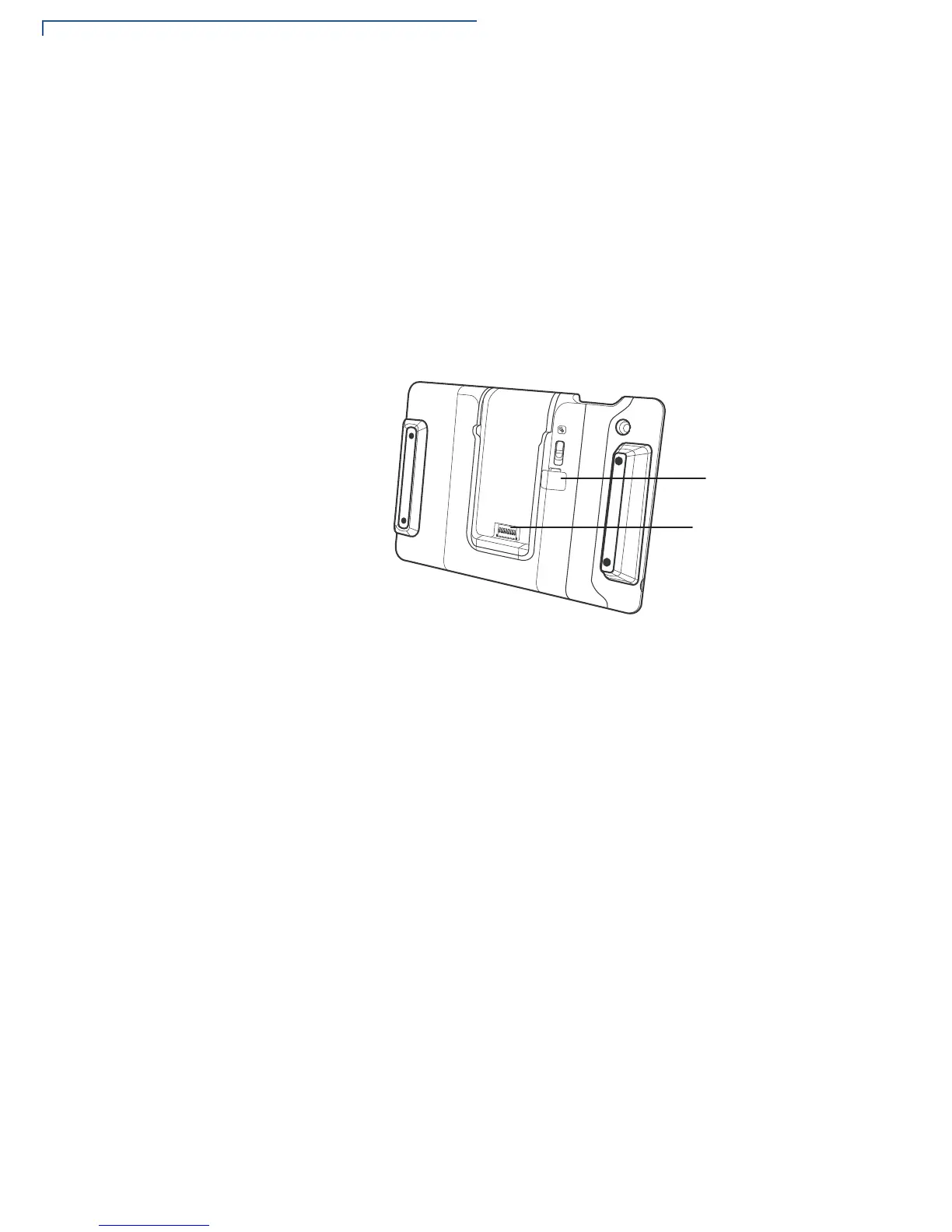

Figure 9 Frame for iPad 2
iPod 6 Frame
Key Points:
• This frame is with an 8-pin Lightning connector.
• e355 is an accessory to iPod 6 device.
• As an accessory, e355 cannot wake-up iPod 6.
• iAP2 protocol is used over USB host interface.
• iAP2 charging command is sent from e355 to iPod 6 to charge at 1 A when
external AC power is connected to frame.
• Barcode trigger buttons are available on iPod 6 frame.
• Barcode trigger buttons on the frame can be used to enable pass-through
mode.
Micro-USB Port
Frame Connector
