TERMINAL SETUP
Installing/Replacing MSAM Cards
O
MNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE 23

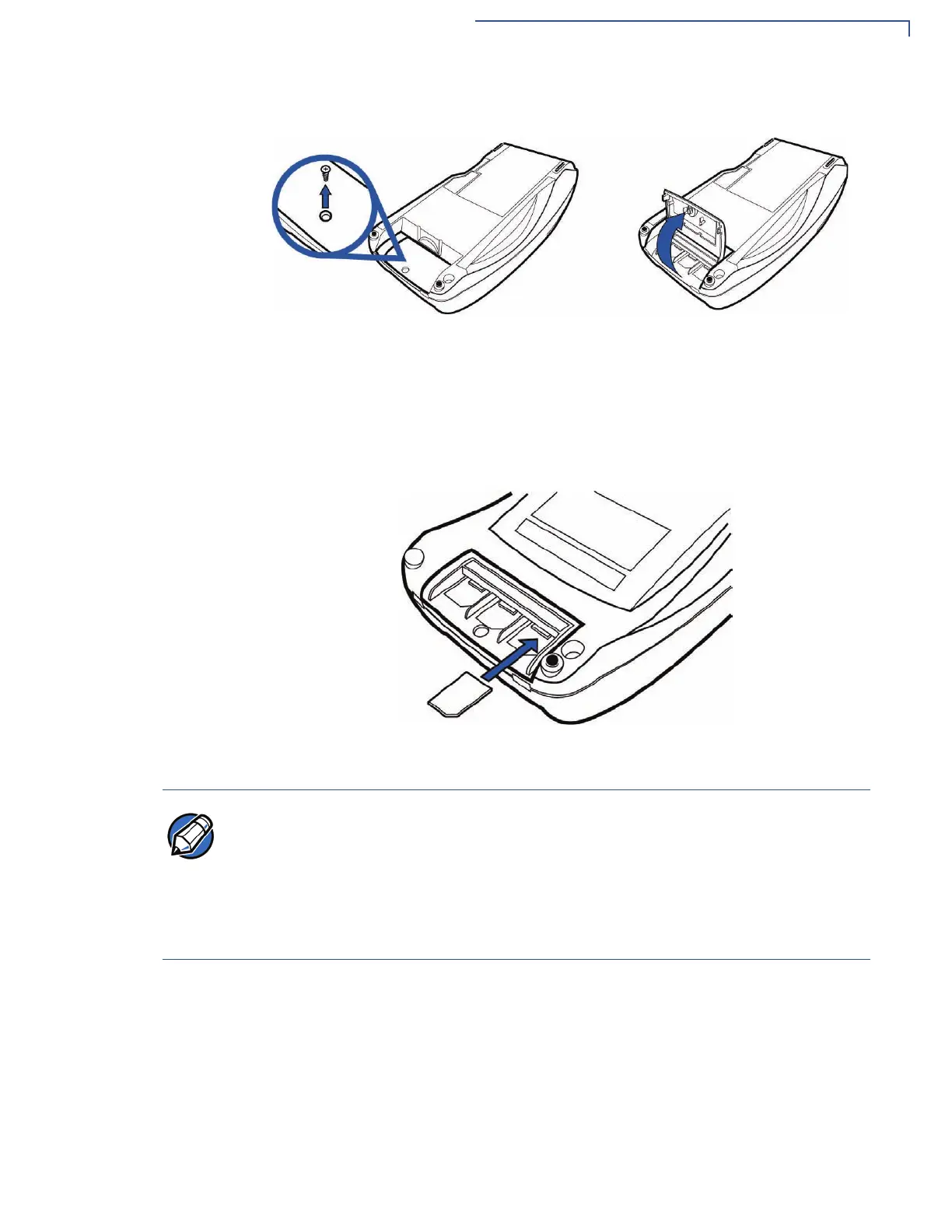

Figure 14 Opening V
x
610 MSAM Compartment Door
4 Remove any previously installed MSAM card by sliding the card from the
MSAM cardholder.
5 Install an MSAM card by aligning the card and carefully sliding it within the
guides on the cover until it is fully inserted (see Figure 15).
Figure 15 Installing an MSAM Card
6 Replace the MSAM compartment door and reinstall the screw.
NOTE
Before inserting the MSAM card, position it as shown in Figure 15, with the card’s
gold contacts facing the smart car reader end of the terminal. The cardholder
connector base has a set of contacts and a notch on one corner to ensure the
MSAM card is positioned correctly. The MSAM card has a notch on one corner to
ensure that it fits into the connector base in only one way. The MSAM
compartment door will not close properly if the MSAM cards are installed
incorrectly.
