VeriFone VX 520 Reference Guide

PERFORMING DOWNLOADS
Download from a USB Flash Drive
142 VX 520 REFERENCE GUIDE
After creating a CONFIG.SYS downloadable file, move the created file to the
proper folder. Then, create a new .zip file named VeriFone.zip on your root
drive and move all the required GID folders into the .zip file. Make sure that
Save Full Path Info is selected. Transfer the VeriFone.zip file into a flash
drive and you are ready start downloading the applications into a terminal.

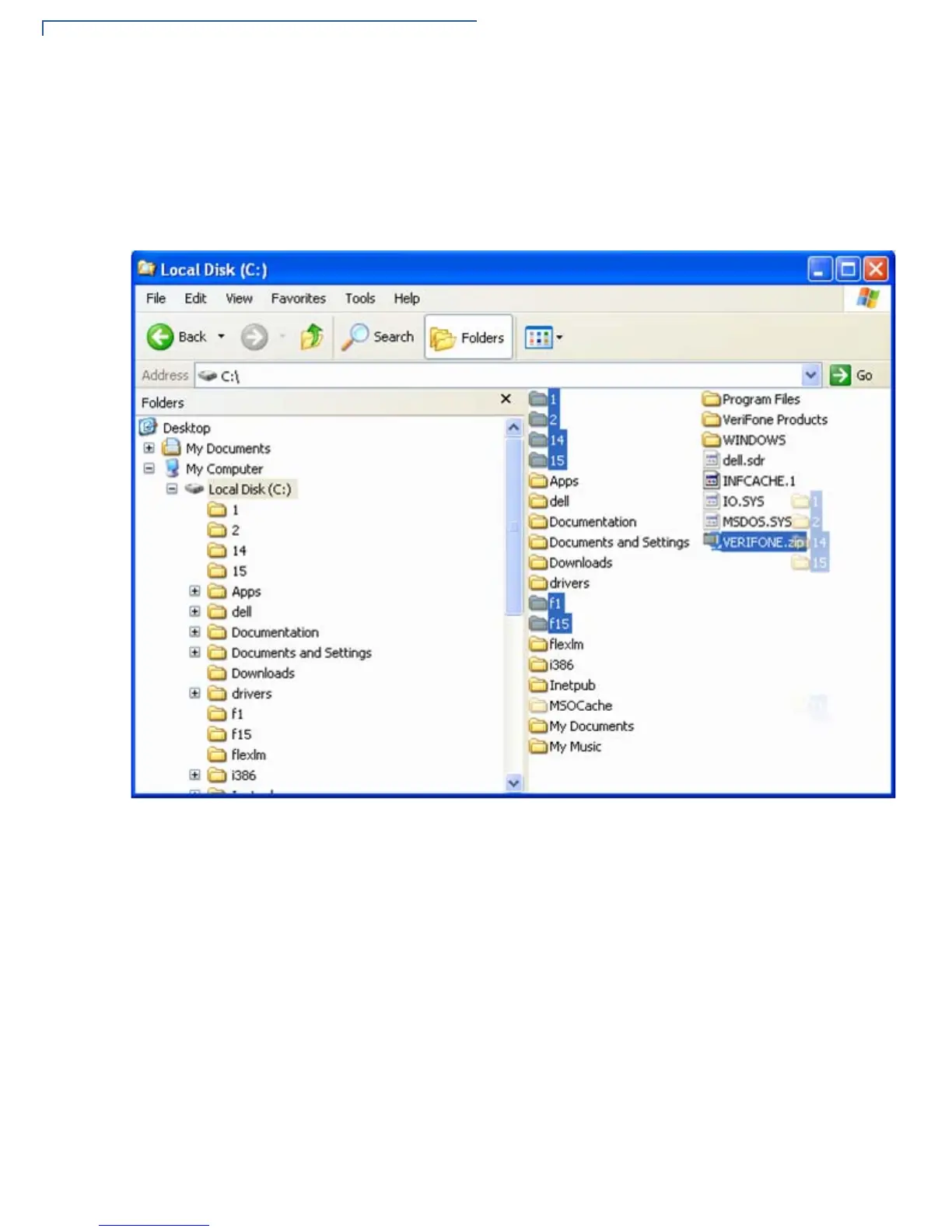

Figure 38 Moving GID files to VERIFONE.zip file

VeriFone VX 520 Specifications

General

Processor	400 MHz ARM11
Card Readers	Magnetic stripe, EMV chip
Operating Temperature	0°C to 50°C (32°F to 122°F)
Display	128x64 pixel backlit LCD
Connectivity	Dial-up, Ethernet
Contactless	Optional
Printer	18 lines per second
Security	PCI PTS 3.0 approved
Weight	500g
Dimensions	203 mm x 87 mm x 77 mm (8.0 in x 3.4 in x 3.0 in)
