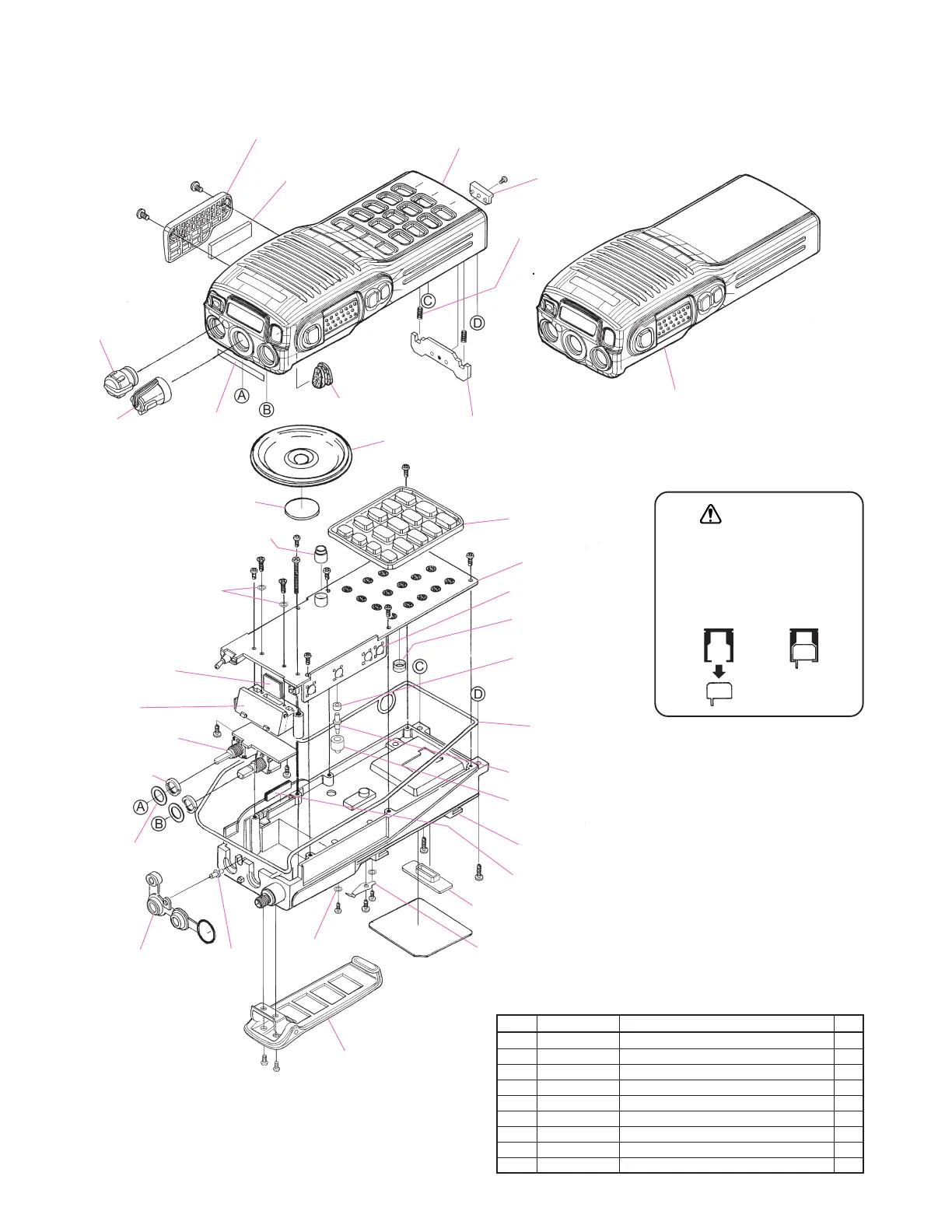

Exploded View & Miscellaneous Parts
Non-designated parts are available only
as part of a designated assembly.



U07230107 PAN HEAD SCREW M2X3B #1 1



U9900094 TAPTITE SCREW M2X5NI#2 4



U44104002 TAPTITE SCREW M2X4NI 7



U20206002 BINDING HEAD SCREW M2.6X6NI 2



U00119006 PAN HEAD SCREW M2X18AU 1



U9900117 TAPTITE SCREW M2X4NI #2 1



U07240202 PAN HEAD SCREW M2X4NI#2 2



U20305007 BINDING HEAD SCREW M3X5B 2



U02206007 SEMS SCREW SM2.6X6B 2
REF.
VXSTD P/N Description Qty.
M4090153
SPEAKER
CP6953004
FRONT CASE ASS'Y (16KEY)
CP6953003
FRONT CASE ASS'Y (KEYLESS)
RA0306900 (x2 pcs)
COIL SPRING
RA0297300
HOOK
RA0297000
LATCH PLATE
RA0343500
RUBBER KNOB
RA030720A
KNOB
RA030770B
KNOB
RA0297700
LIGHT GUIDE
MAIN UNIT
SW UNIT
VR UNIT
CP6954001
REAR CASE ASS'Y
(W/ TERMINAL PLATE(-))
RA029800A
RUBBER PACKING
RA029680A
RA0350400 (Lot. 8~)
RUBBER PACKING
RA0295300
RUBBER KNOB
(16KEY ONLY)
RA0297600
EXT CAP
RA0215400
SHEET
RA0298300
INTER CONNECTOR
RA0296500
LIGHT GUIDE
RA0239100
INTER CONNECTOR
R6147510 (x2 pcs)
RING NUT
DUMMY UNIT
RA0299400 (x2 pcs)
WASHER
CAUTION
The mic element must be desol-
dered and removed from the PCB
on order to reinstall its protective
rubber cover.
Therefore, be careful not to re-
move this cover unless mic ele-
ment replacement is necessary.





























































RA0318200 (x2 pcs)
WASHER (B)
RA0317000
SHEET (SP)
RA0317300
LIGHT SHEET B
RA0305100
HOLDER (+)
RA0298100
RUBBER HOLDER (+)
RA0120500
SPRING CONNECTOR
CP6955001
BELT CLIP ASS'Y
RA0140200
MIC HOLDER
RA0207800
MIC HOLDER*
*
TERMINAL PLATE(-)
U9900088
NYLON WASHER






