Vertex Standard VX-600 - SW Unit; Circuit Diagram; Parts Layout; Parts List

58

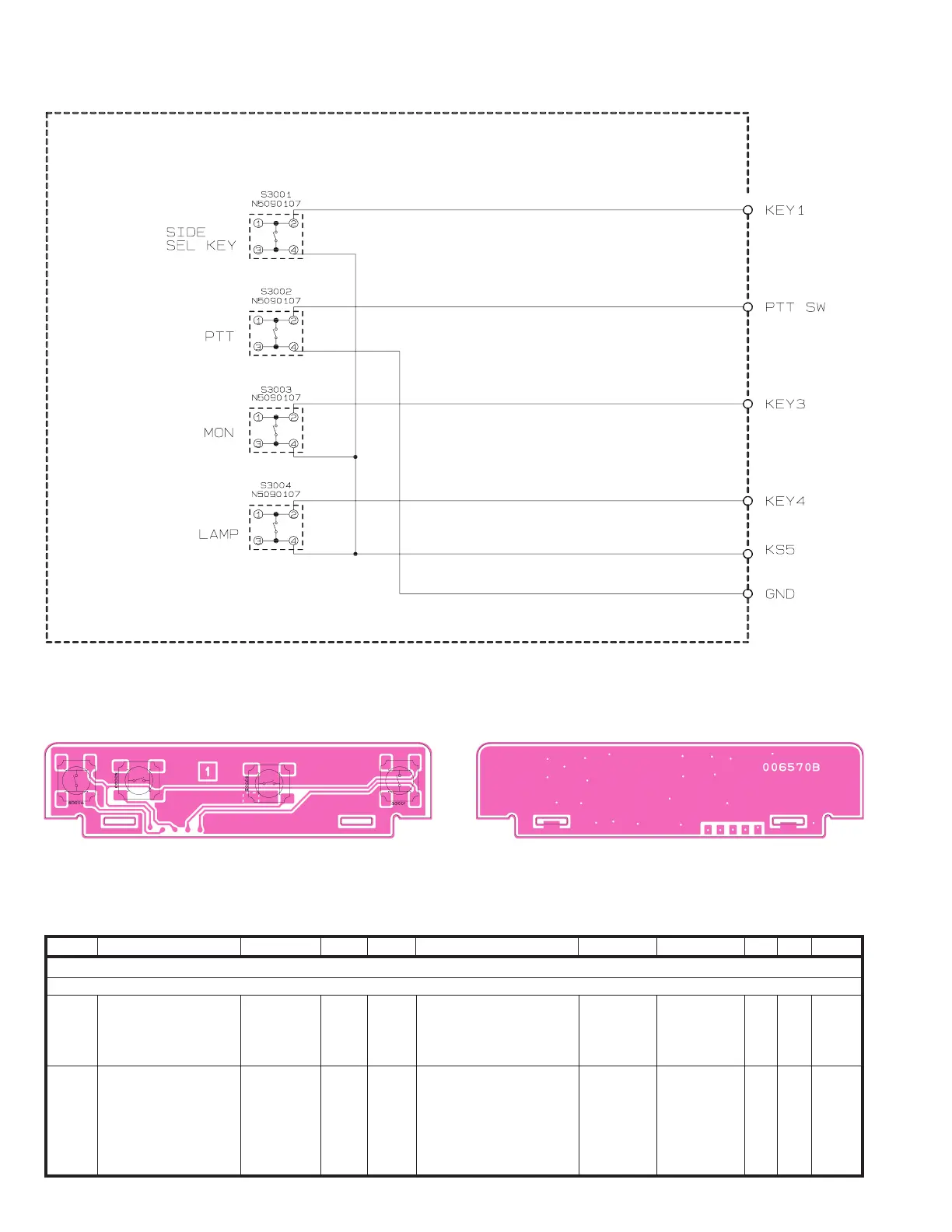

SW Unit
Circuit Diagram
Side A Side B
Parts Layout
Parts List
DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. REF. LOT. SIDE LAY ADR
PCB with Components CB1445001
Printed Circuit Board FR006570B 1-
S 3001 TACT SWITCH SOP-114HST R66-5374 N5090107 1- A
S 3002 TACT SWITCH SOP-114HST R66-5374 N5090107 1- A
S 3003 TACT SWITCH SOP-114HST R66-5374 N5090107 1- A
S 3004 TACT SWITCH SOP-114HST R66-5374 N5090107 1- A
MYLAR SHEET (PTT) RA0316400 1-
