60

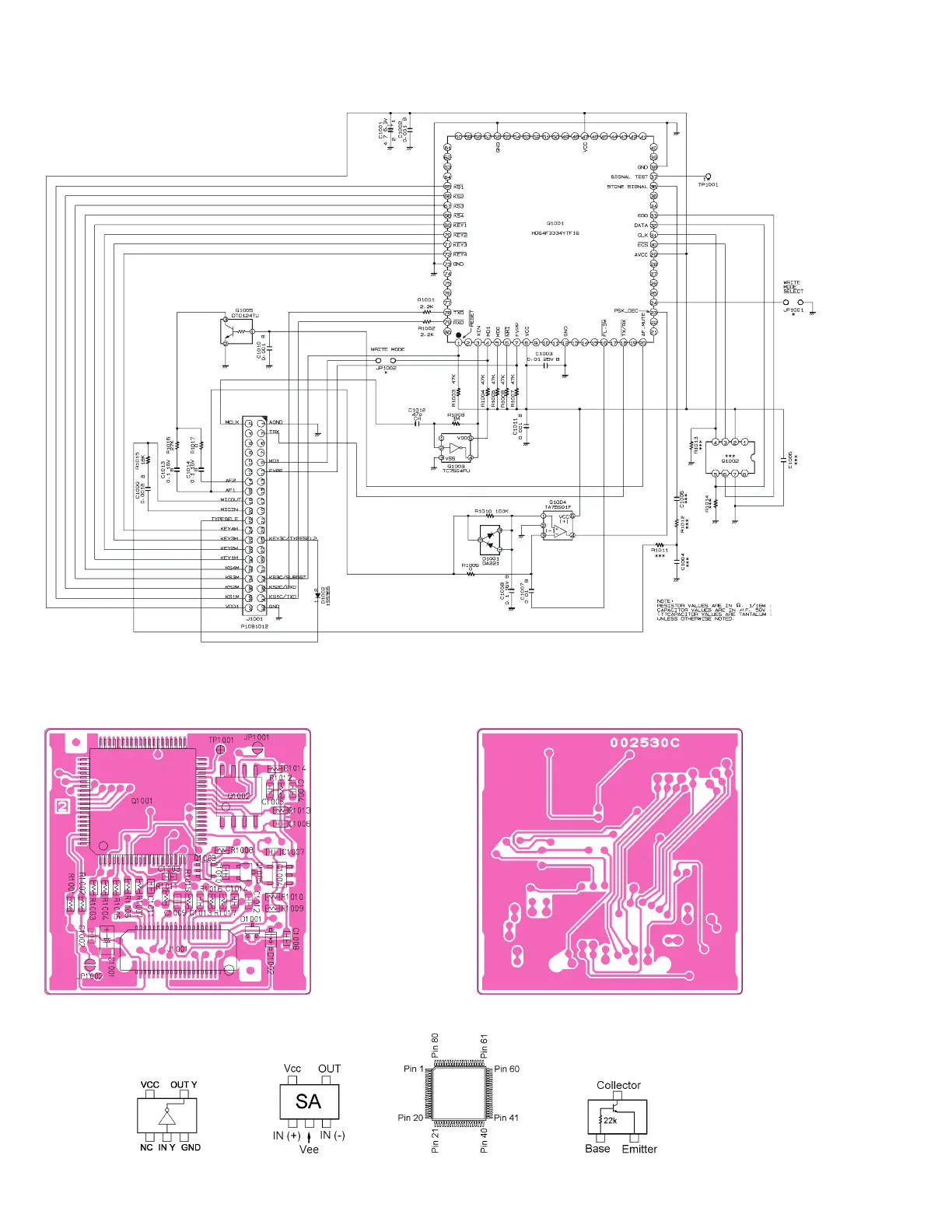

F2D-8 2-Tone Decode Unit
HD64F3334YTF16
(Q1001)
Circuit Diagram
Parts Layout
TC7S04FU (E5)
(Q1003)
DTC124TU (05)
(Q1005)
TA75S01F (SA)
(Q1004)
Side BSide A
